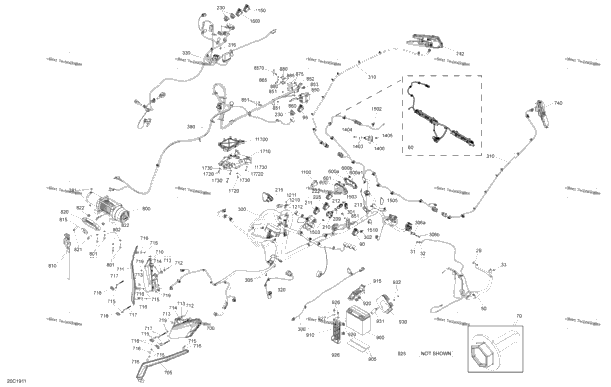

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710006022 | Starter Wiring Harness | 1 |
| 1 | 710006246 | Wiring Harness Junction | 1 |
| 4 | 250000959 | Screw PT Type K-50 X 16 | 4 |
| 1 | 710004492 | Light Switch | 1 |
| 1 | 710002052 | Switch Winch | 1 |
| 1 | 710006040 | Differential Switch | 1 |
| 1 | 710005903 | Differencial Mode Switch Package XMR | 1 |
| 1 | 710005925 | Diffrrential Mode Switch Package XRC | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 515178225 | DESS Switch, RFID | 1 |
| 1 | 710001781 | Switch DPS | 1 |
| 1 | 710004964 | Grey Key RFID | 1 |
| 1 | 710005232 | Green Key RFID | 1 |
| 1 | 710005213 | Start-Stop Button | 1 |
| 1 | 710005909 | Driving Mode Switch | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 5 | 710001999 | Plug Carling | 5 |
| 1 | 710006253 | Main Wiring Harness Includes 300 to 300a | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 5 | 250000959 | Screw PT Type K-50 X 16 | 5 |
| 1 | 710005956 | Connector Plug Includes 306 to 306b | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 2 | 278000216 | Wire Seal | 2 |
| 2 | 710006424 | Rear Wiring Harness | 2 |
| 1 | 250000959 | Screw PT Type K-50 X 16 | 1 |
| 1 | 710005291 | Cable Throttle Pedal | 1 |
| 1 | 710006201 | Front Differential Wiring Harness | 1 |
| 1 | 710006470 | Winch Cables | 1 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 1 | 710006334 | Speedometer | 1 |
| 0 | 415129349 | Lens | 0 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 710004658 | LH Low Beam Ass'y | 1 |
| 1 | 710004994 | LH Signature Beam | 1 |
| 1 | 710004659 | RH Low Beam Ass'y | 1 |
| 1 | 710004995 | RH Signature Beam | 1 |
| 2 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 | 2 |
| 4 | 710004749 | Shoulder Bushing | 4 |
| 2 | 293720053 | Grommet | 2 |
| 10 | 250000720 | Torx Screw K50 X 16 | 10 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 4 | 710005837 | Ajustment Screw | 4 |
| 4 | 710005097 | Adjustment Guide | 4 |
| 4 | 293300192 | O-Ring | 4 |
| 1 | 710004743 | LH Tail Light | 1 |
| 1 | 710004744 | RH Tail Light | 1 |
| 1 | 710005659 | Winch | 1 |
| 4 | 205082544 | Socket Head Screw M8 X 25 | 4 |
| 4 | 234181401 | Lock Washer 8 mm | 4 |
| 1 | 715003523 | Hook and Strap kit | 1 |
| 1 | 710005142 | Winch Cable Stopper | 1 |
| 1 | 715004449 | Winch Cable Guide Ass'y | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 703500947 | Solenoid | 1 |
| 6 | 232561200 | Elastic Stop Nut M6, Brass | 6 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 710006400 | Copper Busbar | 1 |
| 1 | 710006401 | Copper Busbar | 1 |
| 2 | 703500948 | Breaker 50 Amp | 2 |
| 4 | 250100071 | Hex. Flange Nut M5 | 4 |
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 2 | 293830126 | Rubber Pad | 2 |
| 1 | 710004788 | Fixation Plate | 1 |
| 1 | 710004789 | Fixation Plate | 1 |
| 3 | 705003666 | Rubber Grommet | 3 |
| 2 | 250100199 | Insert Half Hex Body M6 x 1.0 | 2 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 710005842 | Voltage Regulator | 1 |
| 1 | 710005782 | Bracket | 1 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 710006471 | Battery Cable Cap | 1 |
| 1 | 710005374 | 12V Power Outlet | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 710006479 | Front Drive Module | 1 |
| 1 | 710005807 | FDM Support | 1 |
| 5 | 250200025 | Washer M5 | 5 |
