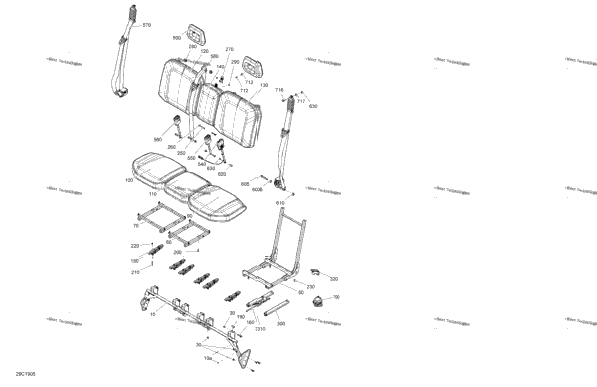

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708002636 | Seat Member Includes 10 to 10a | 1 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 | 6 |
| 1 | 708002511 | Seat Plate | 1 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 1 | 708001723 | Operator Seat Member Includes 50 to 50a | 1 |
| 1 | 708002815 | Mid Seat Member | 1 |
| 1 | 708002821 | Passenger Seat Member | 1 |
| 1 | 708002481 | LH Cushion Ass'y Package PRO | 1 |
| 1 | 708002519 | Seat Base Ass'y Package BASE | 1 |
| 1 | 708001926 | RH Cushion Ass'y Package PRO | 1 |
| 1 | 708001498 | RH Cushion Ass'y Package BASE | 1 |
| 1 | 708001928 | Central Cushion Ass'y Package PRO | 1 |
| 1 | 708001629 | Central Cushion Ass'y Package BASE | 1 |
| 1 | 708001995 | Backrest Ass'y Package PRO | 1 |
| 1 | 708001701 | Backrest Ass'y Package BASE | 1 |
| 1 | 708001930 | Backrest Ass'y Package PRO | 1 |
| 1 | 708002514 | Backrest Ass'y Package BASE | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 708001932 | Center Backrest Ass'y Package PRO | 1 |
| 1 | 708001630 | Center Backrest Ass'y Package BASE | 1 |
| 4 | 708002581 | Seat Base Pivot | 4 |
| 4 | 207684544 | Hex. Flange Screw M8 X 45 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 4 | 708001903 | Bushing | 4 |
| 12 | 250000760 | Torx Screw Truss Head K50X20 T20 | 12 |
| 4 | 207064544 | Hex. Screw M6 X 45 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 207182044 | Hex. Screw M8 X 20 | 4 |
| 2 | 250400069 | Pin | 2 |
| 2 | 269800431 | Hairpin Cotter | 2 |
| 1 | 269501487 | Latch | 1 |
| 2 | 517303756 | Grommet | 2 |
| 1 | 708000848 | LH Rail | 1 |
| 1 | 708002001 | RH Rail | 1 |
| 1 | 708002640 | Seat Stopper | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 2 | 708002853 | Headrest | 2 |
| 1 | 708002331 | Driver Buckle | 1 |
| 1 | 708002330 | Middle Buckle | 1 |
| 1 | 708002329 | Passenger Buckle | 1 |
| 2 | 708002642 | Lateral Safety Belt | 2 |
| 1 | 708002643 | Central Safety Belt | 1 |
| 2 | 207028046 | Hex. Screw M12 X 80 | 2 |
| 2 | 250200102 | Flat Washer M12 | 2 |
| 2 | 233221416 | Elastic Flange Nut M12 | 2 |
| 4 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 4 |
| 4 | 250100183 | Lock Nut Nylon 7/16 | 4 |
| 1 | 710005543 | Passenger Detection Switch | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 4 | 250200162 | Flat Washer M6.6 X 22 | 4 |
| 3 | 708000890 | Safety Belt Screw | 3 |
| 5 | 708000891 | Position Washer | 5 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 Not Shown | 2 |
| 4 | 250000717 | Torx Head Screw M6 X 16 Not Shown | 4 |
| 1 | 233221416 | Elastic Flange Nut M12 Not Shown | 1 |
| 3 | 250100183 | Lock Nut Nylon 7/16 Not Shown | 3 |
