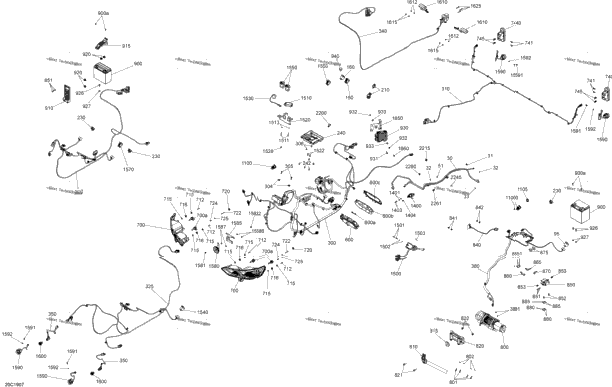

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710005512 | Negative Cable | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710002052 | Switch Winch Package PRO | 1 |
| 1 | 710005489 | Switch 2X4 | 1 |
| 1 | 710005470 | Differential Lock Switch Package BASE | 1 |
| 1 | 710005470 | Differential Lock Switch Package PRO | 1 |
| 1 | 710004198 | Ignition Switch With Keys | 1 |
| 1 | 710005739 | Key Switch Protector | 1 |
| 1 | 710001999 | Plug Carling | 1 |
| 1 | 710004741 | Housing Support | 1 |
| 5 | 250000959 | Screw PT Type K-50 X 16 | 5 |
| 1 | 710006159 | Wiring Harness Main | 1 |
| 1 | 710005760 | DPS Connector Cap Package BASE | 1 |
| 2 | 250100198 | Panel Nut M6 X 1.0 | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
| 1 | 710005544 | Rear Harness Includes 310 to 310v | 1 |
| 1 | 710006158 | Wiring Harness Includes 321 to 321bt | 1 |
| 1 | 710005546 | Flasher Harness Includes 325 to 325a | 1 |
| 1 | 710005713 | Switch's Connector | 1 |
| 1 | 710006034 | Trailer Harness | 1 |
| 2 | 710005676 | Position Light Harness | 2 |
| 1 | 710004465 | Winch Harness Package PRO | 1 |
| 2 | 232561434 | Elastic Stop Nut M6 Package PRO | 2 |
| 1 | 710005719 | Speedometer Includes 600 to 600c | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 415129348 | Gauge Ring | 1 |
| 1 | 710005729 | LH Beam Ass'y Includes 700 to 700a | 1 |
| 1 | 710005730 | RH Beam Ass'y Includes 710 to 710a | 1 |
| 2 | 219800149 | Halogen Bulb H8 12V 35W | 2 |
| 4 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 | 4 |
| 8 | 710004749 | Shoulder Bushing | 8 |
| 4 | 293720053 | Grommet | 4 |
| 2 | 572106600 | Handle | 2 |
| 2 | 250000718 | Hex. Screw K40 X 45 | 2 |
| 2 | 517168600 | Spring | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 710004257 | Tail Light | 2 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 4 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 1 | 710005731 | Winch Package PRO | 1 |
| 4 | 205083044 | Socket Head Screw M8 X 30 Package PRO | 4 |
| 4 | 234181401 | Lock Washer 8 mm Package PRO | 4 |
| 1 | 715003523 | Hook and Strap kit Package PRO | 1 |
| 1 | 710005142 | Winch Cable Stopper Package PRO | 1 |
| 1 | 710004822 | Winch Cable Guide Package PRO | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 Package PRO | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 Package PRO | 2 |
| 1 | 710004823 | Winch Remote Connector Package PRO | 1 |
| 2 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip Package PRO | 2 |
| 2 | 250000958 | Panel Nut M5 X 0.8 Package PRO | 2 |
| 1 | 703500947 | Solenoid Package PRO | 1 |
| 7 | 232561200 | Elastic Stop Nut M6, Brass | 7 |
| 1 | 710004772 | Power Bar Package PRO | 1 |
| 1 | 710004872 | Power Bar Package PRO | 1 |
| 1 | 710004873 | Power Bar Package PRO | 1 |
| 2 | 703500948 | Breaker 50 Amp Package PRO | 2 |
| 4 | 250100071 | Hex. Flange Nut M5 Package PRO | 4 |
| 4 | 234161601 | Lock Washer Helical M6 Package PRO | 4 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Package BASE | 1 |
| 1 | 515176151 | Battery Package PRO | 1 |
| 1 | 250000282 | Battery Bolt Kit Package BASE | 1 |
| 1 | 515176081 | Battery Bolt Kit Package PRO | 1 |
| 1 | 710004788 | Fixation Plate | 1 |
| 1 | 710004789 | Fixation Plate | 1 |
| 4 | 705003666 | Rubber Grommet | 4 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 710005842 | Voltage Regulator | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 708001827 | Rubber Stopper | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710004993 | Cap Package BASE | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 1 |
| 1 | 710001721 | Turn Signal | 1 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 | 2 |
| 2 | 234151401 | Lock Washer 5 mm | 2 |
| 1 | 704902614 | Flasher Decal | 1 |
| 1 | 710005436 | SKM Module | 1 |
| 2 | 207053544 | Hex. Screw M5 X 35 | 2 |
| 2 | 234051410 | Flat Washer M5 | 2 |
| 1 | 710005475 | SKM Holder | 1 |
| 2 | 207652044 | Hex.Flange Screw M5 X 20 | 2 |
| 1 | 204470913 | Buzzer Ass'y | 1 |
| 1 | 710002076 | Switch Hazard | 1 |
| 2 | 710003239 | Flasher Unit | 2 |
| 1 | 710005478 | Brake Fluid Indicator | 1 |
| 1 | 710005479 | Trailer Flasher Indicator | 1 |
| 1 | 710004791 | Horn | 1 |
| 1 | 250100199 | Insert Half Hex Body M6 x 1.0 | 1 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 1 |
| 1 | 710005495 | Horn Bracket | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 4 | 710002964 | Flasher | 4 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 4 | 234061410 | Flat Washer 6 mm | 4 |
| 2 | 710001726 | Day Light | 2 |
| 2 | 710002055 | License Light | 2 |
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 4 | 232061600 | Hex. Nut M6 | 4 |
| 3 | 208653560 | Phillips Screw M5 X 35 | 3 |
| 1 | 710005620 | Housing Holder | 1 |
| 1 | 207651646 | Hex. Flange Screw M5 X 16 | 1 |
| 1 | 210261650 | Hex. Flange Screw M6 X 16 | 1 |
