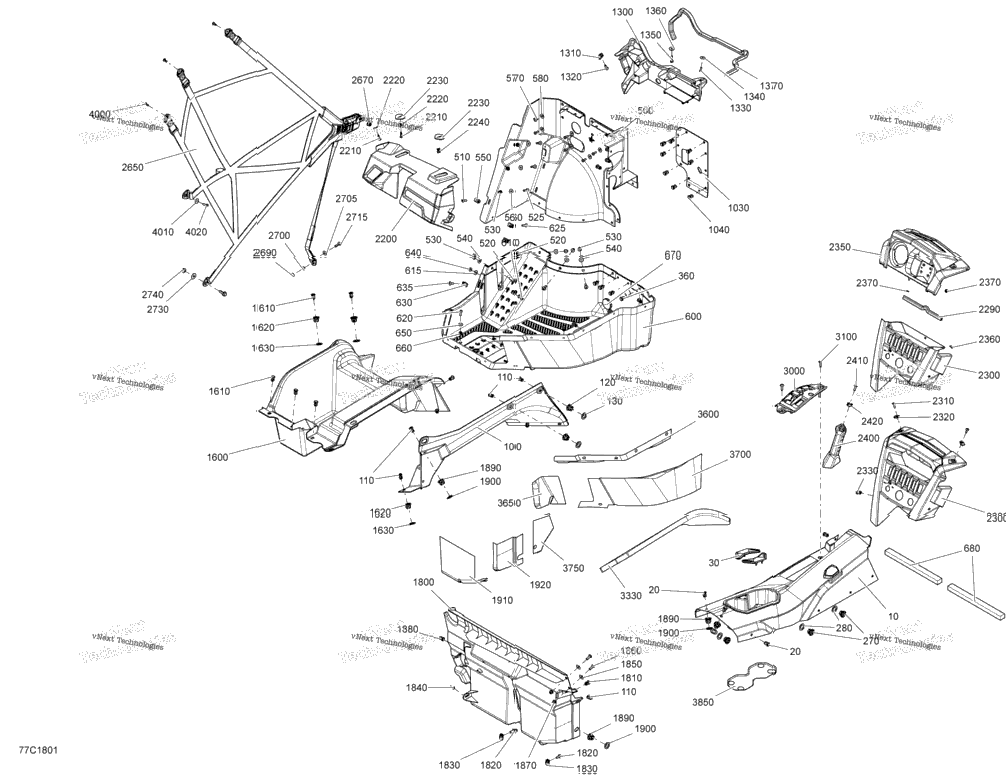

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715004113 | Console Ass'y | 1 |
| 8 | 293150089 | Tuflok Plastic Rivet | 8 |
| 2 | 707900036 | Cup Retainer | 2 |
| 1 | 707900001 | LH Side Console | 1 |
| 9 | 293150089 | Tuflok Plastic Rivet | 9 |
| 3 | 707900133 | Insert | 3 |
| 3 | 503189273 | Washer | 3 |
| 2 | 707900133 | Insert | 2 |
| 2 | 503189273 | Washer | 2 |
| 7 | 293150089 | Tuflok Plastic Rivet | 7 |
| 1 | 707900181 | LH Front Floor | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 4 | 250000712 | Torx Screw M6 X 20 | 4 |
| 3 | 250000758 | Torx Screw M6 X 25 | 3 |
| 7 | 233261494 | Hex. Elastic Flange Nut M6 | 7 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
| 6 | 250000720 | Torx Screw K50 X 16 | 6 |
| 6 | 234062410 | Flat Washer 6 mm | 6 |
| 1 | 707900022 | LH Lower Floor | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 3 | 250000957 | Extruded Panel Nut M6 | 3 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 293450274 | Insert | ||
| 1 | 293250242 | Rubber Cover | 1 |
| 219704380 | SEAL-TRAY 300MM LONG | ||
| 1 | 707900108 | Deflector Package STD | 1 |
| 1 | 707900192 | Deflector Package XT, Hunter | 1 |
| 1 | 707900192 | Deflector Package DPS, LTD | 1 |
| 11 | 293150089 | Tuflok Plastic Rivet | 11 |
| 1 | 707900029 | SUPPORT_PANEL LH | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 1 | 224061201 | Flat Washer | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 715002356 | LH Under Seat Plate Kit Engine 800 EFI | 1 |
| 1 | 707900218 | LH Under Seat Plate Engine 1000R EFI | 1 |
| 7 | 293150089 | Tuflok Plastic Rivet Engine 800 EFI | 7 |
| 6 | 293150089 | Tuflok Plastic Rivet Engine 1000R EFI | 6 |
| 4 | 707900133 | Insert | 4 |
| 4 | 503189273 | Washer | 4 |
| 1 | 707900164 | LH Rear Deflector | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 2 | 250200040 | Flat Washer | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 2 | 705003841 | Support Plate | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim Package LTD | 1 |
| 1 | 715002178 | Central Dashboard Ass'y All Models Except Package LTD | 1 |
| 1 | 715002187 | Central Dashboard Ass'y Package LTD | 1 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 2 | 250000958 | Panel Nut M5 X 0.8 | 2 |
| 1 | 707900066 | Gauge Support Package LTD | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 Package LTD | 1 |
| 3 | 732610072 | Push Nut Package LTD | 3 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900237 | Front LH Safety Net Includes 2650 to 2650a | 1 |
| 1 | 715900398 | Buckle | 1 |
| 1 | 707900238 | Front RH Safety Net Includes 2660 to 2660a | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 250000758 | Torx Screw M6 X 25 | 1 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 707900070 | Lever Indicator | 1 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 707900621 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900149 | Heat Sheet | 1 |
| 1 | 707900150 | Heat Sheet | 1 |
| 1 | 707900151 | Heat Sheet | 1 |
| 1 | 707900146 | Heat Sheet | 1 |
| 1 | 707900145 | Heat Sheet | 1 |
| 1 | 707900190 | Heat Sheet | 1 |
| 1 | 707900191 | Heat Sheet | 1 |
| 14 | 250000742 | Torx Screw M5 X 14 | 14 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
