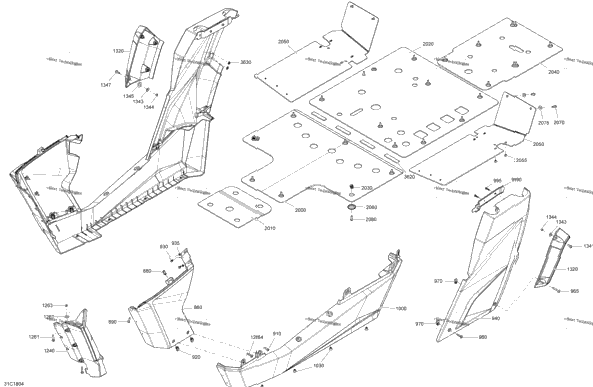

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705011654 | Painted Midnight Blue Left Front Panel Midnight Blue Models | 1 |
| 1 | 705011655 | Painted Midnight BlueRight Front Panel Midnight Blue Models | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 Package STD, DPS | 2 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 1 | 705011724 | Painted Midnight Blue Left Rear Panel Midnight Blue Models | 1 |
| 1 | 705011725 | Painted Midnight Blue Right Rear Panel Midnight Blue Models | 1 |
| 2 | 250000843 | Torx Truss Screw M6 X 30 | 2 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 3 | 250000957 | Extruded Panel Nut M6 | 3 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 1 | 705006991 | LH Lateral Middle Panel Package STD, DPS | 1 |
| 1 | 705006993 | LH Middle Side Pannel Package XT, LTD | 1 |
| 1 | 705006993 | LH Middle Side Pannel Package Hunter | 1 |
| 1 | 705006992 | RH Lateral Middle Panel Package STD, DPS | 1 |
| 1 | 705006994 | RH Middle Side Pannel Package XT, LTD | 1 |
| 1 | 705006994 | RH Middle Side Pannel Package Hunter | 1 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package Hunter | 1 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XT, LTD | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XT, LTD | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package Hunter | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 10 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package Hunter | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package Hunter | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package Hunter | 10 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package Hunter | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package Hunter | 1 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package Hunter | 2 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 2 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package Hunter | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT, LTD | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package Hunter | 1 |
| 6 | 250000712 | Torx Screw M6 X 20 Package Hunter | 6 |
| 6 | 250000712 | Torx Screw M6 X 20 Package XT, LTD | 6 |
| 7 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 7 |
| 7 | 234062670 | Stainless Steel Flat Washer Package Hunter | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package Hunter | 7 |
| 1 | 250200086 | Flat Washer Package Hunter | 1 |
| 1 | 250200086 | Flat Washer Package XT, LTD | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 Package XT, LTD | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 Package Hunter | 1 |
| 1 | 705007055 | Middle Protector Plate Package XT, LTD | 1 |
| 1 | 715001996 | Middle Front Protector Plate Package Hunter | 1 |
| 1 | 705007055 | Middle Protector Plate Package STD, DPS | 1 |
| 1 | 705007056 | Rear Protector Plate Package XT, LTD | 1 |
| 1 | 715001997 | Middle Rear Protector Plate Package Hunter | 1 |
| 1 | 705007056 | Rear Protector Plate Package STD, DPS | 1 |
| 2 | 250000957 | Extruded Panel Nut M6 Package XT, LTD | 2 |
| 4 | 250000957 | Extruded Panel Nut M6 Package Hunter | 4 |
| 2 | 250000957 | Extruded Panel Nut M6 Package STD, DPS | 2 |
| 1 | 705007227 | Rear Protector Plate Package XT, LTD | 1 |
| 1 | 715000694 | Rear Protector Plate Package Hunter | 1 |
| 1 | 705007227 | Rear Protector Plate Package STD, DPS | 1 |
| 2 | 705007038 | RH Lateral Skid Plate Package XT, LTD | 2 |
| 2 | 705007038 | RH Lateral Skid Plate Package STD, DPS | 2 |
| 14 | 293150104 | Pop Rivet 3/16" Package XT, LTD | 14 |
| 14 | 293150104 | Pop Rivet 3/16" Package STD, DPS | 14 |
| 22 | 705007171 | Cup Package XT, LTD | 22 |
| 24 | 705007171 | Cup Package Hunter | 24 |
| 22 | 705007171 | Cup Package STD, DPS | 22 |
| 4 | 210262050 | Hexagonal Head Screw Package XT, LTD | 4 |
| 4 | 210262050 | Hexagonal Head Screw Package STD, DPS | 4 |
| 4 | 250200097 | Flat Washer Package XT, LTD | 4 |
| 4 | 250200097 | Flat Washer Package STD, DPS | 4 |
| 22 | 210262050 | Hexagonal Head Screw Package XT, LTD | 22 |
| 24 | 210262050 | Hexagonal Head Screw Package Hunter | 24 |
| 22 | 210262050 | Hexagonal Head Screw Package STD, DPS | 22 |
| 4 | 291001932 | Pad Package XT, LTD | 4 |
| 4 | 291001932 | Pad Package STD, DPS | 4 |
