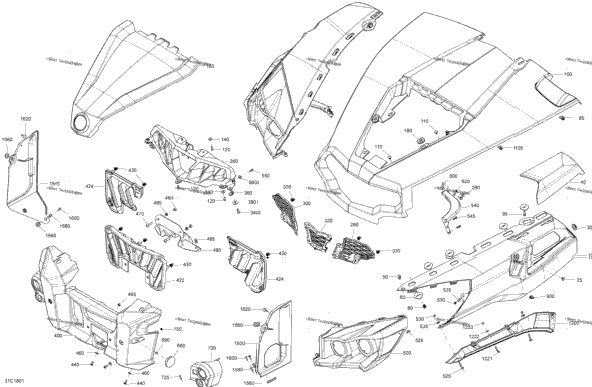

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705008198 | White, LH Front Fender Bright White Models | 1 |
| 1 | 705008199 | White, RH Front Fender Bright White Models | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 517303756 | Grommet | 1 |
| 1 | 705008193 | CVT Inlet Cover Bright White Models | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 12 | 705003841 | Support Plate | 12 |
| 10 | 517302785 | Edge Clip | 10 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 705011534 | White, Fixed Hood Bright White Models | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 5 | 250000720 | Torx Screw K50 X 16 | 5 |
| 5 | 234062670 | Stainless Steel Flat Washer | 5 |
| 1 | 705008186 | Bright White, Removable Hood Bright White Models | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 705008689 | Black Front Facia Package XT, LTD | 1 |
| 1 | 705008689 | Black Front Facia Package STD, DPS | 1 |
| 1 | 705010654 | Black Front Facia Package Hunter | 1 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 11 | 517302785 | Edge Clip | 11 |
| 4 | 250000755 | Torx Screw M6 X 16 | 4 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 293450274 | Insert | ||
| 2 | 250000745 | Hex Torx Truss M8 X30 Package STD, DPS | 2 |
| 2 | 232081414 | Hex. Nut M8 Package STD, DPS | 2 |
| 2 | 234081410 | Flat Washer 8 mm Package STD, DPS | 2 |
| 1 | 705003399 | Bottom Deflector Package STD, DPS | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet Package STD, DPS | 2 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 4 | 250000842 | Stainless, Torx Screw M6 X 30 | 4 |
| 4 | 232561434 | Elastic Stop Nut M6 | 4 |
| 2 | 705002891 | Facia Front Support | 2 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 2 | 705011222 | Amber Reflector | 2 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XT, LTD | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XT, LTD | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT, LTD | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 10 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 2 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 10 |
| 7 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 7 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 10 |
| 7 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 7 |
| 1 | 705005113 | LH Deflector Package XT, LTD | 1 |
| 1 | 705002895 | LH Deflector Package STD, DPS | 1 |
| 1 | 705002894 | RH Deflector | 1 |
| 6 | 293720053 | Grommet | 6 |
| 4 | 517303439 | Knob | 4 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 2 | 708000759 | Rubber Stopper | 2 |
