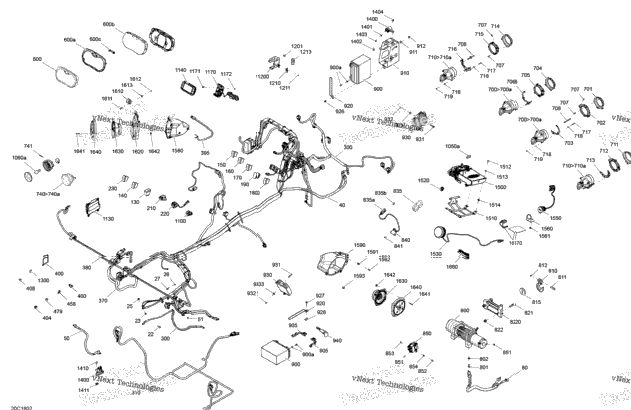

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 Commander | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 710005123 | Winch Cable (-/+) Commander | 1 |
| 1 | 710005239 | Winch Cable (-/+) Commander MAX | 1 |
| 1 | 710004383 | Positive Cable Commander | 1 |
| 1 | 710004390 | Positive Cable Commander MAX | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004387 | Electrical Winch Cable | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 1 | 710001725 | Hi/Low Switch | 1 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710003541 | Switch PPS Sport | 1 |
| 1 | 710001781 | Switch DPS | 1 |
| 1 | 710002052 | Switch Winch | 1 |
| 1 | 710001999 | Plug Carling | 1 |
| 1 | 710003847 | Ignition Switch | 1 |
| 1 | 710002594 | Engine Start Button | 1 |
| 1 | 710005661 | Harness Ass'y Commander | 1 |
| 1 | 710005662 | WIRING HARNESS ASSY Commander MAX | 1 |
| 1 | 710005760 | DPS Connector Cap Not Shown | 1 |
| 1 | 710004681 | Rear Harness | 1 |
| 1 | 710004339 | Radio Harness | 1 |
| 2 | 710004340 | Speaker Harness | 2 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 293730018 | Mount Dart Commander MAX | 1 |
| 1 | 710005653 | Speedometer Includes 600 to 600c | 1 |
| 1 | 415129348 | Gauge Ring | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 2 | 710002524 | Low Beam Ass'y Includes 700 to 700a | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 22 | 250000723 | Phillips Screw K40 X 16 | 22 |
| 8 | 710001147 | Setting Screw | 8 |
| 2 | 710002525 | High Beam Ass'y Includes 710 to 710a | 2 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 24 | 234051410 | Flat Washer M5 | 24 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 2 | 710001645 | Tail Light Ass'y Includes 740 to 740a | 2 |
| 1 | 520000758 | Bulb | 1 |
| 4 | 241154540 | Hex. Screw K50 X 45 | 4 |
| 1 | 710005732 | Winch | 1 |
| 4 | 205082044 | Socket Head Screw M8 X 20 | 4 |
| 4 | 234181401 | Lock Washer 8 mm | 4 |
| 1 | 715003523 | Hook and Strap kit | 1 |
| 1 | 710005142 | Winch Cable Stopper | 1 |
| 1 | 710004822 | Winch Cable Guide | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 710001059 | Connector Ass'y Includes 835 to 835b | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710005258 | Winch Connector | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 703500947 | Solenoid | 1 |
| 6 | 232561434 | Elastic Stop Nut M6 | 6 |
| 2 | 207151644 | Hex. Screw M5 X 16 | 2 |
| 2 | 233251494 | Elastic Flange Nut M5 | 2 |
| 2 | 234051410 | Flat Washer M5 | 2 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 2 | 710003602 | Battery Rubber Pad Commander MAX | 2 |
| 1 | 710003129 | Battery Support Commander | 1 |
| 3 | 234062410 | Flat Washer 6 mm Commander | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Commander | 3 |
| 1 | 710001916 | Battery Holder | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Commander | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip Commander MAX | 1 |
| 1 | 250000957 | Extruded Panel Nut M6 Commander MAX | 1 |
| 1 | 710005568 | Voltage Regulator | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 710003582 | Cap Commander MAX | 1 |
| 1 | 710003269 | Cap Protector | 1 |
| 1 | 219800128 | Bulb | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710005034 | GPS | 1 |
| 1 | 710002545 | GPS Support | 1 |
| 4 | 250000797 | Torx Head Screw M4 X 16 | 4 |
| 4 | 232541484 | Elastic Stop Nut M4 | 4 |
| 1 | 710003335 | Fuse Holder | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 710003006 | Housing | 1 |
| 2 | 414227300 | Clip | 2 |
| 1 | 278003012 | Starter Relay Commander MAX | 1 |
| 1 | 710001364 | Starter Relay Commander | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 250000717 | Torx Head Screw M6 X 16 Commander | 1 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Commander | 2 |
| 2 | 250000717 | Torx Head Screw M6 X 16 Commander MAX | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 Commander MAX | 2 |
| 1 | 710005442 | Amplifier | 1 |
| 1 | 710002556 | Amplifier Support | 1 |
| 8 | 250000750 | Torx Screw M4 X 16 | 8 |
| 8 | 234042600 | Flat Washer 4 mm, Stainless | 8 |
| 8 | 250100143 | Extruded Panel Nut M4 X 0.7 | 8 |
| 1 | 710002926 | Grommet Boot | 1 |
| 1 | 710002549 | Radio Interface | 1 |
| 1 | 710002551 | USB Extension | 1 |
| 1 | 710002731 | USB Extension Support | 1 |
| 1 | 705012294 | LH Speaker HSG | 1 |
| 1 | 705012293 | RH Speaker HSG | 1 |
| 8 | 250000958 | Panel Nut M5 X 0.8 | 8 |
| 8 | 250000724 | Torx Screw M5 X 20 | 8 |
| 1 | 414227300 | Clip | 1 |
| 1 | 709200036 | Hose Anchor | 1 |
| 3 | 250000724 | Torx Screw M5 X 20 | 3 |
| 3 | 233251494 | Elastic Flange Nut M5 | 3 |
| 5 | 250200025 | Washer M5 | 5 |
| 1 | 710002789 | Speaker Box Plate | 1 |
| 2 | 710003233 | Front Speaker | 2 |
| 2 | 710002790 | Speaker Cover | 2 |
| 8 | 205042560 | Socket Head Screw M4 X 25 | 8 |
| 1 | 710002810 | Antenna | 1 |
| 1 | 710005958 | BlueTooth Module | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
