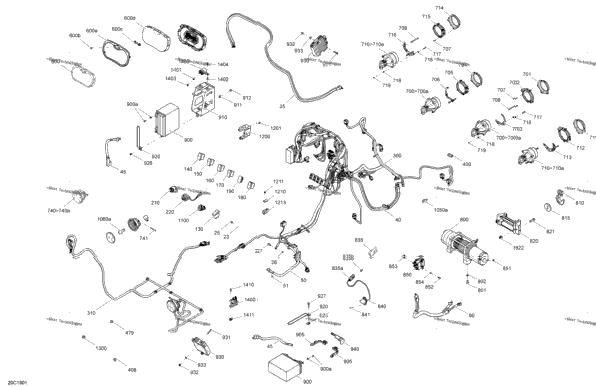

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 Commander | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 710004575 | Winch Cable (-/+) Commander Package DPS | 1 |
| 1 | 710004919 | Winch Cable (-/+) Commander Max Package DPS | 1 |
| 1 | 710005123 | Winch Cable (-/+) Package Hunter, XT, XTP | 1 |
| 1 | 710005239 | Winch Cable (-/+) Commander Max Package XT | 1 |
| 1 | 710004384 | Positive Cable Commander Package DPS | 1 |
| 1 | 710004384 | Positive Cable Commander Package STD | 1 |
| 1 | 710004393 | Positive Cable Commander Max Package DPS | 1 |
| 1 | 710004383 | Positive Cable Commander | 1 |
| 1 | 710004390 | Positive Cable Commander MAX | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004387 | Electrical Winch Cable Package Hunter & XT | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 1 | 710001725 | Hi/Low Switch | 1 |
| 1 | 710001737 | 4X4 Switch | 1 |
| 1 | 710003541 | Switch PPS Sport | 1 |
| 1 | 710001781 | Switch DPS Except Package STD | 1 |
| 1 | 710002052 | Switch Winch Package Hunter & XT | 1 |
| 2 | 710001999 | Plug Carling | 2 |
| 1 | 710003847 | Ignition Switch | 1 |
| 1 | 710002594 | Engine Start Button | 1 |
| 1 | 710005661 | Harness Ass'y Commander | 1 |
| 1 | 710005662 | WIRING HARNESS ASSY Commander MAX | 1 |
| 1 | 710005760 | DPS Connector Cap Not Shown | 1 |
| 1 | 710004681 | Rear Harness | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 293730018 | Mount Dart Commander MAX | 1 |
| 1 | 710005553 | Speedometer Package DPS, STD | 1 |
| 1 | 710005653 | Speedometer Package Hunter, XT, XTP | 1 |
| 1 | 710001183 | Trim Ring Ass'y Package DPS, STD | 1 |
| 1 | 415129348 | Gauge Ring Package Hunter, XT, XTP | 1 |
| 1 | 704904615 | BRP Logo13 mm Package DPS, STD | 1 |
| 1 | 715900265 | Button Package DPS, STD | 1 |
| 1 | 415129355 | Speedometer Button Package Hunter, XT, XTP | 1 |
| 1 | 415129349 | Lens Package Hunter, XT, XTP | 1 |
| 2 | 710002524 | Low Beam Ass'y Includes 700 to 700a | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 22 | 250000723 | Phillips Screw K40 X 16 | 22 |
| 8 | 710001147 | Setting Screw | 8 |
| 2 | 710002525 | High Beam Ass'y Includes 710 to 710a | 2 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 24 | 234051410 | Flat Washer M5 | 24 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 2 | 710001645 | Tail Light Ass'y Includes 740 to 740a | 2 |
| 1 | 520000758 | Bulb | 1 |
| 4 | 241154540 | Hex. Screw K50 X 45 | 4 |
| 1 | 710005732 | Winch Package Hunter & XT | 1 |
| 4 | 205082044 | Socket Head Screw M8 X 20 Package Hunter & XT | 4 |
| 4 | 234181401 | Lock Washer 8 mm Package Hunter & XT | 4 |
| 1 | 715003523 | Hook and Strap kit Package Hunter & XT | 1 |
| 1 | 710005142 | Winch Cable Stopper Package Hunter & XT | 1 |
| 1 | 710004822 | Winch Cable Guide Package Hunter & XT | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 Package Hunter & XT | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 Package Hunter & XT | 2 |
| 1 | 710001059 | Connector Ass'y Package Hunter & XT | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits Package Hunter & XT | 1 |
| 1 | 710000992 | Clip Package Hunter & XT | 1 |
| 1 | 710005258 | Winch Connector Package Hunter & XT | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 Package Hunter & XT | 2 |
| 1 | 703500947 | Solenoid Package Hunter & XT | 1 |
| 6 | 232561434 | Elastic Stop Nut M6 Package Hunter & XT | 6 |
| 2 | 207151644 | Hex. Screw M5 X 16 Package Hunter & XT | 2 |
| 2 | 233251494 | Elastic Flange Nut M5 Package Hunter & XT | 2 |
| 2 | 234051410 | Flat Washer M5 Package Hunter & XT | 2 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 0 | 250000282 | Battery Bolt Kit | 0 |
| 2 | 710003602 | Battery Rubber Pad Commander MAX | 2 |
| 1 | 710003129 | Battery Support Commander | 1 |
| 3 | 234062410 | Flat Washer 6 mm Commander | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Commander | 3 |
| 1 | 710001916 | Battery Holder | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Commander | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip Commander MAX | 1 |
| 1 | 250000957 | Extruded Panel Nut M6 Commander MAX | 1 |
| 1 | 710005568 | Voltage Regulator | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 710003582 | Cap Commander MAX | 1 |
| 0 | 710003269 | Cap Protector | 0 |
| 0 | 219800128 | Bulb | 0 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710003335 | Fuse Holder | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 710003006 | Housing | 1 |
| 2 | 414227300 | Clip | 2 |
| 1 | 278003012 | Starter Relay Commander MAX | 1 |
| 1 | 710001364 | Starter Relay Commander | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 250000717 | Torx Head Screw M6 X 16 Commander | 1 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Commander | 2 |
| 2 | 250000717 | Torx Head Screw M6 X 16 Commander MAX | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 Commander MAX | 2 |
| 1 | 293750008 | Tie Wrap 368 mm Not shown | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Not shown | 1 |
| 1 | 293750009 | Tie-Rap 173 mm Not shown | 1 |
