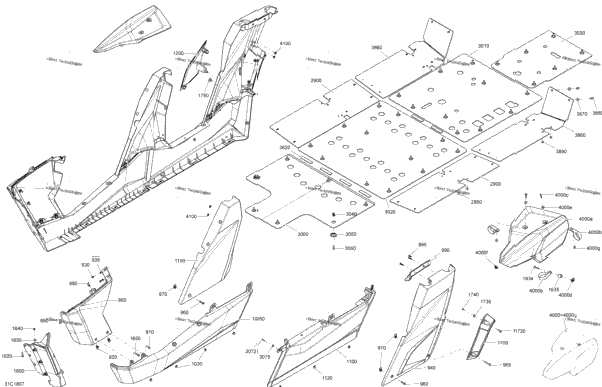

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705011538 | Squadron Green, LH Front Lateral Panel Squadron Green Models | 1 |
| 1 | 705011539 | Squadron Green, RH Front Lateral Panel Squadron Green Models | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 Not Shown | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 Package DPS | 2 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 1 | 705011545 | Squadron Green, LH Rear Lateral Panel Squadron Green Models | 1 |
| 1 | 705011567 | Squadron Green, RH Panel Squadron Green Models | 1 |
| 4 | 250000843 | Torx Truss Screw M6 X 30 | 4 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 5 | 250000957 | Extruded Panel Nut M6 | 5 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 705005423 | Black, LH Lower Panel | 1 |
| 1 | 705007035 | Black, LH Lower Panel Package LTD | 1 |
| 1 | 705007035 | Black, LH Lower Panel Package XT | 1 |
| 1 | 705005424 | Black, RH Lower Panel | 1 |
| 1 | 705007036 | Black, RH Lower Panel Package LTD | 1 |
| 1 | 705007036 | Black, RH Lower Panel Package XT | 1 |
| 1 | 705005425 | Black, LH Rear Lower Panel | 1 |
| 1 | 705005426 | Black, RH Rear Lower Panel | 1 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 1 | 705011569 | Squadron Green, LH Central Panel Squadron Green Models | 1 |
| 1 | 705011570 | Squadron Green, RH Central Panel Squadron Green Models | 1 |
| 1 | 705011573 | Squadron Green, Panel Cover Squadron Green Models | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT, LTD | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 10 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 2 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT, LTD | 1 |
| 7 | 250000712 | Torx Screw M6 X 20 Package XT, LTD | 7 |
| 7 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 7 |
| 1 | 250200086 | Flat Washer Package XT, LTD | 1 |
| 2 | 705008421 | Side Protector Plate | 2 |
| 16 | 293150104 | Pop Rivet 3/16" | 16 |
| 1 | 705007055 | Middle Protector Plate | 1 |
| 1 | 705007056 | Rear Protector Plate | 1 |
| 1 | 705009447 | Skid Plate | 1 |
| 1 | 705007227 | Rear Protector Plate | 1 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 35 | 705007171 | Cup | 35 |
| 35 | 210262050 | Hexagonal Head Screw | 35 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 6 | 291001932 | Pad | 6 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 4 | 250200097 | Flat Washer | 4 |
| 4 | 210262050 | Hexagonal Head Screw | 4 |
| 14 | 293150104 | Pop Rivet 3/16" | 14 |
