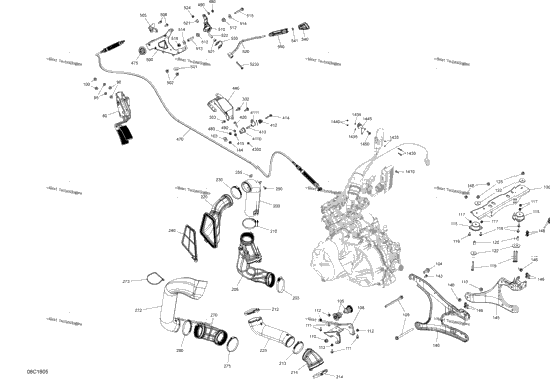

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293650214 | Norma Spring Clamp Not Shown | 1 |
| 1 | 707001599 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 250100031 | Push Nut | 2 |
| 2 | 233081416 | Hex. Flange Nut M8 | 2 |
| 1 | 250200005 | Conical Spring Washer M12 | 1 |
| 1 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip | 1 |
| 2 | 707001169 | Vibration Damper | 2 |
| 1 | 707001989 | Front Engine Bracket | 1 |
| 2 | 230603546 | Hex. Flange Screw M10 X 135 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 5 | 207661644 | Hex. Flange Screw M6 X 16 | 5 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 5 |
| 2 | 707001867 | Rubber Mount | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 207186044 | Hex. screw M8 x 60 | 2 |
| 2 | 707001908 | Bushing | 2 |
| 4 | 250200158 | Flat Washer M8 | 4 |
| 1 | 707002208 | Bracket-Link | 1 |
| 1 | 707001991 | Bracket -Engine | 1 |
| 1 | 707002146 | Plate Not Shown | 1 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 707001992 | Bracket -Engine | 1 |
| 6 | 207682046 | Hex. Flange Screw M8 X 20 | 6 |
| 6 | 233281416 | Hex. Elastic Flange Nut M8 | 6 |
| 1 | 706600234 | Duct | 1 |
| 1 | 293650091 | Norma Clamp | 1 |
| 1 | 706600144 | Flex Adapter | 1 |
| 1 | 514052924 | Norma Clamp | 1 |
| 1 | 706600153 | Adap -Flex. | 1 |
| 1 | 706600084 | Flexible Adaptor | 1 |
| 1 | 706600154 | Duct | 1 |
| 1 | 706600156 | CVT Filter | 1 |
| 1 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 1 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 706600145 | Adap -Flex. | 1 |
| 1 | 706600155 | Duct | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 707000503 | Lever | 1 |
| 1 | 707001988 | Pivot Plate | 1 |
| 1 | 707000310 | Spring | 1 |
| 1 | 293900079 | Bushing | 1 |
| 1 | 207664044 | Hex. Flange Screw M6 X 40 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 707001986 | Cable Support | 1 |
| 1 | 707001468 | Shifting Cable | 1 |
| 1 | 293720109 | Grommet | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 1 | 250200105 | Stainless Flat Washer, 10 mm Not Shown | 1 |
| 1 | 707002003 | Shifter Braket | 1 |
| 1 | 250200158 | Flat Washer M8 | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 707002038 | Cable Support | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 707002005 | Lower Shifter Arm | 1 |
| 2 | 293900001 | Venturi Bushing | 2 |
| 1 | 707001863 | Internal Bushing | 1 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 207686044 | Hex. Flange Screw M8 x 60 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 707002230 | Welded Arm | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707001376 | Bushing | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707000965 | Lever Button | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 1 | 707001899 | Shifting Arm Cover | 1 |
| 2 | 207142544 | Hex. Screw M4 X 25 | 2 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 2 | 232541414 | Elastic Stop Nut M4 | 2 |
| 1 | 707002024 | Ignition Coil Bracket | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
