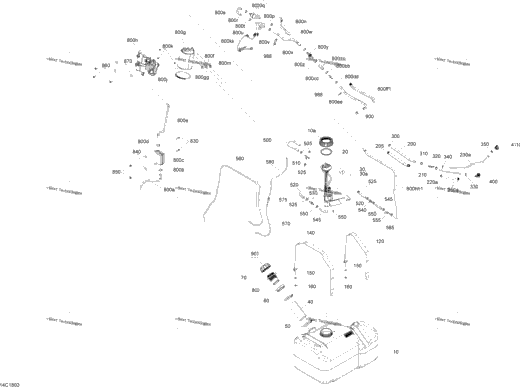

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709000591 | Fuel Tank Includes 10 to 10a | 1 |
| 1 | 709000328 | Fuel Pump Module Nut | 1 |
| 1 | 709000208 | Seal | 1 |
| 1 | 709000662 | Fuel Pump Includes 30 to 30a | 1 |
| 1 | 715900322 | Prefilter Fuel Pump Kit 86mm Long | 1 |
| 1 | 709000595 | Hose Filler Neck | 1 |
| 1 | 293650081 | Norma Clamp | 1 |
| 1 | 709000867 | Filler Neck | 1 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 709000868 | Fuel Cap | 1 |
| 1 | 709000521 | Fuel Tank Strap | 1 |
| 1 | 709000648 | Fuel Tank Strap | 1 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 219704440 | Was 709000163 Fuel Line Engine HD8, HD10 | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long Engine HD8, HD10 | 1 |
| 1 | 293710136 | Y-Fitting, 5/16'' Engine HD8, HD10 | 1 |
| 1 | 293650047 | Crimp Clamp, 15.3-706R | 1 |
| 1 | 293650047 | Crimp Clamp, 15.3-706R Engine HD8, HD10 | 1 |
| 1 | 275500700 | Quick Attach 90° | 1 |
| 1 | 275500700 | Quick Attach 90° Engine HD8, HD10 | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long NOEVAP Models | 1 |
| 1 | 219704442 | Was 709000667 Hose EVAP Models | 1 |
| 2 | 293650042 | Oetiker Clamp EVAP Models | 2 |
| 1 | 293710059 | Y-Fitting | 1 |
| 4 | 293650042 | Oetiker Clamp EVAP Models | 4 |
| 1 | 513033469 | Check Valve | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 293710059 | Y-Fitting EVAP Models | 1 |
| 1 | 709000330 | Filter NOEVAP Models | 1 |
| 1 | 293650042 | Oetiker Clamp EVAP Models | 1 |
| 1 | 709000849 | Formed Hose EVAP Models | 1 |
| 1 | 293650186 | Oetiker Clamp EVAP Models | 1 |
| 1 | 709000524 | Air Filter EVAP Models | 1 |
| 1 | 709000850 | Formed Hose EVAP Models | 1 |
| 1 | 293650053 | Crimp Clamp EVAP Models | 1 |
| 1 | 709000806 | Vapor Canister EVAP Models | 1 |
| 1 | 709000851 | Canister Support EVAP Models | 1 |
| 1 | 293650054 | Tridon Clamp EVAP Models | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 EVAP Models | 3 |
| 1 | 709000853 | Formed Hose EVAP Models | 1 |
| 1 | 293650046 | Oetiker Clamp EVAP Models | 1 |
| 1 | 709000100 | Fuel Filter EVAP Models | 1 |
| 1 | 293650047 | Crimp Clamp, 15.3-706R EVAP Models | 1 |
| 1 | 709000857 | Formed Hose EVAP Models | 1 |
| 1 | 709000443 | Bleed Valve EVAP Models | 1 |
| 1 | 709000937 | Formed Hose EVAP Models | 1 |
| 1 | 275500941 | Check Valve EVAP Models | 1 |
| 1 | 709000882 | Hose EVAP Models | 1 |
| 1 | 709000933 | Flow Reducer EVAP Models | 1 |
| 1 | 709000855 | Formed Hose EVAP Models | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long EVAP Models | 1 |
| 1 | 710005718 | Purge Valve Cable EVAP Models | 1 |
| 2 | 207662554 | Hex. Flange Screw M6 X 25 EVAP Models | 2 |
| 2 | 250200162 | Flat Washer M6.6 X 22 EVAP Models | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 EVAP Models | 2 |
| 3 | 207662054 | Hex. Flange Screw M6 X 20 EVAP Models | 3 |
| 3 | 250200162 | Flat Washer M6.6 X 22 EVAP Models | 3 |
| 1 | 293650214 | Norma Spring Clamp EVAP Models | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
