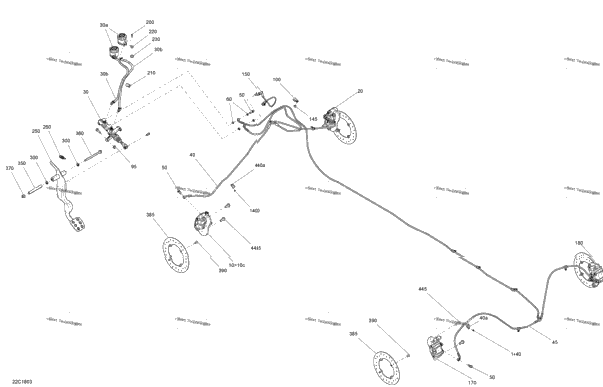

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705601462 | LH Front Caliper Includes 10 to 10c | 1 |
| 1 | 715900379 | LH Brake Pads Not Shown | 1 |
| 1 | 715900384 | Pin Kit Not Shown | 1 |
| 1 | 705601017 | Bleeding Screw Not Shown | 1 |
| 1 | 715900385 | Cap Spring Kit Not Shown | 1 |
| 1 | 705601463 | RH Front Caliper Includes 20 to 20c | 1 |
| 1 | 715900380 | RH Brake Pads Not Shown | 1 |
| 1 | 705601549 | Master Cylinder Includes 30 to 30b | 1 |
| 1 | 705601020 | Oil Tank | 1 |
| 1 | 705601019 | Oil Housing Hose | 1 |
| 1 | 705601623 | Brake Hose Package BASE, STD, DPS | 1 |
| 1 | 705601623 | Brake Hose Package XT, Hunter | 1 |
| 1 | 705601624 | Brake Hose Package CAB | 1 |
| 2 | 293650256 | Clamp | 2 |
| 1 | 705601499 | Brake Hose MAX Models | 1 |
| 1 | 705601540 | Brake Hose Engine HD5 | 1 |
| 1 | 705601595 | Brake Hose Engine HD8 Package BASE | 1 |
| 1 | 705601595 | Brake Hose Engine HD8 Package DPS | 1 |
| 1 | 705601595 | Brake Hose Engine HD8 Package STD | 1 |
| 1 | 705601595 | Brake Hose Engine HD8 Package XT | 1 |
| 1 | 705601595 | Brake Hose Engine HD10 Package DPS | 1 |
| 1 | 705601595 | Brake Hose Engine HD10 Package STD | 1 |
| 1 | 705601595 | Brake Hose Engine HD10 Package XT | 1 |
| 1 | 705601595 | Brake Hose Includes 45 to 45a | 1 |
| 1 | 705601625 | Brake Hose Package CAB | 1 |
| 5 | 715900250 | Hose Clip Package BASE, STD, DPS | 5 |
| 5 | 715900250 | Hose Clip Package XT, Hunter | 5 |
| 6 | 293650256 | Clamp Package CAB | 6 |
| 1 | 705600609 | Banjo Bolt (M10 x 1.25 thread) all | 1 |
| 1 | 705601628 | Copper Washer all | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 293650220 | Clamp | 2 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 705601250 | Brake Switch | 1 |
| 2 | 207361644 | Hex. Screw M6 X 16, Scotch Grip | 2 |
| 1 | 705601464 | LH Rear Caliper Engine HD8, HD10 | 1 |
| 1 | 715900381 | LH Brake Pads Engine HD8, HD10 | 1 |
| 1 | 715900384 | Pin Kit Engine HD8, HD10 | 1 |
| 1 | 705601017 | Bleeding Screw Engine HD8, HD10 | 1 |
| 1 | 715900385 | Cap Spring Kit Engine HD8, HD10 | 1 |
| 1 | 705601466 | LH Rear Caliper MAX Models | 1 |
| 1 | 715900386 | LH Brake Pads MAX Models | 1 |
| 1 | 715900384 | Pin Kit MAX Models | 1 |
| 1 | 705601017 | Bleeding Screw MAX Models | 1 |
| 1 | 715900385 | Cap Spring Kit MAX Models | 1 |
| 1 | 705601465 | RH Rear Caliper Engine HD8, HD10 | 1 |
| 1 | 715900382 | RH Brake Pads Engine HD8, HD10 | 1 |
| 1 | 705601467 | RH Rear Caliper MAX Models | 1 |
| 1 | 705601467 | RH Rear Caliper Engine HD5 | 1 |
| 1 | 715900387 | RH Brake Pads Not Shown | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 515175507 | Open Clamp | 1 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 2 | 414036300 | Grommet | 2 |
| 1 | 705601306 | Brake Pedal | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 705601373 | Inside Sleeve | 1 |
| 1 | 230603046 | Hex. Flange Screw, M10 X 130 | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 1 | 705601511 | Brake Disc Engine HD5 | 1 |
| 1 | 235381646 | Torx Screw M8 X 16, Scotch Grip Engine HD5 | 1 |
| 1 | 207502546 | Hex. Flange Screw M10 X 25 Engine HD8, HD10 | 1 |
