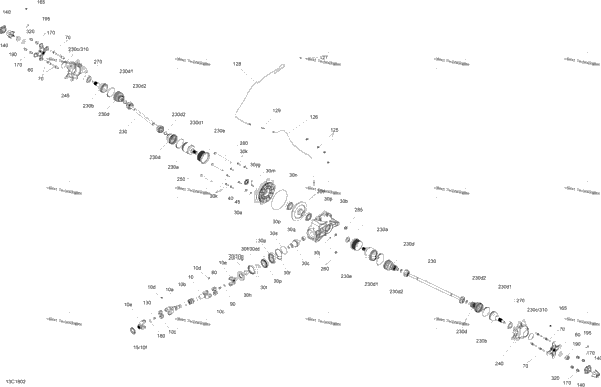

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 703500994 | Shaft Ass'y Kit Includes 10 to 10g | 1 |
| 1 | 703500994 | Shaft Ass'y Kit | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 2 | 703500846 | Universal Joint Ass'y | 2 |
| 1 | 715900295 | Grease Fitting | 1 |
| 1 | 715900436 | Joint | 1 |
| 1 | 705501123 | Protector | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| XXXX | Not Available As Spare Part - Non Applicable | ||
| 1 | 705502275 | Final Drive Unit Includes 30 to 30t | 1 |
| 1 | 705502171 | REAR COVER | 1 |
| 1 | 705502172 | PINION COVER | 1 |
| 1 | 703500867 | Pinion Kit | 1 |
| 1 | 705501554 | O-Ring | 1 |
| 1 | 703500868 | Gear Kit | 1 |
| 2 | 705501556 | Oil Seal | 2 |
| 1 | 705502276 | Oil Seal | 1 |
| 1 | 705501724 | Plug Drain | 1 |
| 7 | 705502063 | Screw | 7 |
| 1 | 705501584 | Breather Tube | 1 |
| 1 | 705501749 | Oil Seal | 1 |
| 1 | 703500869 | Bearing Kit | 1 |
| 1 | 703500840 | Needle Bearing | 1 |
| 1 | 703500839 | Differential Shim Kit | 1 |
| 705501740 | NUT | ||
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 2 | 705502223 | Wheel Hub ( 29 Splines ) | 2 |
| 8 | 250300060 | Wheel Stud | 8 |
| 1 | 250000615 | Screw-Hex.Flange M10 X 16 | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 4 | 710003168 | Dart Tie Rap 200MM | 4 |
| 1 | 219704388 | Was 293830177 Hose | 1 |
| 1 | 414227300 | Clip Package XMR | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Package XMR | 1 |
| 1 | 293710039 | Straight Fitting Package XMR | 1 |
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 2 | 705400928 | Wheel Cap All Package Except XMR | 2 |
| 2 | 705401541 | Wheel Cap Package XMR | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 8 | 250100184 | Black, Wheel Nut M10 X 1.25 | 8 |
| 1 | 250200005 | Conical Spring Washer M12 | 1 |
| 2 | 250100193 | Castle Nut M20 | 2 |
| 2 | 250400084 | Cotter Pin | 2 |
| 2 | 705502413 | CV Joint Package DPS | 2 |
| 2 | 705502414 | CV Joint Package XMR | 2 |
| 2 | 705502415 | CV Joint Package XCDPS | 2 |
| 2 | 705502415 | CV Joint Package XC | 2 |
| 2 | 705502415 | CV Joint Package XXC | 2 |
| 1 | 715900432 | Plunging Joint | 1 |
| 715900429 | JOINT_CV EXT | ||
| 1 | 705501781 | Circlip | 1 |
| 2 | 705501864 | Boot Kit | 2 |
| 1 | 715900241 | Oetiker Clamp, 82.1 mm | 1 |
| 1 | 715900242 | Oetiker Clamp, 27.3 mm | 1 |
| 1 | 705501841 | HEAT DISSIPATOR | 1 |
| 1 | 705501730 | LH Rear Knuckle | 1 |
| 1 | 705501731 | RH Rear Knuckle | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 293350118 | Cone Bearing | 2 |
| 1 | 230629087 | Hex. Flange Screw M12 X 190 | 1 |
| 1 | 233221416 | Elastic Flange Nut M12 | 1 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200170 | Conical Spring Washer M20 | 2 |
