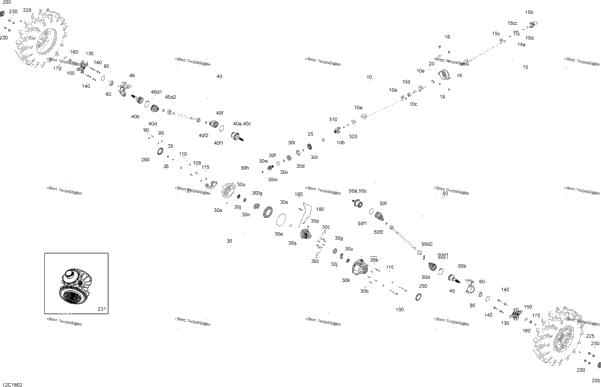

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 703500993 | Shaft Ass'y Kit Includes 10 to 10e | 1 |
| 2 | 715900435 | U-Joint Cross Kit | 2 |
| 1 | 715900231 | Yoke Joint | 1 |
| 1 | 703500815 | Grease Fitting | 1 |
| 1 | 715900483 | Cover | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705402041 | Drive Axle Ass'y MAX Models | 1 |
| 2 | 715900435 | U-Joint Cross Kit MAX Models | 2 |
| 1 | 715900231 | Yoke Joint MAX Models | 1 |
| 2 | 703500815 | Grease Fitting MAX Models | 2 |
| 1 | 715900483 | Cover MAX Models | 1 |
| 1 | 705401646 | Ball Bearing MAX Models | 1 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 MAX Models | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 MAX Models | 2 |
| 2 | 503032900 | Washer MAX Models | 2 |
| XXXX | Not Available As Spare Part - Non Applicable | ||
| 1 | 703500907 | Front Differential Package XC | 1 |
| 1 | 703500908 | Front Differential Package XMR | 1 |
| 1 | 703500908 | Front Differential Package XXC | 1 |
| 1 | 703500908 | Front Differential Package XCDPS | 1 |
| 1 | 703500908 | Front Differential Package DPS | 1 |
| 1 | 705501885 | Drain Plug | 1 |
| 6 | 705401601 | Screw | 6 |
| 8 | 705401602 | Screw | 8 |
| 1 | 705401603 | Nut | 1 |
| 1 | 705401604 | Shim | 1 |
| 1 | 705401605 | Ball Bearing | 1 |
| 2 | 705401606 | Ball Bearing | 2 |
| 1 | 705401607 | Needle Bearing | 1 |
| 2 | 705401608 | Ball Bearing | 2 |
| 1 | 705401610 | Front Cover | 1 |
| 1 | 705401791 | Pinion 10 Teeth | 1 |
| 1 | 705401612 | Gear 36 Teeth | 1 |
| 1 | 705401613 | Vent Valve | 1 |
| 1 | 705401614 | Differential Package XC | 1 |
| 1 | 705401506 | Differential Package XMR | 1 |
| 1 | 705401506 | Differential Package XXC | 1 |
| 1 | 705401506 | Differential Package XCDPS | 1 |
| 1 | 705401506 | Differential Package DPS | 1 |
| 1 | 705401615 | Oil Seal | 1 |
| 1 | 705401616 | Seal | 1 |
| 1 | 705401617 | O'Ring | 1 |
| 2 | 705401618 | Gasket | 2 |
| 1 | 705401769 | Shim | 1 |
| 1 | 705401770 | Shim | 1 |
| 1 | 705401600 | SUPPORT | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705401874 | RH CV Joint Package DPS | 1 |
| 1 | 705401876 | RH CV Joint Package XCDPS | 1 |
| 1 | 705401876 | RH CV Joint Package XC | 1 |
| 1 | 705401876 | RH CV Joint Package XXC | 1 |
| 1 | 705401878 | RH CV Joint Package XMR | 1 |
| 1 | 715900395 | RH Plunging CV Joint All Package Except XMR | 1 |
| 1 | 715900395 | RH Plunging CV Joint Package XMR | 1 |
| 1 | 715900428 | CV Joint All Package Except XMR | 1 |
| 1 | 715900428 | CV Joint Package XMR | 1 |
| 1 | 705401349 | Circlip Joint All Package Except XMR | 1 |
| 1 | 705401349 | Circlip Joint Package XMR | 1 |
| 1 | 705401354 | Boot Kit, Wheel Side All Package Except XMR | 1 |
| 1 | 705401354 | Boot Kit, Wheel Side Package XMR | 1 |
| 1 | 715900260 | Oetiker Clamp, Large All Package Except XMR | 1 |
| 1 | 715900260 | Oetiker Clamp, Large Package XMR | 1 |
| 1 | 715900261 | Oetiker Clamp, Small All Package Except XMR | 1 |
| 1 | 715900261 | Oetiker Clamp, Small Package XMR | 1 |
| 1 | 705401346 | Boot Kit, Differential Side All Package Except XMR | 1 |
| 1 | 705401355 | Boot Kit, Différential Side Package XMR | 1 |
| 1 | 715900284 | Oetiker Clamp, Large All Package Except XMR | 1 |
| 1 | 715900262 | Oetiker Clamp, Large Package XMR | 1 |
| 1 | 705401548 | LH Front Knuckle | 1 |
| 1 | 705401549 | RH Front Knuckle | 1 |
| 1 | 705401873 | LH CV Joint Package DPS | 1 |
| 1 | 705401875 | LH CV Joint Package XXC | 1 |
| 1 | 705401875 | LH CV Joint Package XCDPS | 1 |
| 1 | 705401875 | LH CV Joint Package XC | 1 |
| 1 | 705401877 | LH CV Joint Package XMR | 1 |
| 1 | 715900430 | LH Plunging Joint All Package Except XMR | 1 |
| 1 | 715900396 | LH Plunging CV Joint Package XMR | 1 |
| 1 | 715900427 | CV Joint All Package Except XMR | 1 |
| 1 | 705401349 | Circlip Joint All Package | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side All Package Except XMR | 1 |
| 1 | 715900282 | Oetiker Clamp All Package Except XMR | 1 |
| 1 | 715900283 | Oetiker Clamp, Small All Package Except XMR | 1 |
| 2 | 293350118 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 207602546 | Hex. Flange Screw M10 X 25 | 2 |
| 2 | 250200014 | Flat Washer M10 | 2 |
| 4 | 234201474 | Conical Spring Washer 10 mm | 4 |
| 2 | 705501900 | Wheel Hub | 2 |
| 8 | 250300060 | Wheel Stud | 8 |
| 2 | 250200171 | Conical Spring Washer M18 | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400071 | Cotter Pin | 2 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 705400928 | Wheel Cap All Package Except XMR | 2 |
| 2 | 705401541 | Wheel Cap Package XMR | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 8 | 250100184 | Black, Wheel Nut M10 X 1.25 | 8 |
| 1 | 703501006 | Side Gear Kit | 1 |
| 2 | 705400780 | Wear Sleeve All Package Except DPS | 2 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 250000847 | Hex. Flange Screw M10 X 20 | 1 |
