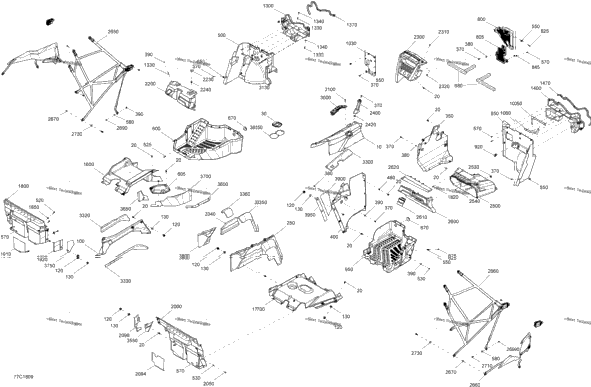

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715003355 | Console Kit Engine 1000R North America Models | 1 |
| 1 | 715003355 | Console Kit Engine 1000R Internationnal Models | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 2 | 707900036 | Cup Retainer | 2 |
| 1 | 707900001 | LH Side Console Except Package XMR | 1 |
| 1 | 707900133 | Insert | 1 |
| 1 | 503189273 | Washer | 1 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900193 | Front Side Dash Panel | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 293450274 | Insert | ||
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 707900021 | RH Fixe Side Console Except Package XMR | 1 |
| 2 | 506151252 | Washer | 2 |
| 1 | 707900181 | LH Front Floor | 1 |
| 4 | 250000712 | Torx Screw M6 X 20 | 4 |
| 3 | 250000758 | Torx Screw M6 X 25 | 3 |
| 7 | 233261494 | Hex. Elastic Flange Nut M6 | 7 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 6 | 250000720 | Torx Screw K50 X 16 | 6 |
| 6 | 234062410 | Flat Washer 6 mm | 6 |
| 1 | 707900022 | LH Lower Floor Except Package XMR | 1 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 1 | 293250242 | Rubber Cover | 1 |
| 1 | 219704382 | Was 293250381 Seal Tray | 1 |
| 1 | 707900178 | Grille | 1 |
| 1 | 707900180 | Grille | 1 |
| 2 | 250000843 | Torx Truss Screw M6 X 30 | 2 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900152 | DEFLECTOR Package XC | 1 |
| 1 | 707900204 | Deflector Except Package XC | 1 |
| 1 | 293250252 | Upper Seal | 1 |
| 1 | 293250253 | Bottom Seal | 1 |
| 1 | 707900561 | Floor Support LH | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 707900562 | RIGHT FLOOR SUPPORT Except Package XMR | 1 |
| 1 | 707900218 | LH Under Seat Plate Except Package XMR | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900164 | LH Rear Deflector | 1 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 250200040 | Flat Washer | 2 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900166 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 250000755 | Torx Screw M6 X 16 | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 1 | 705003841 | Support Plate | 1 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 707900019 | Lower Central Dashboard Ass'y | 1 |
| 2 | 250000724 | Torx Screw M5 X 20 Except Package XMR | 2 |
| 2 | 250000958 | Panel Nut M5 X 0.8 | 2 |
| 707900600 | DASH CAP Carbon Black Models | ||
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900009 | Storage Bin Except Package XMR | 1 |
| 3 | 414859400 | CAP | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 707900221 | Luggage Cover Kit | 1 |
| 1 | 707900031 | Latch | 1 |
| 1 | 707900062 | Trim Glove Box Includes 2620 to 2620a | 1 |
| 1 | 707900237 | Front LH Safety Net | 1 |
| 1 | 707900238 | Front RH Safety Net | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 707900070 | Lever Indicator | 1 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 707900619 | Front Central Console Foam | 1 |
| 1 | 707900620 | Left Upper Lateral Console Foam Except Package XMR | 1 |
| 1 | 707900621 | LH Lower Lateral Console Foam Except Package XMR | 1 |
| 1 | 707900622 | RH Lateral Console Foam | 1 |
| 1 | 707900623 | RH Lateral Console Foam | 1 |
| 1 | 707900624 | RH Lateral Console Foam | 1 |
| 1 | 707900148 | Heat Sheet | 1 |
| 1 | 707900149 | Heat Sheet Except Package XMR | 1 |
| 1 | 707900150 | Heat Sheet Except Package XMR | 1 |
| 1 | 707900151 | Heat Sheet Except Package XMR | 1 |
| 1 | 707900146 | Heat Sheet | 1 |
| 1 | 707900147 | Heat Sheet | 1 |
| 1 | 707900145 | Heat Sheet | 1 |
| 1 | 707900190 | Heat Sheet | 1 |
| 1 | 707900191 | Heat Sheet | 1 |
