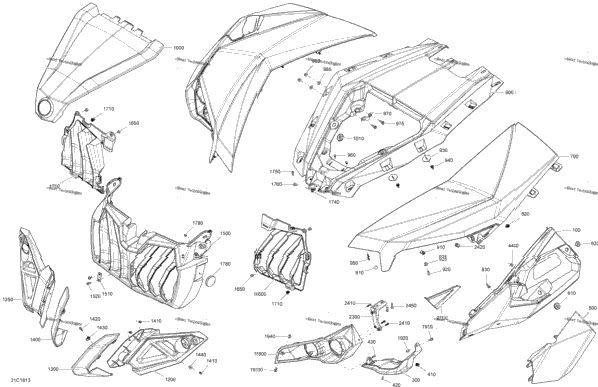

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705007978 | WHITE LH FRONT FENDER Bright White Models | 1 |
| 1 | 705007979 | White RH Front Fender Bright White Models | 1 |
| 1 | 705007981 | WHITE LH FRONT FENDER TRIM Bright White Models | 1 |
| 1 | 705007982 | WHITE RH FRONT FENDER TRIM Bright White Models | 1 |
| 2 | 517302785 | Edge Clip | 2 |
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 | 2 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 705007983 | White LH Cover Front Fender Package XC | 1 |
| 1 | 705007983 | White LH Cover Front Fender Package DPS | 1 |
| 1 | 705010783 | Cover Fender LH Can-Am Red Package XCDPS | 1 |
| 1 | 705007984 | White RH Cover Front Fender Package XC | 1 |
| 1 | 705007984 | White RH Cover Front Fender Package DPS | 1 |
| 1 | 705010784 | Cover Fender RH Can-Am Red Package XCDPS | 1 |
| 2 | 517303756 | Grommet | 2 |
| 2 | 705003264 | Grommet | 2 |
| 1 | 705007348 | White LH Fixe Hood Bright White Models | 1 |
| 1 | 705007349 | White RH Fixe Hood Bright White Models | 1 |
| 2 | 414644300 | Black, Dart | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 705005821 | Fixe Center Hood Package XC, XCDPS | 1 |
| 1 | 705005821 | Fixe Center Hood Package DPS | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 11 | 705003841 | Support Plate | 11 |
| 9 | 517302785 | Edge Clip | 9 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 1 | 705006623 | Clamp | 1 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 705007060 | Black Removable Hood Bright White Models | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705007497 | LH Bumper Grille | 1 |
| 1 | 705007498 | RH Bumper Grille | 1 |
| 1 | 705007352 | WHITE LH BUMPER CAP Package XCDPS | 1 |
| 1 | 705007352 | WHITE LH BUMPER CAP Package XC | 1 |
| 1 | 705010791 | TRIM_BUMPER FL B-101 Package DPS Bright White Models | 1 |
| 1 | 705007353 | WHITE RH BUMPER CAP Package XC | 1 |
| 1 | 705007353 | WHITE RH BUMPER CAP Package XCDPS | 1 |
| 1 | 705010792 | TRIM_BUMPER FR B-101 Package DPS Bright White Models | 1 |
| 6 | 250000760 | Torx Screw Truss Head K50X20 T20 | 6 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 2 | 250000958 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 705005784 | Front Radiator Grille | 1 |
| 2 | 705006635 | Radiator Grille Bracket | 2 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 1 | 705005983 | LH Rear Radiator Grille | 1 |
| 5 | 293830005 | Rubber Bumper | 5 |
| 1 | 705005984 | RH Rear Radiator Grille | 1 |
| 7 | 517302785 | Edge Clip | 7 |
| 2 | 705011222 | Amber Reflector | 2 |
| 1 | 705004508 | LH Front Facia | 1 |
| 1 | 705004509 | RH Front Facia | 1 |
| 2 | 250000758 | Torx Screw M6 X 25 | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 1 | 705005992 | LH Front Facia Trim | 1 |
| 1 | 705005993 | RH Front Facia Trim | 1 |
| 1 | 705006078 | LH Front Facia Support | 1 |
| 1 | 705006079 | RH Front Facia Support | 1 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
