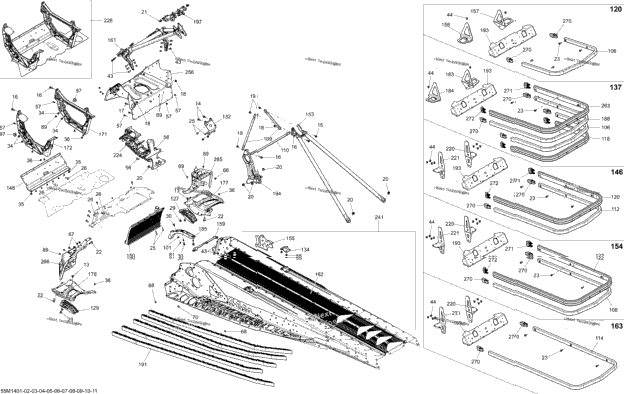

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 | 7 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 3 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 3 |
| 1 | 250000402 | Torx-Truss Screw M6 X 18 | 1 |
| 1 | 250300027 | Clinch Stud M6 X 20 | 1 |
| 1 | 250300038 | Clinch Stud | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 1 | 293150120 | Hemlock Rivet 6.5 mm | 1 |
| 1 | 293150144 | Stavex Rivet | 1 |
| 1 | 293150146 | Henrob Rivet | 1 |
| 1 | 293150147 | Hemlock Rivet | 1 |
| 1 | 293150174 | Hemlock Rivet, 6.4 mm | 1 |
| 1 | 293150182 | Monobolt Rivet 6.4 | 1 |
| 1 | 293150191 | Monobolt Rivet, 4.8 mm | 1 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 293730042 | Full Moon Dart 5 mm | 1 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 3 | 293730053 | Black Dart 5 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 390402400 | Pop Rivet 3/16" Model-SUMMIT | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 2 | 505073317 | Leg Cushion | 2 |
| 1 | 518326049 | Black Rear Bumper, 154" Model-154" North America | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 1 | 518325115 | Center Column Support | 1 |
| 1 | 518326599 | Black Rear Bumper, 146" Model-146" North America | 1 |
| 1 | 518326600 | Black Rear Bumper, 163" Model-163" | 1 |
| 1 | 518327664 | Black Rear Bumper, 146" Model-146" SP Europe | 1 |
| 1 | 518326611 | Black Rear Bumper, 154" Model-154" SP Europe | 1 |
| 1 | 518325782 | RH Deflector, Black Polypropylene | 1 |
| 1 | 518325783 | LH Deflector, Black Polypropylene | 1 |
| 1 | 518325943 | MAG Engine Support | 1 |
| 1 | 518325973 | RH Rear Base | 1 |
| 1 | 518325974 | LH Rear Base | 1 |
| 1 | 518326198 | Front Member | 1 |
| 1 | 518326485 | Front Radiator | 1 |
| 1 | 518326559 | Rear Member | 1 |
| 1 | 518326656 | Seal | 1 |
| 1 | 518327565 | Front Member | 1 |
| 1 | 518326735 | Rear Radiator Ass'y, 163" Model-163" | 1 |
| 518326728 | REAR RADIATOR ASS'Y, 146 Model-SUMMIT 146" | ||
| 1 | 518326692 | Rear Radiator Ass'y, 154" Model-SUMMIT 154" | 1 |
| 1 | 518326795 | RH Member | 1 |
| 1 | 518326796 | LH Member | 1 |
| 1 | 518326937 | RH Reinforcement, Running Board | 1 |
| 1 | 518326938 | LH Reinforcement, Running Board | 1 |
| 1 | 518327472 | RH Roller | 1 |
| 1 | 518327473 | LH Roller | 1 |
| 1 | 518327105 | Rear Cap | 1 |
| 1 | 518327133 | Driven Pulley Support | 1 |
| 1 | 518327145 | Sub A Support | 1 |
| 1 | 518327470 | RH Suspension Bracket | 1 |
| 1 | 518327471 | LH Suspension Bracket Model-163" | 1 |
| 1 | 518327475 | Front Suspension Support | 1 |
| 1 | 518327567 | E Module | 1 |
| 415129839 | BLACK FRAME SUMMIT 163 XM Model-163" | ||
| 415129837 | BLACK FRAME SUMMIT 146 XM Model-SUMMIT 146" | ||
| 1 | 415129838 | Black Frame SUMMIT 154 XM Model-SUMMIT 154" | 1 |
| 1 | 518327721 | S Module | 1 |
| 1 | 518327841 | RH Stirup | 1 |
| 1 | 518327937 | LH Stirup | 1 |
| 2 | 520000840 | BLACK CAP Model-SUMMIT North America | 2 |
| 1 | 520000965 | Black RH Cap Model-146" SP Europe | 1 |
| 1 | 520000964 | Black LH Cap Model-154" SP Europe | 1 |
