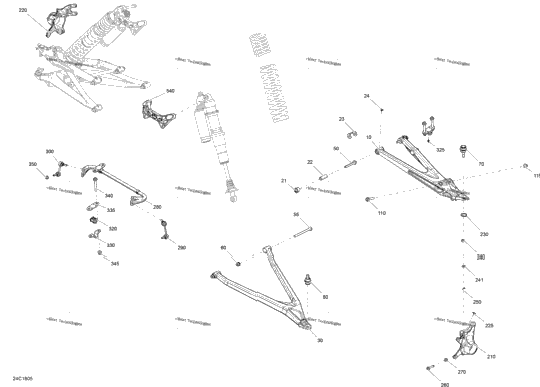

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 706203074 | Red Upper Suspension Arm LH Package XRSDPS Liquid Gold Models | 1 |
| 1 | 706203076 | Black Upper Suspension Arm LH Package XRSDPS Timeless Black Models | 1 |
| 1 | 706203076 | Black Upper Suspension Arm LH Package XRSDPS Platinum Silver Satin Models | 1 |
| 1 | 706203098 | Yellow Upper Suspension Arm LH Package STD Hyper Silver Models | 1 |
| 1 | 706203136 | Black Upper Suspension Arm LH Package XDSDPS | 1 |
| 1 | 706203136 | Black Upper Suspension Arm LH Package STD Bright White Models | 1 |
| 1 | 706203136 | Black Upper Suspension Arm LH Package STD Can-Am Red Models | 1 |
| 1 | 706203075 | Red Upper Suspension Arm RH Package XRSDPS Liquid Gold Models | 1 |
| 1 | 706203077 | Black Upper Suspension Arm RH Package XRSDPS Timeless Black Models | 1 |
| 1 | 706203077 | Black Upper Suspension Arm RH Package XRSDPS Platinum Silver Satin Models | 1 |
| 1 | 706203099 | Yellow Upper Suspension Arm RH Package STD Hyper Silver Models | 1 |
| 1 | 706203137 | Black Upper Suspension Arm RH Package STD Can-Am Red Models | 1 |
| 1 | 706203137 | Black Upper Suspension Arm RH Package STD Bright White Models | 1 |
| 1 | 706203137 | Black Upper Suspension Arm RH Package XDSDPS | 1 |
| 16 | 706201659 | Cushion | 16 |
| 8 | 706202257 | Interior Bushing | 8 |
| 8 | 706202300 | Wear Plate | 8 |
| 8 | 293550056 | Grease Fitting 90° | 8 |
| 1 | 706202706 | Black, LH Lower Arm Package XRSDPS | 1 |
| 1 | 706202919 | Deep Black, LH Lower Arm Package XDSDPS | 1 |
| 1 | 706202919 | Deep Black, LH Lower Arm Package STD | 1 |
| 1 | 706202707 | Black, RH Lower Arm Package XRSDPS | 1 |
| 1 | 706202920 | Deep Black, RH Lower Arm Package STD | 1 |
| 1 | 706202920 | Deep Black, RH Lower Arm Package XDSDPS | 1 |
| 4 | 250000859 | Flange Screw M12 X 85 | 4 |
| 4 | 250000861 | Flange Screw M12 X 145 | 4 |
| 8 | 233221466 | Elastic Flange Nut M12 | 8 |
| 2 | 706203084 | Ball Joint | 2 |
| 2 | 706202045 | Ball Joint | 2 |
| 2 | 250000857 | Flange Screw M12 X 60 | 2 |
| 4 | 233221466 | Elastic Flange Nut M12 | 4 |
| 1 | 706202759 | LH Knuckle | 1 |
| 1 | 706202760 | RH Knuckle | 1 |
| 2 | 706202502 | Wear Plate | 2 |
| 4 | 293370035 | Circlip | 4 |
| 2 | 250100099 | Nut M12 | 2 |
| 2 | 250200086 | Flat Washer | 2 |
| 2 | 211400017 | Cotter Pin | 2 |
| 2 | 207605044 | Hex. Flange Screw M10 X 50 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 706202454 | Sway Bar | 1 |
| 1 | 706202764 | Link Stabilizer Bar LH | 1 |
| 1 | 706202765 | Link Stabilizer Bar RH | 1 |
| 2 | 706202849 | Bushing | 2 |
| 2 | 293550056 | Grease Fitting 90° | 2 |
| 2 | 706202460 | Clamp | 2 |
| 2 | 706202551 | Support Plate | 2 |
| 4 | 250000876 | Hex. Flange Screw M12 X 95 | 4 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 | 4 |
| 4 | 234201474 | Conical Spring Washer 10 mm | 4 |
| 1 | 706202708 | Black, Link Deep Black Cab | 1 |
| 1 | 706202709 | Red Link Can-Am Red Cab | 1 |
