Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.
Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

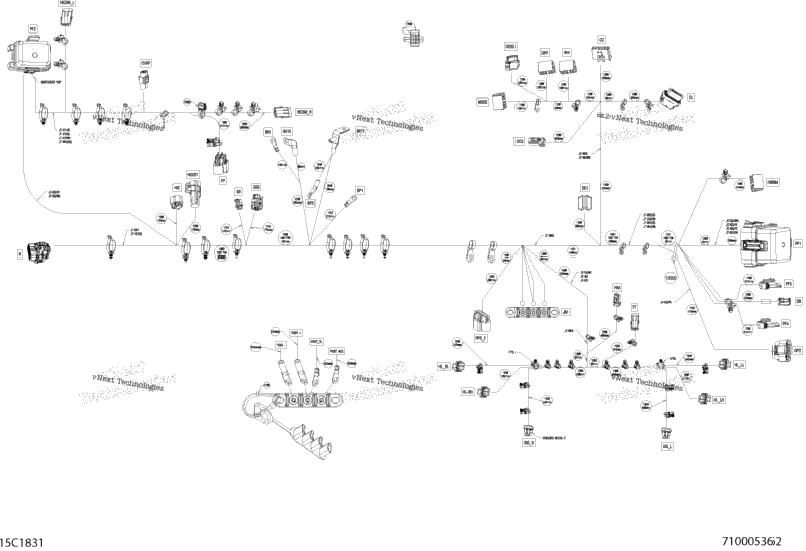

| 1 | 710005362 | Main Harness Ass'y | 1 |
| 1 | 710006075 | Label | 1 |
| 1 | 710002000 | Housing | 1 |
| 1 | 710005491 | Female Terminal | 1 |
| 1 | 710003047 | Terminal | 1 |
| 1 | 710001591 | Cover, 48 positions | 1 |
| 1 | 710001588 | Female Terminal Housing, 48 Circuits | 1 |
| 1 | 710001592 | Plug | 1 |
| 1 | 710001593 | Plug | 1 |
| 1 | 710001727 | Female Terminal | 1 |
| 1 | 710001728 | Terminal | 1 |
| 1 | 710001589 | Female Terminal | 1 |
| 1 | 710000475 | TERMINAL_FEMALE | 1 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 278000992 | Open Barrel | 1 |
| 1 | 710000849 | Male Housing, 6 Circuits | 1 |
| 1 | 710000848 | Lock | 1 |
| 1 | 710000274 | Female Terminal | 1 |
| 1 | 710001635 | Terminal | 1 |
| 1 | 515175801 | Female Housing, 24 Circuits | 1 |
| 1 | 515175802 | Retainer Block | 1 |
| 1 | 515175812 | Plug | 1 |
| 1 | 710000399 | Female Housing | 1 |
| 1 | 515175803 | Wire Seal | 1 |
| 1 | 710001131 | Female Terminal | 1 |
| 1 | 409012700 | Diode | 1 |
| 1 | 710002706 | Female Housing 6 Circuits | 1 |
| 1 | 710002705 | Lock | 1 |
| 1 | 710005437 | Plug | 1 |
| 1 | 710005438 | Female Terminal | 1 |
| 1 | 710005439 | Female Terminal | 1 |
| 278001661 | FEMALE TERMINAL | ||
| 1 | 710005373 | Housing | 1 |
| 1 | 710005952 | Female Terminal | 1 |
| 1 | 515175658 | Female Housing, 2 Circuits | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 710000667 | Male Housing, 2 Circuits | 1 |
| 1 | 710001161 | Housing | 1 |
| 1 | 710001162 | Lock | 1 |
| 1 | 710001225 | Cap | 1 |
| 1 | 710001163 | Wire Seal | 1 |
| 1 | 710001164 | Female Terminal | 1 |
| 1 | 710006076 | Label | 1 |
| 1 | 710002003 | Housing Connector | 1 |
| 1 | 710004989 | Female Housing | 1 |
| 1 | 710005098 | Lock | 1 |
| 1 | 710001222 | Lock | 1 |
| 1 | 710002075 | Plug | 1 |
| 1 | 278002186 | Wire Seal | 1 |
| 1 | 710003153 | Seal | 1 |
| 1 | 278002187 | Female Terminal | 1 |
| 1 | 710001873 | Terminal | 1 |
| 1 | 710000402 | Wire Seal | 1 |
| 1 | 409012100 | Female Terminal | 1 |
| 1 | 715002538 | Fuse Link 41-50AMP | 1 |
| 1 | 278002185 | Male Housing, 4 Circuits | 1 |
| 1 | 710003896 | Female Terminal | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 409210100 | Clip Bracket Connector (edge) | 1 |
| 1 | 710002466 | Housing | 1 |
| 1 | 710002469 | Lock | 1 |
| 1 | 278001482 | Seal | 1 |
| 1 | 710002597 | Gold Terminal | 1 |
| 1 | 710006074 | Label | 1 |
| 1 | 710002001 | Housing Connector | 1 |
| 1 | 710003048 | Terminal | 1 |
| 1 | 710001928 | Housing | 1 |
| 1 | 710001332 | Seal Wire | 1 |
| 1 | 710001233 | Seal | 1 |
| 1 | 710001229 | Terminal | 1 |
| 1 | 710001228 | Terminal | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 278001065 | Wire Seal | 1 |
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 710002578 | Housing | 1 |
| 1 | 710002584 | Lock | 1 |
| 1 | 710001427 | Wire Seal | 1 |
| 1 | 278002578 | Female Terminal | 1 |
| 1 | 710004826 | Cover | 1 |
| 1 | 710004825 | 3-Positions Pole | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 710006077 | Pictogram Label | 1 |
| 1 | 710002002 | Housing Connector | 1 |
| 1 | 278003553 | Fuse Cover | 1 |
| 1 | 710005773 | Fuse Box Decal | 1 |
| 1 | 278003448 | Fuse Base Ass'y | 1 |
| 1 | 710005671 | Housing Support | 1 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 293300198 | Seal | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 1 | 710000048 | Wire Seal | 1 |
| 1 | 515177177 | Female Terminal | 1 |
| 1 | 710000918 | Female Terminal | 1 |
| 1 | 710000744 | Little Fuse, 10 Amperes | 1 |
| 1 | 710000746 | Little Fuse, 20 Amperes | 1 |
| 1 | 515176774 | Relay, 30 AMP | 1 |
| 1 | 710001778 | Relay | 1 |
| 1 | 515176775 | Relay, 50 AMP | 1 |
| 1 | 515177451 | Fuse Box Cover | 1 |
| 1 | 710006106 | Logo Fuse Relay | 1 |
| 1 | 278002824 | Case Ass'y with seal, 24 positions | 1 |
| 1 | 710002590 | Fuse, 25 Amps | 1 |
| 1 | 278001325 | Fuse Holder | 1 |
| 1 | 710000113 | Female Terminal | 1 |
| 1 | 710001613 | Fuse | 1 |
| 1 | 710000357 | Female Terminal | 1 |
| 1 | 710001232 | Housing | 1 |
| 1 | 710002177 | Housing | 1 |
| 1 | 710002043 | Lock | 1 |
| 1 | 710001134 | Female Terminal | 1 |
| 1 | 710005321 | Female Housing | 1 |
| 1 | 515177192 | Female Housing, 2 Circuits | 1 |
| 1 | 710001153 | Seal Wire | 1 |
