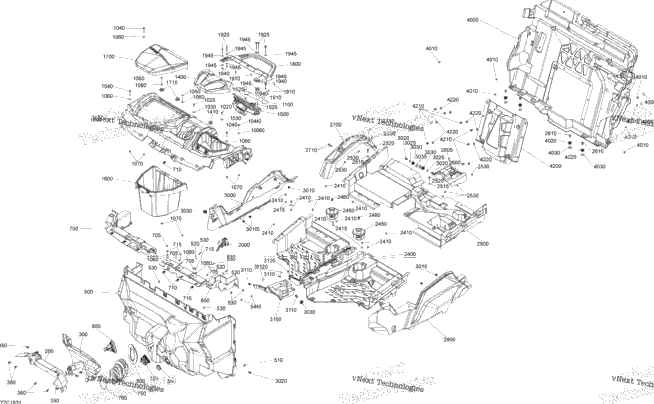

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705012497 | Front Upper Heat Deflector | 1 |
| 1 | 705012498 | Front Lower Heat Deflector | 1 |
| 8 | 293150230 | Tuflok Plastic Rivet | 8 |
| 1 | 707900512 | Lower Front Bulkhead | 1 |
| 2 | 250000721 | Torx Truss Screw M6 X 16 | 2 |
| 6 | 250200044 | Flat Washer M6 X 25 | 6 |
| 12 | 293150100 | Pop Rivet 3/16" | 12 |
| 4 | 250200025 | Washer M5 | 4 |
| 1 | 293250242 | Rubber Cover | 1 |
| 1 | 707900513 | LH Upper Front Bulkhead | 1 |
| 1 | 707900514 | RH Upper Front Bulkhead | 1 |
| 6 | 293150100 | Pop Rivet 3/16" | 6 |
| 7 | 250000957 | Extruded Panel Nut M6 | 7 |
| 6 | 250000722 | Torx Screw M6 X 20 | 6 |
| 1 | 707900510 | Steering Column Deflector | 1 |
| 1 | 707900515 | Break Pedal Deflector | 1 |
| 1 | 514052983 | Norma Gear Clamp | 1 |
| 1 | 707900516 | Gas Pedal Deflector | 1 |
| 1 | 707900517 | Front Rubber Deflector | 1 |
| 1 | 715004999 | Dashboard | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 250200162 | Flat Washer M6.6 X 22 | 2 |
| 4 | 207664044 | Hex. Flange Screw M6 X 40 | 4 |
| 2 | 250000868 | Torx Truss M6 X 50 | 2 |
| 12 | 234062670 | Stainless Steel Flat Washer | 12 |
| 6 | 233261466 | Hex. Flange Elastic Nut M6 | 6 |
| 1 | 707900519 | Dash Support | 1 |
| 1 | 707900522 | Storage Cover | 1 |
| 1 | 517303756 | Grommet | 1 |
| 1 | 707900523 | Switch Support | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 715005011 | Glove Box | 1 |
| 1 | 715005006 | Glove Box Cover Except North America | 1 |
| 1 | 715005009 | Glove Box Cover North America | 1 |
| 2 | 707900663 | Oblong Grommet | 2 |
| 1 | 707900559 | Passenger Handle Bar Kit | 1 |
| 5 | 250000720 | Torx Screw K50 X 16 | 5 |
| 2 | 207064544 | Hex. Screw M6 X 45 | 2 |
| 2 | 250000778 | Hex. Flange Screw M6 X 60 | 2 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 8 | 234062670 | Stainless Steel Flat Washer | 8 |
| 1 | 707900531 | Front Cage Trim Kit | 1 |
| 1 | 707900533 | Front Floor | 1 |
| 13 | 293150104 | Pop Rivet 3/16" | 13 |
| 2 | 707900532 | Cup Holder | 2 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 707900534 | Rear Floor | 1 |
| 2 | 207662554 | Hex. Flange Screw M6 X 25 | 2 |
| 7 | 293150104 | Pop Rivet 3/16" | 7 |
| 1 | 707900538 | Belt Cover | 1 |
| 1 | 250000721 | Torx Truss Screw M6 X 16 | 1 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 1 | 707900537 | Central Console | 1 |
| 3 | 250000721 | Torx Truss Screw M6 X 16 | 3 |
| 1 | 715005013 | LH Lateral Console Panel | 1 |
| 1 | 707900540 | RH Lateral Console Panel | 1 |
| 6 | 517306478 | Clip | 6 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 4 | 503192494 | Washer | 4 |
| 4 | 707900133 | Insert | 4 |
| 4 | 503189273 | Washer | 4 |
| 1 | 707900545 | Passenger Footrest | 1 |
| 3 | 250000957 | Extruded Panel Nut M6 | 3 |
| 3 | 250000722 | Torx Screw M6 X 20 | 3 |
| 1 | 707900550 | Rear Bulkhead | 1 |
| 12 | 293150104 | Pop Rivet 3/16" | 12 |
| 1 | 707900552 | Maintenance Cover | 1 |
| 8 | 503192494 | Washer | 8 |
