Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

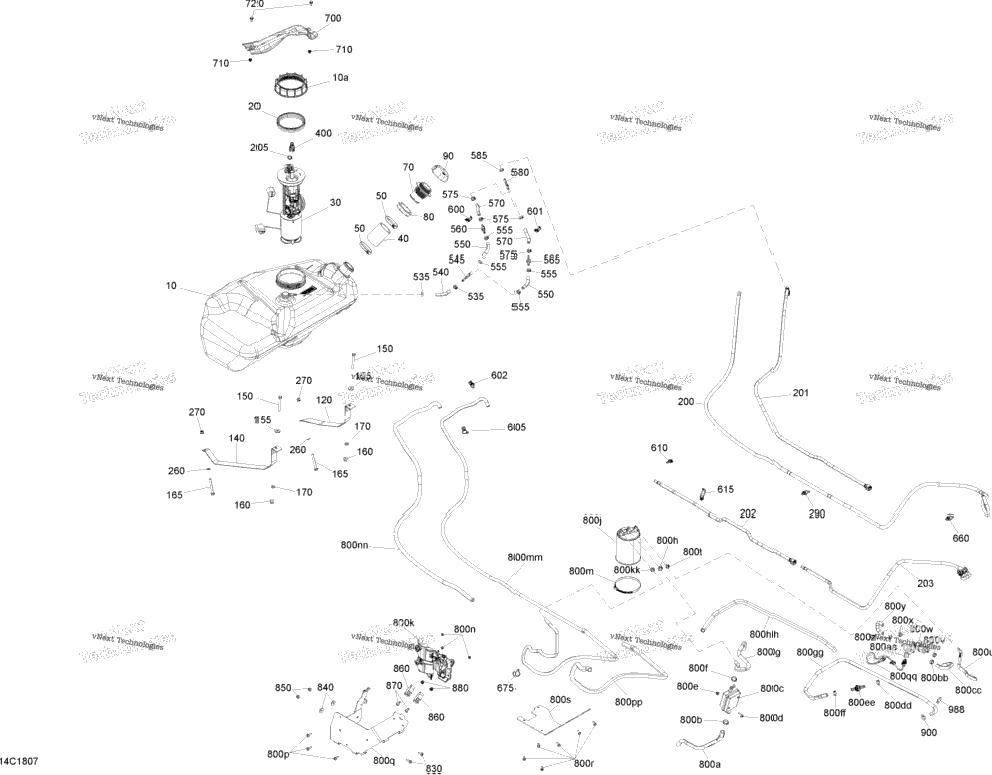

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709000706 | Fuel Tank Includes 10 to 10a | 1 |
| 1 | 250100062 | Special Nut M130 | 1 |
| 1 | 293250173 | Gasket | 1 |
| 1 | 709000836 | Fuel Pump Turbo & 900HO | 1 |
| 1 | 709000979 | Fuel Pump Turbo R | 1 |
| 1 | 270600113 | Fuel Filter Turbo & 900HO | 1 |
| 1 | 270600108 | Fuel Filter Turbo R | 1 |
| 1 | 715900424 | Fuel Sender | 1 |
| 1 | 709000748 | Filler Neck | 1 |
| 2 | 293650081 | Norma Clamp | 2 |
| 1 | 709000867 | Filler Neck | 1 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 709000868 | Fuel Cap | 1 |
| 1 | 709000910 | Fuel Tank Strap | 1 |
| 1 | 709000911 | Fuel Tank Strap | 1 |
| 2 | 207187544 | Hex. Screw, M8 X 75 | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 207686544 | Hex. Flange Screw, M8 X 65 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 1 | 709000908 | Hose | 1 |
| 1 | 709000987 | Formed Hose EVAP | 1 |
| 1 | 709000989 | Formed Hose EVAP | 1 |
| 1 | 709001059 | Formed Hose EVAP | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 293650042 | Oetiker Clamp EVAP | 2 |
| 1 | 219704442 | Was 709000667 Hose EVAP | 1 |
| 1 | 293710059 | Y-Fitting EVAP | 1 |
| 4 | 293650042 | Oetiker Clamp EVAP | 4 |
| 1 | 513033469 | Check Valve EVAP | 1 |
| 1 | 275500398 | Check Valve EVAP | 1 |
| 1 | 293650042 | Oetiker Clamp EVAP | 1 |
| 1 | 293750063 | Clip Tie-Rap EVAP | 1 |
| 1 | 710005037 | Clip Tie-Rap EVAP | 1 |
| 1 | 293750008 | Tie Wrap 368 mm EVAP | 1 |
| 1 | 710005037 | Clip Tie-Rap | 1 |
| 1 | 710005180 | Tie-Rap Clip EVAP | 1 |
| 1 | 707900594 | Connector Protector | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 709000869 | Formed Hose EVAP | 1 |
| 1 | 293650186 | Oetiker Clamp EVAP | 1 |
| 1 | 709000524 | Air Filter EVAP | 1 |
| 1 | 207662054 | Hex. Flange Screw M6 X 20 EVAP&SHIFT&M-903NA | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 EVAP&S-MAX&M-903TC | 1 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 EVAP | 1 |
| 1 | 709000870 | Formed Hose EVAP | 1 |
| 1 | 293650053 | Crimp Clamp EVAP | 1 |
| 1 | 709000806 | Vapor Canister EVAP | 1 |
| 1 | 709000851 | Canister Support EVAP | 1 |
| 1 | 293650054 | Tridon Clamp EVAP | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 EVAP | 3 |
| 3 | 250000712 | Torx Screw M6 X 20 EVAP | 3 |
| 1 | 709000955 | Primary Support EVAP | 1 |
| 6 | 210261250 | Hex. Flange Screw M6 X 12 EVAP | 6 |
| 1 | 709000956 | Secondary Support EVAP | 1 |
| 1 | 709000853 | Formed Hose EVAP | 1 |
| 1 | 293650046 | Oetiker Clamp EVAP | 1 |
| 1 | 709000100 | Fuel Filter EVAP | 1 |
| 1 | 293650047 | Crimp Clamp, 15.3-706R EVAP | 1 |
| 1 | 709000857 | Formed Hose EVAP | 1 |
| 1 | 709000443 | Bleed Valve EVAP | 1 |
| 1 | 709000873 | Formed Hose EVAP | 1 |
| 1 | 275500941 | Check Valve EVAP | 1 |
| 1 | 219704441 | Hose 3000MM Long EVAP | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long EVAP | 1 |
| 1 | 293750002 | Tie Wrap 142 mm EVAP | 1 |
| 1 | 710005718 | Purge Valve Cable EVAP | 1 |
| 2 | 250000712 | Torx Screw M6 X 20 EVAP | 2 |
| 2 | 250200162 | Flat Washer M6.6 X 22 EVAP | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 EVAP | 2 |
| 2 | 293850132 | Open Clamp EVAP | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 EVAP | 2 |
| 1 | 293650214 | Norma Spring Clamp | 1 |
