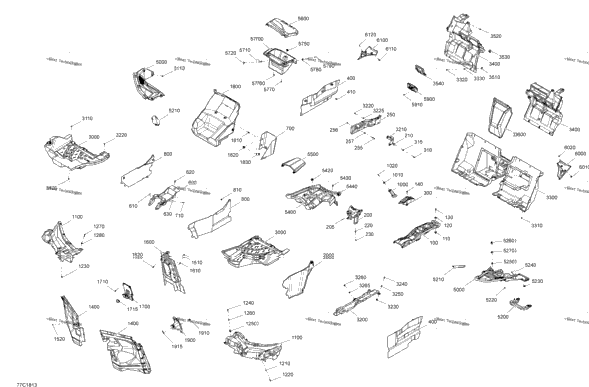

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715004068 | Front Console Kit | 1 |
| 2 | 707900133 | Insert | 2 |
| 2 | 503189273 | Washer | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 3 | 250000722 | Torx Screw M6 X 20 | 3 |
| 1 | 707900459 | Front Central Console Support | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 12 | 250000957 | Extruded Panel Nut M6 | 12 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 293450274 | Insert | ||
| 1 | 707900488 | Shifter Gate Support | 1 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 707900644 | Lever Indicator | 1 |
| 7 | 250000722 | Torx Screw M6 X 20 | 7 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 707900396 | LH Lateral Dash Panel | 1 |
| 1 | 707900397 | RH Lateral Dash Panel | 1 |
| 3 | 705010721 | Clip | 3 |
| 1 | 707900460 | Front Top Console | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 1 | 707900473 | Cover Central Console | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 707900398 | LH Lateral Console Panel | 1 |
| 1 | 707900399 | RH Lateral Console Panel | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900337 | LH Front Upper Deflector | 1 |
| 1 | 707900338 | RH Front Upper Deflector | 1 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 3 | 250000957 | Extruded Panel Nut M6 | 3 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 | 2 |
| 1 | 707900341 | LH Front Bulkhead | 1 |
| 1 | 707900342 | RH Front Bulkhead | 1 |
| 14 | 293150104 | Pop Rivet 3/16" | 14 |
| 10 | 250000957 | Extruded Panel Nut M6 | 10 |
| 1 | 707900407 | Front Bulkhead Panel | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 3 | 293150089 | Tuflok Plastic Rivet | 3 |
| 1 | 707900474 | Rubber Deflector | 1 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 707900410 | RH Lower Dash Panel | 1 |
| 3 | 707900133 | Insert | 3 |
| 3 | 503189273 | Washer | 3 |
| 1 | 707900427 | Cover Steering Column | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 707900477 | Side Panel Cover | 1 |
| 1 | 707900339 | LH Front Floor | 1 |
| 1 | 707900340 | RH Front Floor | 1 |
| 13 | 293150104 | Pop Rivet 3/16" | 13 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 707900428 | Hose Support | 1 |
| 1 | 707900478 | Cable Support | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 1 | 707900345 | Lower Rear Bulkhead | 1 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 6 | 250000722 | Torx Screw M6 X 20 | 6 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 1 | 707900632 | LH Upper Rear Bulkhead | 1 |
| 1 | 707900441 | RH Upper Rear Bulkhead | 1 |
| 6 | 250000957 | Extruded Panel Nut M6 | 6 |
| 2 | 705010718 | Grommet | 2 |
| 1 | 707900652 | Bulkhead Cover | 1 |
| 4 | 707900486 | Bulkhead Cover | 4 |
| 1 | 707900649 | Middle Upper Rear Bulkhead | 1 |
| 1 | 715005325 | LH Dashboard Kit North America Models | 1 |
| 1 | 715005326 | LH Dashboard Kit Internationnal Models | 1 |
| 1 | 707900348 | RH Dash | 1 |
| 10 | 234062670 | Stainless Steel Flat Washer | 10 |
| 1 | 707900479 | Dash Support | 1 |
| 1 | 707900465 | LH Speaker Cover | 1 |
| 1 | 707900590 | RH Speaker Cover | 1 |
| 8 | 517302785 | Edge Clip | 8 |
| 12 | 250000722 | Torx Screw M6 X 20 | 12 |
| 5 | 293150089 | Tuflok Plastic Rivet | 5 |
| 5 | 707900133 | Insert | 5 |
| 5 | 503189273 | Washer | 5 |
| 1 | 707900682 | Central Dash | 1 |
| 1 | 517303756 | Grommet | 1 |
| 1 | 707900598 | Key Protector | 1 |
| 1 | 707900400 | Dash Cover | 1 |
| 1 | 715004067 | Glove Box Cover Kit | 1 |
| 1 | 707900350 | Glove Box | 1 |
| 2 | 250000868 | Torx Truss M6 X 50 | 2 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 707900502 | Central Mirror | 1 |
| 1 | 207661654 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 707900507 | Warning Label Plate | 1 |
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 707900574 | Warning Label Plate | 1 |
| 1 | 707900615 | LH Shoulder Pad | 1 |
| 1 | 707900616 | RH Shoulder Pad | 1 |
| XXXX | Not Available As Spare Part - Non Applicable Not Shown |
