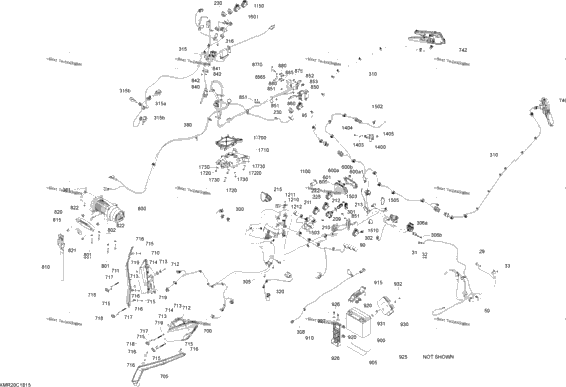

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004863 | Starter Cable | 1 |
| 1 | 710004492 | Light Switch | 1 |
| 1 | 710002052 | Switch Winch | 1 |
| 1 | 710006040 | Differential Switch | 1 |
| 1 | 710005925 | Diffrrential Mode Switch | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 515178225 | DESS Switch, RFID | 1 |
| 1 | 710001781 | Switch DPS | 1 |
| 1 | 710004964 | Grey Key RFID | 1 |
| 1 | 710005232 | Green Key RFID | 1 |
| 1 | 710005213 | Start-Stop Button | 1 |
| 1 | 710005909 | Driving Mode Switch | 1 |
| 1 | 710002053 | Switch, Over ride | 1 |
| 3 | 710001999 | Plug Carling | 3 |
| 1 | 710005788 | Harness-Ass'y Includes 300 to 300a | 1 |
| 1 | 710005971 | FUSES DECAL | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 2 | 250000959 | Screw PT Type K-50 X 16 | 2 |
| 1 | 710005956 | Connector Plug Turbo R | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits Turbo R | 1 |
| 2 | 278000216 | Wire Seal Turbo R | 2 |
| 2 | 710004776 | Rear Harness | 2 |
| 1 | 710005778 | Diff Harness Includes 315 to 315b | 1 |
| 1 | 710005774 | Housing Cap | 1 |
| 1 | 710005775 | Housing Cap | 1 |
| 1 | 250000959 | Screw PT Type K-50 X 16 | 1 |
| 1 | 710006086 | WIRING HARNESS DIFF Not Shown | 1 |
| 1 | 710005291 | Cable Throttle Pedal | 1 |
| 1 | 710005815 | Winch Cable | 1 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 1 | 710005717 | Speedometer Includes 600 to 600a | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 710004658 | LH Low Beam Ass'y | 1 |
| 1 | 710004994 | LH Signature Beam | 1 |
| 1 | 710004659 | RH Low Beam Ass'y | 1 |
| 1 | 710004995 | RH Signature Beam | 1 |
| 2 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 | 2 |
| 4 | 710004749 | Shoulder Bushing | 4 |
| 2 | 293720053 | Grommet | 2 |
| 10 | 250000720 | Torx Screw K50 X 16 | 10 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 4 | 710005837 | Ajustment Screw | 4 |
| 4 | 710005097 | Adjustment Guide | 4 |
| 4 | 293300192 | O-Ring | 4 |
| 1 | 710004743 | LH Tail Light | 1 |
| 1 | 710004744 | RH Tail Light | 1 |
| 1 | 710005659 | Winch | 1 |
| 4 | 205082544 | Socket Head Screw M8 X 25 | 4 |
| 4 | 234181401 | Lock Washer 8 mm | 4 |
| 3 | 715003523 | Hook and Strap kit | 3 |
| 1 | 710005142 | Winch Cable Stopper | 1 |
| 1 | 715004449 | Winch Cable Guide Ass'y | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 710004823 | Winch Remote Connector | 1 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 1 | 703500947 | Solenoid | 1 |
| 6 | 232561200 | Elastic Stop Nut M6, Brass | 6 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 710004772 | Power Bar | 1 |
| 1 | 710004872 | Power Bar | 1 |
| 1 | 710004873 | Power Bar | 1 |
| 2 | 703500948 | Breaker 50 Amp | 2 |
| 4 | 250100071 | Hex. Flange Nut M5 | 4 |
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 2 | 293830126 | Rubber Pad | 2 |
| 1 | 710004788 | Fixation Plate | 1 |
| 1 | 710004789 | Fixation Plate | 1 |
| 4 | 705003666 | Rubber Grommet | 4 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 710005568 | Voltage Regulator | 1 |
| 1 | 710005782 | Bracket | 1 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 710005374 | 12V Power Outlet | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 391301600 | Washer | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 293750058 | 2-Pieces Fixing Tie Rap for Edges | 1 |
| 1 | 710004663 | Front Drive Module | 1 |
| 1 | 710005807 | FDM Support | 1 |
| 5 | 250000959 | Screw PT Type K-50 X 16 | 5 |
| 5 | 250200025 | Washer M5 | 5 |
