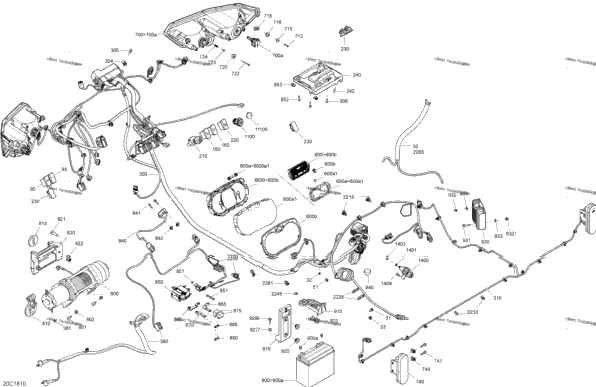

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710005331 | Negative Cable Engine HD5 | 1 |
| 1 | 710005512 | Negative Cable Engine HD8, HD10 | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004492 | Light Switch | 1 |
| 1 | 710002052 | Switch Winch Except BASE Package | 1 |
| 1 | 710005489 | Switch 2X4 | 1 |
| 1 | 710005470 | Differential Lock Switch Except BASE Package | 1 |
| 1 | 710004198 | Ignition Switch With Keys | 1 |
| 1 | 710005739 | Key Switch Protector | 1 |
| 1 | 710004532 | Driving Mode Switch Package PRO and XT | 1 |
| 1 | 710001999 | Plug Carling | 1 |
| 1 | 710004741 | Housing Support | 1 |
| 5 | 250000959 | Screw PT Type K-50 X 16 | 5 |
| 1 | 710005722 | Harness-Ass'y | 1 |
| 1 | 710005760 | DPS Connector Cap Package BASE and STD | 1 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
| 1 | 710004458 | Rear Harness | 1 |
| 1 | 710005774 | Housing Cap | 1 |
| 1 | 710005775 | Housing Cap | 1 |
| 1 | 710005713 | Switch's Connector | 1 |
| 1 | 710004465 | Winch Harness Package PRO and XT | 1 |
| 2 | 232561434 | Elastic Stop Nut M6 Package PRO and XT | 2 |
| 1 | 710005553 | Speedometer Package DPS, BASE and STD | 1 |
| 1 | 710001183 | Trim Ring Ass'y Package DPS, BASE and STD | 1 |
| 1 | 704904615 | BRP Logo13 mm Package DPS, BASE and STD | 1 |
| 1 | 715900265 | Button Package DPS, BASE and STD | 1 |
| 1 | 710005719 | Speedometer Package PRO and XT | 1 |
| 1 | 415129349 | Lens Package PRO and XT | 1 |
| 1 | 415129355 | Speedometer Button Package PRO and XT | 1 |
| 1 | 710005729 | LH Beam Ass'y Includes 700 to 700a | 1 |
| 1 | 710005730 | RH Beam Ass'y Includes 710 to 710a | 1 |
| 2 | 219800149 | Halogen Bulb H8 12V 35W | 2 |
| 4 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 | 4 |
| 8 | 710004749 | Shoulder Bushing | 8 |
| 4 | 293720053 | Grommet | 4 |
| 2 | 572106600 | Handle | 2 |
| 2 | 250000718 | Hex. Screw K40 X 45 | 2 |
| 2 | 517168600 | Spring Includes 724 to 724a | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 710004257 | Tail Light Package PRO and XT | 2 |
| 2 | 710004497 | Tail Light Package DPS, BASE and STD | 2 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 4 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 1 | 710005731 | Winch Package PRO and XT | 1 |
| 4 | 205083044 | Socket Head Screw M8 X 30 Package PRO and XT | 4 |
| 4 | 234181401 | Lock Washer 8 mm Package PRO and XT | 4 |
| 1 | 715003523 | Hook and Strap kit Package PRO and XT | 1 |
| 1 | 710005142 | Winch Cable Stopper Package PRO and XT | 1 |
| 1 | 710004822 | Winch Cable Guide Package PRO and XT | 1 |
| 2 | 205003044 | Socket Screw M10 x 30 Package PRO and XT | 2 |
| 2 | 233201414 | Hex. Flange Elastic Nut M10 Package PRO and XT | 2 |
| 1 | 710004823 | Winch Remote Connector Package PRO and XT | 1 |
| 2 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip Package PRO and XT | 2 |
| 2 | 250000958 | Panel Nut M5 X 0.8 Package PRO and XT | 2 |
| 1 | 703500947 | Solenoid Package PRO and XT | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 710004772 | Power Bar Package PRO and XT | 1 |
| 1 | 710004872 | Power Bar Package PRO and XT | 1 |
| 1 | 710004873 | Power Bar Package PRO and XT | 1 |
| 2 | 703500948 | Breaker 50 Amp Package PRO and XT | 2 |
| 4 | 250100071 | Hex. Flange Nut M5 Package PRO and XT | 4 |
| 4 | 234161601 | Lock Washer Helical M6 Package PRO and XT | 4 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Package DPS, BASE and STD | 1 |
| 1 | 250000282 | Battery Bolt Kit Package DPS, BASE and STD | 1 |
| 1 | 515176151 | Battery Package PRO and XT | 1 |
| 1 | 515176081 | Battery Bolt Kit Package PRO and XT | 1 |
| 1 | 710004788 | Fixation Plate | 1 |
| 1 | 710004789 | Fixation Plate | 1 |
| 4 | 705003666 | Rubber Grommet | 4 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 515177325 | Voltage Regulator Engine HD5 | 1 |
| 1 | 710005568 | Voltage Regulator Engine HD8 & HD10 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 708001827 | Rubber Stopper | 1 |
| 2 | 710001248 | DC Outlet | 2 |
| 1 | 710005374 | 12V Power Outlet Package Hunter | 1 |
| 1 | 710004993 | Cap Package DPS, BASE and STD | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750058 | 2-Pieces Fixing Tie Rap for Edges | 1 |
| 1 | 710003168 | Dart Tie Rap 200MM | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip Engine HD10 | 1 |
| 1 | 210261650 | Hex. Flange Screw M6 X 16 Engine HD8 | 1 |
| 1 | 710005237 | Christmas Tree Tie-Rap | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
