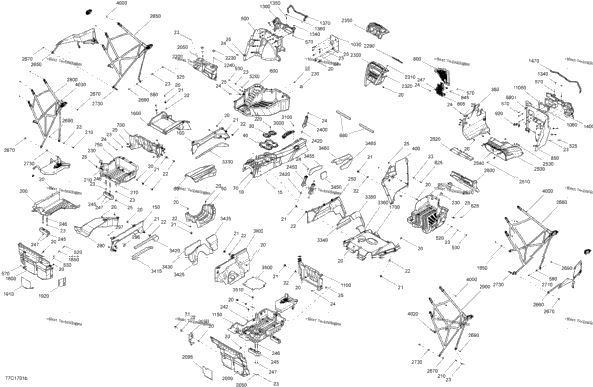

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715004114 | Front Console Ass'y North America Except Package LTD | 1 |
| 1 | 715004115 | Front Console Ass'y North America Package LTD | 1 |
| 1 | 715004329 | Front Console Ass'y International Except Package LTD | 1 |
| 1 | 715004332 | Front Console Ass'y International Package LTD | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 3 | 732610072 | Push Nut Package LTD | 3 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 707900133 | Insert | 1 |
| 1 | 503189273 | Washer | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 4 | 707900036 | Cup Retainer | 4 |
| 1 | 707900100 | Cup Holder | 1 |
| 1 | 707900075 | Rear Central Console | 1 |
| 1 | 707900229 | Rear Console Cover Kit | 1 |
| 1 | 517303756 | Grommet | 1 |
| 1 | 707900001 | LH Side Console | 1 |
| 1 | 707900391 | Rear LH consol | 1 |
| 1 | 707900387 | Under cover | 1 |
| 4 | 207662054 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 293250242 | Rubber Cover | 4 |
| 7 | 506151252 | Washer | 7 |
| 6 | 707900099 | Support Plate | 6 |
| 12 | 207667056 | Hex. Flange Screw M6 X 70 | 12 |
| 293450274 | Insert | ||
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900388 | Rear Floor cap | 1 |
| 705205445 | INSERT SUPPORT | ||
| 1 | 293150103 | Pop Rivet 3/16" | 1 |
| 1 | 707900080 | RH Rear Console Panel | 1 |
| 1 | 707900193 | Front Side Dash Panel | 1 |
| 1 | 707900021 | RH Fixe Side Console Except Package LTD | 1 |
| 1 | 707900098 | RH Fixe Side Console Package LTD | 1 |
| 1 | 707900175 | LH Front Upper Floor | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 | 1 |
| 1 | 250000758 | Torx Screw M6 X 25 | 1 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 1 | 707900022 | LH Lower Floor | 1 |
| 4 | 250000807 | Torx Truss Screw M6 X 25 | 4 |
| 1 | 293250318 | SEAL TRAY | 1 |
| 1 | 707900082 | LH Rear Upper Floor Cover | 1 |
| 1 | 707900331 | Rear Floor | 1 |
| 1 | 707900178 | Grille | 1 |
| 1 | 707900180 | Grille | 1 |
| 3 | 250000843 | Torx Truss Screw M6 X 30 | 3 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900125 | DEFLECTOR | 1 |
| 1 | 293250252 | Upper Seal | 1 |
| 1 | 293250253 | Bottom Seal | 1 |
| 1 | 707900083 | Seat Cover | 1 |
| 1 | 707900231 | RH Lower Rear Floor | 1 |
| 1 | 707900029 | SUPPORT_PANEL LH | 1 |
| 2 | 224060201 | Flat Washer | 2 |
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 2 | 224061201 | Flat Washer | 2 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 707900030 | SUPPORT_PANEL RH | 1 |
| 1 | 707900130 | Under Seat Cover | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900220 | DEFLECTOR_BODY PANEL REAR L | 1 |
| 4 | 250200040 | Flat Washer | 4 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900219 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 3 | 250000760 | Torx Screw Truss Head K50X20 T20 | 3 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 2 | 705003841 | Support Plate | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim Package LTD | 1 |
| 1 | 715002178 | Central Dashboard Ass'y Except Package LTD | 1 |
| 1 | 715002187 | Central Dashboard Ass'y Package LTD | 1 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 1 | 707900066 | Gauge Support Package LTD | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 3 | 707900048 | Connector Tube | 3 |
| 2 | 707900103 | Handle | 2 |
| 1 | 707900009 | Storage Bin Package DPS | 1 |
| 1 | 707900046 | Storage Bin Package XT | 1 |
| 1 | 707900046 | Storage Bin Package LTD | 1 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 | 2 |
| 3 | 414859400 | CAP | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 707900221 | Luggage Cover Kit | 1 |
| 1 | 707900031 | Latch | 1 |
| 1 | 707900038 | Trim Glove Box | 1 |
| 1 | 707900237 | Front LH Safety Net Include Buckle 715900398 | 1 |
| 1 | 707900238 | Front RH Safety Net Include Buckle 715900398 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 1 | 707900239 | Rear LH Safety Net | 1 |
| 1 | 707900240 | Rear RH Safety Net | 1 |
| 1 | 707900088 | Shift Lever Indicator | 1 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 707900044 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900045 | RH Lateral Console Foam | 1 |
| 1 | 707900055 | RH Lateral Console Foam | 1 |
| 1 | 707900056 | RH Lateral Console Foam | 1 |
| 1 | 707900333 | ACOUSTIC FOAM | 1 |
| 1 | 707900120 | Acoustic Foam | 1 |
| XXXX | Not Available As Spare Part - Acoustic Foam | ||
| 1 | 707900206 | ACOUSTIC FOAM | 1 |
| 1 | 707900210 | ACOUSTIC FOAM | 1 |
| 1 | 707900211 | ACOUSTIC FOAM | 1 |
| 1 | 707900212 | ACOUSTIC FOAM | 1 |
| 1 | 707900163 | Battery Cover | 1 |
| 4 | 705003264 | Grommet | 4 |
| 14 | 250000742 | Torx Screw M5 X 14 | 14 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
