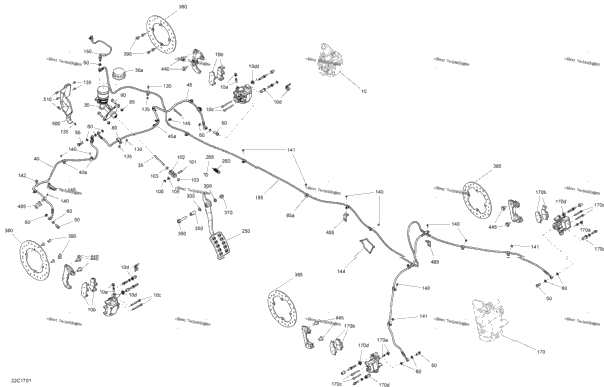

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600678 | RH Caliper Commander | 1 |
| 1 | 705601129 | RH Caliper Ass'y Commander Max | 1 |
| 1 | 705600679 | LH Caliper Commander | 1 |
| 1 | 705601128 | LH Caliper Ass'y Commander Max | 1 |
| 2 | 705600080 | Bleeding Screw | 2 |
| 1 | 715500336 | RH Brake Pad Kit Commander | 1 |
| 1 | 705601150 | RH Brake Pad Kit Commander Max | 1 |
| 1 | 715500335 | LH Brake Pad Kit Commander | 1 |
| 1 | 705601149 | LH Brake Pad Kit Commander Max | 1 |
| 2 | 715500337 | Sliding Pin Kit Commander | 2 |
| 2 | 705601151 | Hanger Pin Kit Commander Max | 2 |
| 2 | 715500383 | Spring Boot Bolt Kit Commander | 2 |
| 2 | 715500385 | Spring And Bolt Kit Commander Max | 2 |
| 1 | 705601505 | Master Cylinder Ass'y Includes 30 to 30c | 1 |
| 1 | 715500332 | Diaphragm Cap Kit | 1 |
| 1 | 705600833 | Master Cylinder Rod | 1 |
| 1 | 705600943 | LH Front Hose Commander | 1 |
| 1 | 705601194 | LH Front Hose Commander Max | 1 |
| 4 | 715900250 | Hose Clip | 4 |
| 1 | 705601195 | RH Front Flexible Hose Ass'y Commander Max | 1 |
| 1 | 705601265 | RH Front Hose Commander | 1 |
| 5 | 705600459 | Clamp | 5 |
| 1 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 1 |
| 1 | 705600958 | Banjo Bolt | 1 |
| 1 | 705600310 | Copper Washer | 1 |
| 1 | 293650220 | Clamp | 1 |
| 1 | 705601173 | Rear Flexible Hose Ass'y Commander Max | 1 |
| 9 | 715900250 | Hose Clip | 9 |
| 1 | 705601391 | Rear Flexible Hose Ass'y Commander | 1 |
| 8 | 715900250 | Hose Clip | 8 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 371800700 | Cotter Pin | 1 |
| 1 | 250400058 | Pin | 1 |
| 1 | 705601142 | Yoke | 1 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 1 | 234081430 | Flat Washer M8 | 1 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 | 2 |
| 5 | 233251494 | Elastic Flange Nut M5 | 5 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 1 | 293750008 | Tie Wrap 368 mm Commander | 1 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 705601250 | Brake Switch | 1 |
| 1 | 705600872 | Rear Caliper Commander | 1 |
| 1 | 705601174 | RH Rear Caliper Ass'y Commander Max | 1 |
| 1 | 705601175 | LH Rear Caliper Ass'y Commander Max | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705601147 | RH Brake Pad Kit Commander Max | 1 |
| 1 | 705600398 | LH Brake Pad Kit Commander Max | 1 |
| 1 | 715500337 | Sliding Pin Kit Commander | 1 |
| 2 | 705600081 | Pin Set (2) Commander Max | 2 |
| 1 | 715500383 | Spring Boot Bolt Kit Commander | 1 |
| 2 | 715500384 | Spring, Protector And Bolt Kit Commander Max | 2 |
| 1 | 705600724 | Brake Pedal | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 708000759 | Rubber Stopper | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 705600815 | Inner Spacer | 1 |
| 1 | 207605544 | Hex. Flange Screw M10 X 55 | 1 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 3 | 705600684 | Brake Disc Commander Except Package XTP | 3 |
| 3 | 705600999 | Disc Brake Commander Package XTP | 3 |
| 2 | 705601178 | Disc Brake Commander Max | 2 |
| 2 | 705600684 | Brake Disc Commander Max | 2 |
| 12 | 235381646 | Torx Screw M8 X 16, Scotch Grip Commander Package XTP | 12 |
| 8 | 235381646 | Torx Screw M8 X 16, Scotch Grip Commander Max | 8 |
| 4 | 250000601 | Hex. Flange Screw M10 X 20, Scotch Grip | 4 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 705601337 | Bracket Commander Max | 1 |
| 2 | 705601337 | Bracket | 2 |
| 1 | 705601337 | Bracket | 1 |
| 1 | 705600917 | LH Front Deflector | 1 |
| 3 | 250000742 | Torx Screw M5 X 14 | 3 |
