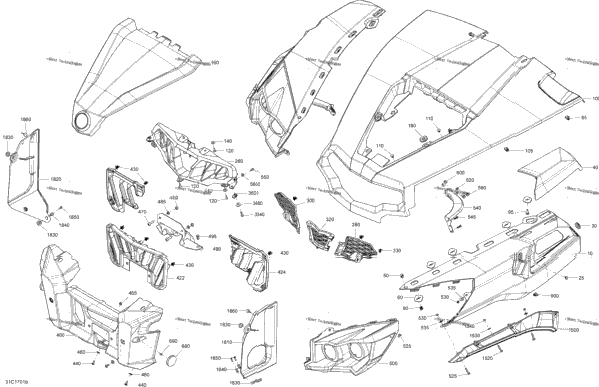

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705008340 | Brush Aluminum LH Front Fender Aluminum Model | 1 |
| 1 | 705008342 | Brush Aluminum RH Front Fender Aluminum Model | 1 |
| 1 | 705009576 | Camo, LH Front Fender Camo Model | 1 |
| 1 | 705009577 | Camo, RH Front Fender Camo Model | 1 |
| 1 | 705010696 | Midnight Blue LH Front Fender Blue Model | 1 |
| 1 | 705010697 | Midnight Blue RH Front Fender Blue Model | 1 |
| 1 | 705008196 | VIPER RED LH FRONT FENDER Red Model | 1 |
| 1 | 705008197 | VIPER RED RH FRONT FENDER Red Model | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 517303756 | Grommet | 1 |
| 1 | 705008191 | VIPER RED CVT INLET COVER Red Model | 1 |
| 1 | 705008344 | Brush Aluminum CVT Inlet Cover Aluminum Model | 1 |
| 1 | 705009582 | Camo, CVT Inlet Cover Camo Model | 1 |
| 1 | 705010698 | Midnight Blue CVT Inlet Cover Blue Model | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 12 | 705003841 | Support Plate | 12 |
| 10 | 517302785 | Edge Clip | 10 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 705008188 | HOOD B-176 Red Model | 1 |
| 1 | 705008346 | BRUSH ALUMINUM FIXED HOOD Aluminum Model | 1 |
| 1 | 705009585 | Camo, Fixed Hood Camo Model | 1 |
| 1 | 705010699 | Midnight Blue Fixed Hood Blue Model | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 5 | 250000720 | Torx Screw K50 X 16 | 5 |
| 5 | 234062670 | Stainless Steel Flat Washer | 5 |
| 1 | 705008185 | Viper Red Removable Hood Red Model | 1 |
| 1 | 705009206 | Brush Aluminum Removable Hood Aluminum Model | 1 |
| 1 | 705009588 | Camo, Removable Hood Camo Model | 1 |
| 1 | 705010700 | Midnight Blue Removable Hood Blue Model | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 1 | 705003629 | FASCIA UP B-160 | 1 |
| 1 | 705004350 | LH Upper Facia Protector | 1 |
| 1 | 705004351 | RH Upper Facia Protector | 1 |
| 1 | 705004336 | Center Upper Facia Protector | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 705008689 | Black Front Facia Package DPS | 1 |
| 1 | 705008690 | Black Front Facia Package LTD | 1 |
| 1 | 705008690 | Black Front Facia Package XT | 1 |
| 1 | 705004755 | Lower Front Facia Protector | 1 |
| 1 | 705004819 | LH Lower Rear Facia Protector | 1 |
| 1 | 705004820 | RH Lower Rear Facia Protector | 1 |
| 11 | 517302785 | Edge Clip | 11 |
| 4 | 250000755 | Torx Screw M6 X 16 | 4 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 293450274 | Insert | ||
| 2 | 250000745 | Hex Torx Truss M8 X30 Package DPS | 2 |
| 2 | 232081414 | Hex. Nut M8 Package DPS | 2 |
| 2 | 234081410 | Flat Washer 8 mm Package DPS | 2 |
| 1 | 705003399 | Bottom Deflector Package DPS | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet Package DPS | 2 |
| 1 | 705002885 | LH Front Facia | 1 |
| 1 | 705002886 | RH Front Facia | 1 |
| 4 | 250000842 | Stainless, Torx Screw M6 X 30 | 4 |
| 4 | 232561434 | Elastic Stop Nut M6 | 4 |
| 2 | 705002891 | Facia Front Support | 2 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 2 | 705011222 | Amber Reflector | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 705008666 | Black, LH Upper Front Mudguard Package XT, LTD | 1 |
| 1 | 705008667 | Black, RH Upper Front Mudguard Package XT, LTD | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 10 |
| 1 | 705002895 | LH Deflector Package DPS | 1 |
| 1 | 705005113 | LH Deflector Package XT, LTD | 1 |
| 1 | 705002894 | RH Deflector | 1 |
| 6 | 293720053 | Grommet | 6 |
| 4 | 517303439 | Knob | 4 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 2 | 708000759 | Rubber Stopper | 2 |
