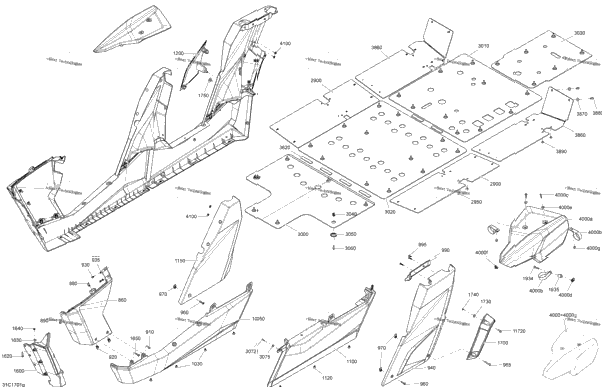

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705008349 | Brush Aluminum LH Front Lateral Pannel Aluminum Model | 1 |
| 1 | 705008351 | Brush Aluminum RH Front Lateral Pannel Aluminum Model | 1 |
| 1 | 705009590 | Camo, LH Front Lateral Panel Camo Model | 1 |
| 1 | 705009591 | Camo, RH Front Lateral Panel Camo Model | 1 |
| 1 | 705010701 | Midnight Blue LH Front Lateral Panel Blue Model | 1 |
| 1 | 705010702 | Midnight Blue RH Front Lateral Panel Blue Model | 1 |
| 1 | 705007851 | Viper Red LH Front Lateral Pannel Red Model | 1 |
| 1 | 705007852 | VIPER RED RH FRONT LATERAL PANNEL Red Model | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 Package DPS | 2 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 1 | 705008354 | Brush Aluminum LH Rear Lateral Panel Aluminum Model | 1 |
| 1 | 705008356 | Brush Aluminum RH Rear Lateral Pannel Aluminum Model | 1 |
| 1 | 705009596 | Camo, LH Rear Lateral Panel Camo Model | 1 |
| 1 | 705009602 | Camo RH Rear Lateral Panel Camo Model | 1 |
| 1 | 705010703 | Midnight Blue LH Rear Lateral Panel Blue Model | 1 |
| 1 | 705010727 | Midnight Blue RH Rear Lateral Panel Blue Model | 1 |
| 1 | 705009605 | PANEL_BODY REAR R B-176 Red Model | 1 |
| 1 | 705007874 | VIPER RED LH REAR LATERAL PANEL Red Model | 1 |
| 4 | 250000843 | Torx Truss Screw M6 X 30 | 4 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 5 | 250000048 | Panel Nut M6 X 1.0 | 5 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 705005423 | Black, LH Lower Panel Package DPS | 1 |
| 1 | 705005424 | Black, RH Lower Panel Package DPS | 1 |
| 1 | 705007035 | Black, LH Lower Panel Package LTD | 1 |
| 1 | 705007036 | Black, RH Lower Panel Package LTD | 1 |
| 1 | 705007035 | Black, LH Lower Panel Package XT | 1 |
| 1 | 705007036 | Black, RH Lower Panel Package XT | 1 |
| 1 | 705005425 | Black, LH Rear Lower Panel | 1 |
| 1 | 705005426 | Black, RH Rear Lower Panel | 1 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 1 | 705008361 | Brush Aluminum LH Center Cage Panel Aluminum Model | 1 |
| 1 | 705008364 | Brush Aluminum RH Center Cage Panel Aluminum Model | 1 |
| 1 | 705009611 | Camo LH Center Cage Panel Camo Model | 1 |
| 1 | 705009614 | Camo, RH Center Cage Panel Camo Model | 1 |
| 1 | 705010730 | Midnight Blue LH Center Cage Panel Blue Model | 1 |
| 1 | 705010731 | Midnight Blue RH Center Cage Panel Blue Model | 1 |
| 1 | 705009607 | PANEL_BODY CTRL L B-176 Red Model | 1 |
| 1 | 705009609 | PANEL_BODY CTRL R B-176 Red Model | 1 |
| 1 | 705008367 | BRUSH ALUMINUM RH PANEL COVER Aluminum Model | 1 |
| 1 | 705009617 | CAP_PANEL BODY REAR R B-176 Red Model | 1 |
| 1 | 705009619 | Camo, RH Panel Cover Camo Model | 1 |
| 1 | 705010729 | Midnight Blue RH Panel Cover Blue Model | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT, LTD | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 10 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT, LTD | 2 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT, LTD | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT, LTD | 1 |
| 7 | 250000712 | Torx Screw M6 X 20 Package XT, LTD | 7 |
| 7 | 234062670 | Stainless Steel Flat Washer Package XT, LTD | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package XT, LTD | 7 |
| 1 | 250200086 | Flat Washer Package XT, LTD | 1 |
| 2 | 250000415 | TORX SCREW NYLON | 2 |
| 705009217 | Spacer | ||
| 2 | 705008421 | Side Protector Plate | 2 |
| 16 | 293150104 | Pop Rivet 3/16" | 16 |
| 1 | 705007055 | Middle Protector Plate | 1 |
| 1 | 705007056 | Rear Protector Plate | 1 |
| 1 | 705009447 | Skid Plate | 1 |
| 1 | 705007227 | Rear Protector Plate | 1 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 35 | 705007171 | Cup | 35 |
| 35 | 210262050 | Hexagonal Head Screw | 35 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 6 | 291001932 | Pad | 6 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 4 | 250200097 | Flat Washer | 4 |
| 4 | 210262050 | Hexagonal Head Screw | 4 |
| 14 | 293150104 | Pop Rivet 3/16" | 14 |
| 1 | 705008450 | Black, Cage Cover Kit Camo Model Include 4000a>4000g | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Aluminum Model Include 4000a>4000g | 1 |
| 1 | 705010737 | Midnight Blue Cage Cover Kit Blue Model Include 4000a>4000g | 1 |
| 1 | 705008452 | Black, LH Top Center Cage Cover Camo Model | 1 |
| 1 | 705008453 | Black, RH Top Center Cage Cover Camo Model | 1 |
| 1 | 705008452 | Black, LH Top Center Cage Cover Aluminum Model | 1 |
| 1 | 705008453 | Black, RH Top Center Cage Cover Aluminum Model | 1 |
| 6 | 705005626 | "P" Bracket, 2" Dia. | 6 |
| 6 | 207662054 | Hex. Flange Screw M6 X 20 | 6 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 4 | 233261494 | Hex. Elastic Flange Nut M6 | 4 |
| 8 | 250100031 | Push Nut | 8 |
