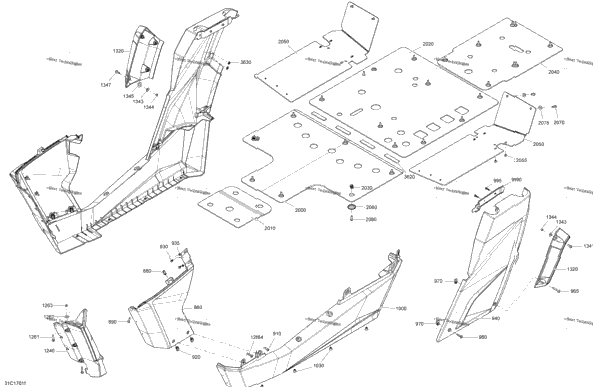

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705008349 | Brush Aluminum LH Front Lateral Pannel Aluminum Model | 1 |
| 1 | 705008351 | Brush Aluminum RH Front Lateral Pannel Aluminum Model | 1 |
| 1 | 705009590 | Camo, LH Front Lateral Panel Camo Model | 1 |
| 1 | 705009591 | Camo, RH Front Lateral Panel Camo Model | 1 |
| 1 | 705010701 | Midnight Blue LH Front Lateral Panel Blue Model | 1 |
| 1 | 705010702 | Midnight Blue RH Front Lateral Panel Blue Model | 1 |
| 1 | 705008239 | QUARRY GRAY LH FRONT LATERAL PANNEL Gray Model | 1 |
| 1 | 705008240 | Quarry Gray RH Front Lateral Pannel Gray Model | 1 |
| 1 | 705008488 | Timeless Black LH Front Lateral Panel Package XTP | 1 |
| 1 | 705008489 | Timeless Black RH Front Lateral Panel Package XTP | 1 |
| 1 | 705007851 | Viper Red LH Front Lateral Pannel Red Model | 1 |
| 1 | 705007852 | VIPER RED RH FRONT LATERAL PANNEL Red Model | 1 |
| 1 | 705007846 | YELLOW LH FRONT LATERAL PANNEL Yellow Model | 1 |
| 1 | 705007845 | YELLOW RH FRONT LATERAL PANNEL Yellow Model | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 Package STD, DPS | 2 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 1 | 705008354 | Brush Aluminum LH Rear Lateral Panel Aluminum Model | 1 |
| 1 | 705008358 | Brush Aluminum RH Rear Lateral Panel Aluminum Model | 1 |
| 1 | 705009596 | Camo, LH Rear Lateral Panel Camo Model | 1 |
| 1 | 705009597 | Camo, RH Rear Lateral Panel Camo Model | 1 |
| 1 | 705010703 | Midnight Blue LH Rear Lateral Panel Blue Model | 1 |
| 1 | 705010704 | Midnight Blue RH Rear Lateral Panel Blue Model | 1 |
| 1 | 705008369 | QUARRY GRAY LH REAR LATERAL PANEL Gray Model | 1 |
| 1 | 705008370 | Quarry Gray RH Rear Lateral Panel Gray Model | 1 |
| 1 | 705010748 | Timeless Black LH Rear Lateral Panel Package XTP | 1 |
| 1 | 705010749 | Timeless Black RH Rear Lateral Panel Package XTP | 1 |
| 1 | 705007874 | VIPER RED LH REAR LATERAL PANEL Red Model | 1 |
| 1 | 705007875 | VIPER RED RH REAR LATERAL PANEL Red Model | 1 |
| 1 | 705007864 | YELLOW LH REAR LATERAL PANEL Yellow Model | 1 |
| 1 | 705007865 | Yellow RH Rear Lateral Panel Yellow Model | 1 |
| 2 | 250000843 | Torx Truss Screw M6 X 30 | 2 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 3 | 250000048 | Panel Nut M6 X 1.0 | 3 |
| 2 | 705007916 | Support Skid Plate | 2 |
| 1 | 705006993 | LH Middle Side Pannel Package Hunter | 1 |
| 1 | 705006994 | RH Middle Side Pannel Package Hunter | 1 |
| 1 | 705006991 | LH Lateral Middle Panel Package STD, DPS | 1 |
| 1 | 705006992 | RH Lateral Middle Panel Package STD, DPS | 1 |
| 1 | 705006993 | LH Middle Side Pannel Package XT, LTD | 1 |
| 1 | 705006994 | RH Middle Side Pannel Package XT, LTD | 1 |
| 1 | 705007093 | LH MIDDLE SIDE PANNEL Package XTP | 1 |
| 1 | 705007094 | PANEL_BODY CTRL R Package XTP | 1 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 705008668 | Black, LH Lower Mudguard Package Hunter | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package Hunter | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XT Except Europe, LTD | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XT Except Europe, LTD | 1 |
| 1 | 705008668 | Black, LH Lower Mudguard Package XTP | 1 |
| 1 | 705008669 | Black, RH Lower Mudguard Package XTP | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XTP | 10 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT Except Europe, LTD | 10 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package Hunter | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package Hunter | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XTP | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer Package XT Except Europe, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XT Except Europe, LTD | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package Hunter | 10 |
| 10 | 232561434 | Elastic Stop Nut M6 Package XTP | 10 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XTP | 2 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package XT Except Europe, LTD | 2 |
| 2 | 250000842 | Stainless, Torx Screw M6 X 30 Package Hunter | 2 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package Hunter | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package Hunter | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XT Except Europe, LTD | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XT Except Europe, LTD | 1 |
| 1 | 705008670 | Black, LH Rear Lower Mudguard Package XTP | 1 |
| 1 | 705008672 | RH Rear Lower Black Mudguard Package XTP | 1 |
| 6 | 250000712 | Torx Screw M6 X 20 Package XT Except Europe, LTD | 6 |
| 6 | 250000712 | Torx Screw M6 X 20 Package Hunter | 6 |
| 6 | 250000712 | Torx Screw M6 X 20 Package XTP | 6 |
| 7 | 234062670 | Stainless Steel Flat Washer Package Hunter | 7 |
| 7 | 234062670 | Stainless Steel Flat Washer Package XT Except Europe, LTD | 7 |
| 7 | 234062670 | Stainless Steel Flat Washer Package XTP | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package Hunter | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package XT Except Europe, LTD | 7 |
| 7 | 232561434 | Elastic Stop Nut M6 Package XTP | 7 |
| 1 | 250200086 | Flat Washer Package Hunter | 1 |
| 1 | 250200086 | Flat Washer Package XT Except Europe, LTD | 1 |
| 1 | 250200086 | Flat Washer Package XTP | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 Package Hunter | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 Package XT Except Europe, LTD | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 Package XTP | 1 |
| 1 | 705007055 | Middle Protector Plate Except Package Hunter | 1 |
| 1 | 715001996 | Middle Front Protector Plate Package Hunter | 1 |
| 1 | 705007056 | Rear Protector Plate Except Package Hunter | 1 |
| 1 | 715001997 | Middle Rear Protector Plate Package Hunter | 1 |
| 4 | 250000048 | Panel Nut M6 X 1.0 Package Hunter | 4 |
| 2 | 250000048 | Panel Nut M6 X 1.0 Except Package Hunter | 2 |
| 1 | 705007227 | Rear Protector Plate Except Package Hunter | 1 |
| 1 | 715000694 | Rear Protector Plate Package Hunter | 1 |
| 2 | 705007038 | RH Lateral Skid Plate Except Package Hunter | 2 |
| 14 | 293150104 | Pop Rivet 3/16" Except Package Hunter | 14 |
| 24 | 705007171 | Cup | 24 |
| 4 | 210262050 | Hexagonal Head Screw Except Package Hunter | 4 |
| 4 | 250200097 | Flat Washer Except Package Hunter | 4 |
| 22 | 210262050 | Hexagonal Head Screw Except Package Hunter | 22 |
| 24 | 210262050 | Hexagonal Head Screw Package Hunter | 24 |
| 4 | 291001932 | Pad Except Package Hunter | 4 |
| 4 | 250100031 | Push Nut | 4 |
