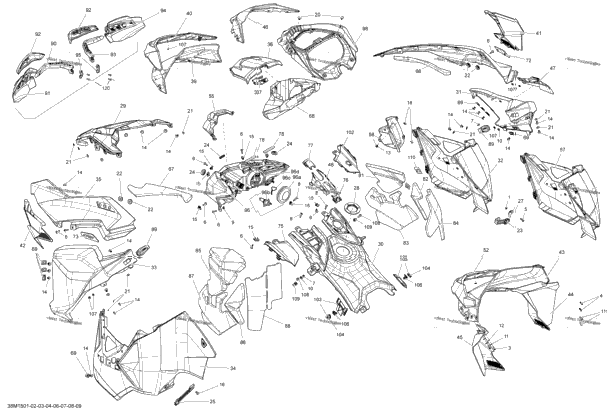

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 4 | 250000146 | Truss Head Torx Screw K50 X 16 | 4 |
| XXX | Not Available As Spare Parts | ||
| 1 | 250000465 | Torx Screw M5 X 20 | 1 |
| 12 | 250000528 | Torx Screw M5 X 20 | 12 |
| 2 | 250000565 | Hexalob Screw M4 X 10 | 2 |
| 4 | 250000587 | Torx Screw M5 X 26 | 4 |
| 2 | 250100035 | Jack Nut M5 | 2 |
| 2 | 250100156 | Weld Nut M4 | 2 |
| 4 | 250200024 | Rubber Washer 5 mm | 4 |
| 4 | 250200025 | Washer M5 | 4 |
| 3 | 275500241 | Black, Cap | 3 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 12 | 250000079 | Panel Nut M5 X 0.8 | 12 |
| 1 | 293150108 | Pop Rivet 3/16” | 1 |
| 1 | 250000725 | Screw M4 X 16 | 1 |
| 1 | 517124300 | Washer | 1 |
| 4 | 517302841 | Grommet | 4 |
| 1 | 517303612 | RH Panel Latch | 1 |
| 3 | 517303756 | Grommet | 3 |
| 1 | 517303808 | LH Panel Latch | 1 |
| 1 | 517304221 | Latch Support | 1 |
| 1 | 517304518 | Console Nut | 1 |
| 1 | 517304796 | Deep Black, Center Hood Model-Black-Black | 1 |
| 1 | 517305624 | Orange Race Center Hood Model-Gray-Orange | 1 |
| 1 | 517305641 | Deep Black, Rear Console Model-Black-Black | 1 |
| 517305642 | CATALYSTE GRAY REAR CONSOLE Model-Gray-Orange | ||
| 1 | 517304801 | Black Panel RH Model-Black-Black | 1 |
| 1 | 517305651 | PANEL_BODY RH B-356 Model-Gray-Orange | 1 |
| 1 | 517304802 | Deep Black, Panel Trim RH | 1 |
| 1 | 517304804 | Black LH Panel Model-Black-Black | 1 |
| 517305665 | ORANGE RACE LH PANEL Model-Gray-Orange | ||
| 1 | 517304805 | Black, LH Flashing Panel Model-Black-Black | 1 |
| 1 | 517305666 | Orange Race LH Flashing Panel Model-Gray-Orange | 1 |
| 1 | 517305239 | Deep Black, RH Hood Model-Black-Black | 1 |
| 1 | 517305240 | Deep Black, LH Hood Model-Black-Black | 1 |
| 1 | 517305629 | HOOD RH B-356 Model-Gray-Orange | 1 |
| 517305628 | HOOD LH B-356 Model-Gray-Orange | ||
| 1 | 517304912 | Deep Black, Upper Storage Access Cover | 1 |
| 1 | 517304917 | Cover Latch | 1 |
| 1 | 517304927 | Windshield 345mm | 1 |
| 1 | 517304928 | RH Air Deflector, Black 63% Transm. | 1 |
| 1 | 517304929 | LH Air Deflector, Black 63% Transm. | 1 |
| 2 | 517304935 | Deep Black, RH Panel Vent Grid | 2 |
| 1 | 517304970 | Deep Black, Console Support | 1 |
| 1 | 517305007 | Windshield Support | 1 |
| 1 | 517305010 | Headlight Trim Cap | 1 |
| 1 | 517305058 | Black, RH Panel Trim Model-Black-Black, Manual Start | 1 |
| 1 | 517305652 | PANEL_BODY LWR R B-370 Model-Gray-Orange, Manual Start | 1 |
| 1 | 517305654 | PANEL_BODY LWR R B-370 Model-Gray-Orange, Electrical Start | 1 |
| 1 | 517305060 | Deep Black RH Console | 1 |
| 1 | 517305090 | RH Rear Hood Foam | 1 |
| 1 | 517305091 | LH Rear Hood Foam | 1 |
| 1 | 517305095 | Deep Black, Trunk | 1 |
| 4 | 517305109 | Rivet Plate | 4 |
| 1 | 517305143 | Deep Black, LH Front Console | 1 |
| 1 | 517305147 | Deep Black, Support Console Cap | 1 |
| 1 | 517305148 | Deep Black, Support Console Cap | 1 |
| 2 | 517305157 | Seal Joint | 2 |
| 1 | 517305196 | RH Foam Upper | 1 |
| 1 | 517305197 | RH Foam Central | 1 |
| 1 | 517305198 | RH Foam Lower | 1 |
| 1 | 517305199 | RH Foam Rear | 1 |
| 1 | 517305200 | LH Upper Panel Foam | 1 |
| 1 | 517305201 | LH Center Panel Foam | 1 |
| 1 | 517305202 | LH Lower Panel Foam | 1 |
| 1 | 517305203 | LH Rear Panel Foam | 1 |
| 2 | 517305279 | Panel Latch | 2 |
| 1 | 517305497 | Headlamp Includes 96 To 96d | 1 |
| 2 | 219400070 | Cap | 2 |
| 2 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 2 |
| 2 | 219800282 | Holder Bracket | 2 |
| 2 | 219800281 | Spring | 2 |
| 1 | 517305511 | Deep Black, Indicator Support | 1 |
| 1 | 517305549 | Deep Black, RH Front Console | 1 |
| 1 | 517305722 | LH Panel Clip Ass'y, Black | 1 |
| 2 | 517305723 | Ring | 2 |
| 1 | 517305724 | RH Panel Clip Ass'y, Black | 1 |
| 2 | 517305734 | Pin | 2 |
| 6 | 732610072 | Push Nut | 6 |
| 7 | 250100158 | Push Nut | 7 |
| 2 | 250000705 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 2 | 517305451 | Heat Shield | 2 |
