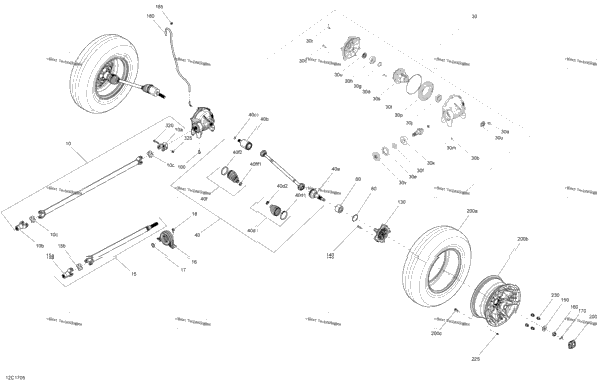

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705402044 | Drive Shaft Ass'y Includes 10 to 10c | 1 |
| 1 | 715900400 | Fixed Yoke | 1 |
| 1 | 715900401 | Yoke | 1 |
| 2 | 715900402 | J-Joint Cross Kit | 2 |
| 1 | 705401884 | Front Differential Ass'y Package CAB, DPS, XT, Hunter | 1 |
| 1 | 705401885 | Front Differential Ass'y Package STD, BASE | 1 |
| 1 | 705501889 | Fill Level Plug | 1 |
| 1 | 705501885 | Drain Plug | 1 |
| 6 | 705501886 | Bolt | 6 |
| 8 | 705401818 | Screw | 8 |
| 1 | 705401819 | Nut M75 X 1.5 | 1 |
| 1 | 705401820 | Nut M27 X 1.5 | 1 |
| 1 | 705401604 | Shim | 1 |
| 1 | 705401606 | Ball Bearing | 1 |
| 1 | 705401934 | Ball Bearing | 1 |
| 1 | 705401821 | Ball Bearing | 1 |
| 1 | 705401607 | Needle Bearing | 1 |
| 1 | 705401667 | Front Cover | 1 |
| 1 | 705401822 | 36Th Gear | 1 |
| 1 | 705401933 | Pinion 10 th. | 1 |
| 1 | 705401935 | Vent Valve | 1 |
| 705401825 | Differential Package CAB, DPS, XT, Hunter, | ||
| 705401828 | Differential Package STD, BASE | ||
| 1 | 705401886 | Differential Package CAB, DPS, XT, Hunter, | 1 |
| 1 | 705401887 | Differential Package STD, BASE | 1 |
| 1 | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 | 1 |
| 2 | 705401836 | Oil Seal | 2 |
| 1 | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 | 1 |
| 1 | 705401936 | RH Front - Premium CV Axle Includes 40 to 40f2 | 1 |
| 1 | 705401937 | LH Front - Premium CV Axle Includes 40 to 40f2 | 1 |
| 715900440 | JOINT_CV EXT | ||
| 1 | 715900441 | RH Plunging Joint | 1 |
| 1 | 715900442 | LH Plunging Joint | 1 |
| 1 | 705401349 | Circlip Joint | 1 |
| 1 | 705401345 | Boot Kit, Wheel Side Includes 40d to 40d2 | 1 |
| 1 | 715900282 | Oetiker Clamp | 1 |
| 1 | 715900283 | Oetiker Clamp, Small | 1 |
| 1 | 705401355 | Boot Kit, Différential Side Includes 40f to 40f2 | 1 |
| 1 | 715900261 | Oetiker Clamp, Small | 1 |
| 1 | 715900262 | Oetiker Clamp, Large | 1 |
| 2 | 293350118 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 4 | 207502046 | Hex. Flange Screw M10 X 20 | 4 |
| 2 | 705502338 | Wheel Hub | 2 |
| 8 | 250300055 | Wheel Stud M10 X 1.25 | 8 |
| 2 | 250200147 | Washer M20 | 2 |
| 2 | 250100161 | Castle Nut M20 | 2 |
| 2 | 250400071 | Cotter Pin | 2 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414227300 | Clip | 1 |
| 2 | 705400928 | Wheel Cap Package DPS. Built Before Nov 2016 | 2 |
| 2 | 705401541 | Wheel Cap Package DPS. Built Nov 2016 and Up | 2 |
| 2 | 705401541 | Wheel Cap Package CAB, XT, Hunter | 2 |
| 2 | 705401915 | Front Tire Package STD, BASE, DPS, Built Before Nov 2016 | 2 |
| 2 | 705401974 | Front Tire Package BASE, Built Nov 2016 and Up | 2 |
| 2 | 705401974 | Front Tire Package STD, Built Nov 2016 Feb 2017 | 2 |
| 2 | 705401385 | Front Tire Maxxis 27X9X12 Package STD, Built March 2017 and Up | 2 |
| 2 | 705401985 | Front Tire Package DPS, Built Nov 2016 and Up | 2 |
| 2 | 705401985 | Front Tire Package Hunter, CAB, XT | 2 |
| 2 | 705401638 | Front Rim Package DPS CAMO Built Before Nov 2016 | 2 |
| 2 | 705401894 | RIM_12 INCH B-331 X 6 Package DPS Except CAMO, Built Before Nov 2016 | 2 |
| 2 | 705401564 | Black Front Rim Package DPS Built Nov 2016 and Up | 2 |
| 2 | 705401849 | Deep Black, 14" X 6.5 Front Rim Package Hunter, CAB | 2 |
| 2 | 705401217 | Black, 12" X 6" Rim Package STD, BASE | 2 |
| 2 | 705401564 | Black Front Rim Package XT | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 8 | 250100042 | Steel Wheel Nut Package STD, BASE | 8 |
| 8 | 250100184 | Black, Wheel Nut M10 X 1.25 Package Hunter, CAB, XT | 8 |
| 8 | 250100184 | Black, Wheel Nut M10 X 1.25 Package DPS CAMO | 8 |
| 8 | 250100184 | Black, Wheel Nut M10 X 1.25 Package DPS Except CAMO, Built Nov 2016 and Up | 8 |
| 8 | 250100185 | Chrome Wheel Nut M10 X 1.25 Package DPS Except CAMO, Built Before Nov 2016 | 8 |
| 1 | 250000952 | Hex. Flange Screw M8 X 42 | 1 |
| 1 | 233281416 | Hex. Elastic Flange Nut M8 | 1 |
