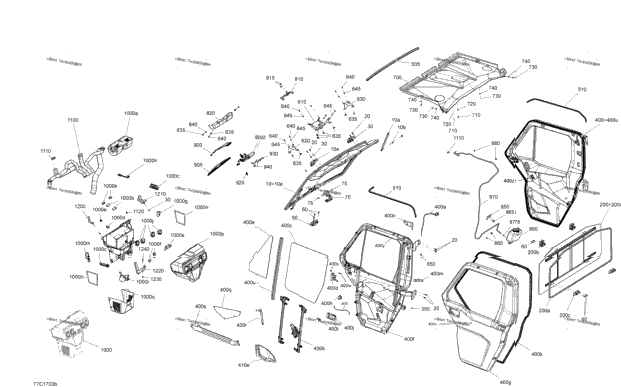

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715002942 | Windshield Ass'y Includes 10 to 10e | 1 |
| 2 | 705800030 | Shock | 2 |
| 1 | 250300039 | Ball Head Stud | 1 |
| 1 | 705800006 | Neoprene Seal Not Illustrated | 1 |
| 1 | 705800082 | Windshield Hinges | 1 |
| 1 | 250000874 | Torx Truss M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 705800008 | Handle Anchor | 1 |
| 3 | 250000709 | Torx Screw M6.81 X 30 | 3 |
| 1 | 705800085 | Mobile Handle Ass'y | 1 |
| 2 | 250000881 | Torx Truss M8 X 16 | 2 |
| 1 | 715002440 | Rear Window kit Includes 200 to 200c | 1 |
| 1 | 705800054 | Outer Seal | 1 |
| 2 | 705800088 | Upper Clamp Ass'y Includes 200b to 200b1 | 2 |
| 2 | 250000709 | Torx Screw M6.81 X 30 | 2 |
| 2 | 705800090 | Lower Clamp Ass'y Includes 200c to 200c1 | 2 |
| 3 | 293370125 | Retaining Ring | 3 |
| 705800186 | RH Door Ass'y Includes 400 to 400u | ||
| 705800185 | LH Door Ass'y Includes 400 to 400u | ||
| 1 | 705800050 | Passenger Door Harness | 1 |
| 1 | 705800047 | Driver Door Harness | 1 |
| 1 | 705800051 | RH Window Actuator | 1 |
| 1 | 705800046 | LH Window Actuator | 1 |
| 1 | 705800025 | RH Roll-Down Glass | 1 |
| 1 | 705800016 | LH Roll-Down Glass | 1 |
| 1 | 703500916 | RH Interior Latch Kit | 1 |
| 1 | 703500915 | LH Interior Latch Kit | 1 |
| 1 | 705800052 | A-Pillar Glass RH | 1 |
| 1 | 705800044 | A-Pillar Glass LH | 1 |
| 1 | 705800026 | RH DOOR INNER LINER For Steel Tube Handle | 1 |
| 1 | 705800017 | LH DOOR INNER LINER For Steel Tube Handle | 1 |
| 1 | 705800323 | RH Routed Inner Door For Plastic Handle | 1 |
| 1 | 705800322 | LH Routed Inner Door For Plastic Handle | 1 |
| 1 | 705800027 | RH Outside Panel | 1 |
| 1 | 705800018 | LH Outside Panel | 1 |
| 1 | 705800048 | Window Switch | 1 |
| 2 | 705800015 | Exterior Paddle Latch Keys 705800184 sold separately | 2 |
| 1 | 705800045 | Seal | 1 |
| 1 | 705800183 | -Strap 205mm Long | 1 |
| 1 | 703500918 | RH Hinge Kit | 1 |
| 1 | 703500917 | LH Hinge Kit | 1 |
| 1 | 715003568 | Door Panel Kit RH | 1 |
| 1 | 715003567 | LH Door Panel Kit | 1 |
| 1 | 705800147 | INTERIOR HANDLE WELDED Steel Tube | 1 |
| 1 | 705800229 | LH Interior Handle Plastic | 1 |
| 1 | 705800230 | Interior Handle RH Plastic | 1 |
| 1 | 705800149 | RH Door Frame Bracket | 1 |
| 1 | 705800148 | LH Door Frame Bracket | 1 |
| 2 | 705800150 | Window Guide Bracket | 2 |
| 2 | 705800151 | Window Guide Extrusion | 2 |
| 705800156 | Dart, Black | ||
| 2 | 205484060 | Socket Head Screw M8 X 40 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 2 | 219704435 | TRIM - U SHAPED 3500MM LONG | 2 |
| 2 | 715900526 | LH Power Window Switch Housing | 2 |
| 1 | 715900527 | RH Power Window Switch Housing | 1 |
| 1 | 715900493 | LH Latch Cable 2.4'' | 1 |
| 1 | 715900494 | RH Latch Cable 2.9'' | 1 |
| 2 | 715900504 | Interior Latch Cable 28'' | 2 |
| 1 | 705800145 | LH Pocket | 1 |
| 1 | 705800146 | RH Pocket | 1 |
| 1 | 219704379 | Was 293250361 Gasket | 1 |
| 1 | 219704384 | Était Was 293250393 Extrusion | 1 |
| 1 | 705800060 | Support | 1 |
| 1 | 705800108 | LH Support | 1 |
| 1 | 705800109 | RH Support | 1 |
| 11 | 250000048 | Panel Nut M6 X 1.0 | 11 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 | 3 |
| 1 | 715003099 | Roof Rear Liner Ass'y | 1 |
| 2 | 250000759 | Torx-Truss Pt K40 X 16 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 10 | 250000760 | Torx Screw Truss Head K50X20 T20 | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer | 10 |
| 1 | 705010657 | Wiper Motor | 1 |
| 1 | 705800073 | Cover Support Ass'y | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 705800072 | Cover, Wiper Motor | 1 |
| 1 | 705800086 | Windshield Washer Tank Support | 1 |
| 1 | 705800039 | Windshield Washer Tank | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 2 | 414554800 | Spring Clamp | 2 |
| 4 | 414227300 | Clip | 4 |
| 1 | 705010656 | Wiper Arm | 1 |
| 1 | 705011443 | Winshield Wiper | 1 |
| 1 | 705800103 | 90° Elbow Connector | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 715001978 | Defrost, Heat and Ventilation System Includes 1000 to 1000t | 1 |
| 1 | 520001536 | Fan | 1 |
| 2 | 520001672 | Duct Adaptor | 2 |
| 2 | 520001673 | Rectangular Grid | 2 |
| 1 | 520001674 | Fan Switch | 1 |
| 2 | 520001675 | Button | 2 |
| 3 | 520001676 | Grommet 5/8'' | 3 |
| 520001679 | FUSE BOX | ||
| 1 | 520001680 | Potentiometer | 1 |
| 4 | 520001681 | Round Grid | 4 |
| 2 | 520001682 | Duct Adaptor | 2 |
| 1 | 520001683 | Wiring Harness | 1 |
| 2 | 520001537 | Filter | 2 |
| 1 | 520001546 | Console | 1 |
| 1 | 520001626 | Lower Cover | 1 |
| 1 | 520001685 | Valve Ass'y 5/8'' | 1 |
| 1 | 520001686 | HVAC Decal | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 1 | 520001643 | Air Duct Kit | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750062 | Tie Rap Clip | 1 |
| 1 | 520001619 | LH Support | 1 |
| 1 | 520001621 | RH Support | 1 |
| 1 | 520001623 | Central Support | 1 |
| 293450274 | Insert | ||
| 3 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 3 |
| 3 | 232081414 | Hex. Nut M8 | 3 |
| 3 | 234082410 | Flat Washer 8 mm | 3 |
