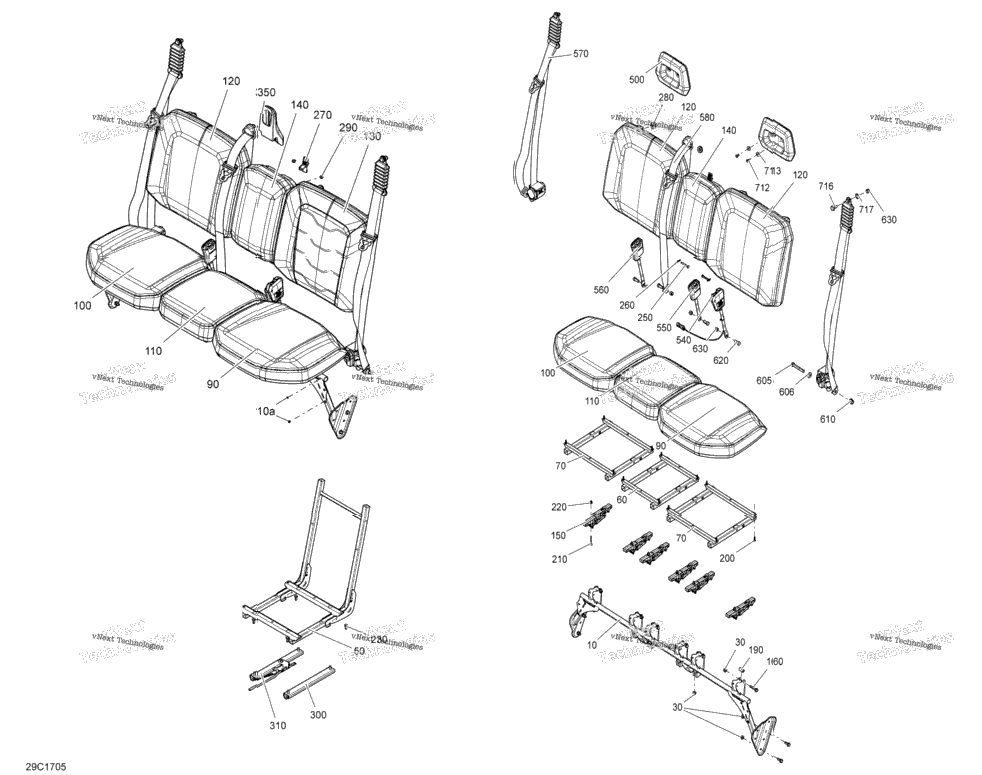

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 708001688 | SEAT MEMBER Package XT | ||
| 1 | 708001904 | Seat Support Package DPS | 1 |
| 1 | 708001904 | Seat Support Includes 10 to 10a | 1 |
| 8 | 390402200 | Pop Rivet 3/16" | 8 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 708001723 | Operator Seat Member Package XT | 1 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 2 | 708001895 | Center Seat Member | 2 |
| 4 | 708001899 | Seat Member Package DPS | 4 |
| 3 | 708001899 | Seat Member Package XT | 3 |
| 2 | 708002544 | LH Cushion Ass'y Package DPS | 2 |
| 2 | 708002545 | LH Cushion Ass'y Package XT | 2 |
| 2 | 708001498 | RH Cushion Ass'y Package DPS | 2 |
| 2 | 708001926 | RH Cushion Ass'y Package XT | 2 |
| 2 | 708001629 | Central Cushion Ass'y Package DPS | 2 |
| 2 | 708001928 | Central Cushion Ass'y Package XT | 2 |
| 4 | 708001701 | Backrest Ass'y Package DPS | 4 |
| 3 | 708001995 | Backrest Ass'y Package XT, Fixed seat | 3 |
| 1 | 708001930 | Backrest Ass'y Package XT, Sliding Seat | 1 |
| 2 | 708001630 | Center Backrest Ass'y Package DPS | 2 |
| 2 | 708001932 | Center Backrest Ass'y Package XT | 2 |
| 10 | 708001693 | Base Bracket | 10 |
| 1 | 207684544 | Hex. Flange Screw M8 X 45 | 1 |
| 1 | 708001903 | Bushing | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 10 | 207064544 | Hex. Screw M6 X 45 | 10 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 10 |
| 4 | 207182044 | Hex. Screw M8 X 20 Package XT | 4 |
| 4 | 250400069 | Pin | 4 |
| 4 | 269800431 | Hairpin Cotter | 4 |
| 2 | 269501487 | Latch | 2 |
| 1 | 517303756 | Grommet | 1 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 2 | 293830005 | Rubber Bumper Package XT | 2 |
| 1 | 708000848 | LH Rail Package XT | 1 |
| 1 | 708002001 | RH Rail Package XT | 1 |
| 1 | 708002293 | Cover | 1 |
| 2 | 708001721 | Head Rest | 2 |
| 1 | 708002331 | Driver Buckle | 1 |
| 2 | 708002330 | Middle Buckle | 2 |
| 3 | 708002329 | Passenger Buckle | 3 |
| 4 | 708002328 | Safety Belt | 4 |
| 2 | 708002327 | Central Safety Belt | 2 |
| 4 | 207028046 | Hex. Screw M12 X 80 | 4 |
| 4 | 250200102 | Flat Washer M12 | 4 |
| 8 | 233221416 | Elastic Flange Nut M12 | 8 |
| 8 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 8 |
| 1 | 250100183 | Lock Nut Nylon 7/16 | 1 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 4 | 250200162 | Flat Washer M6.6 X 22 | 4 |
| 6 | 708000890 | Safety Belt Screw | 6 |
| 10 | 708000891 | Position Washer | 10 |
