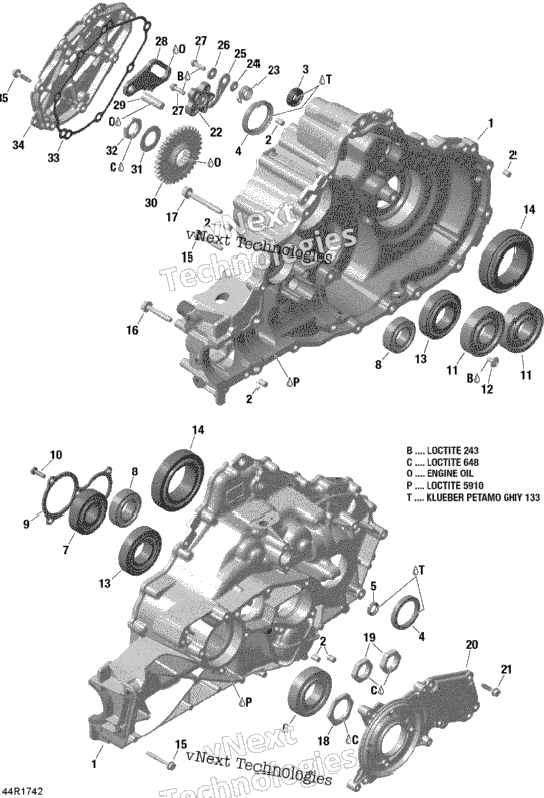

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420686458 | Gearbox Ass'y With Lockable Rear Differential, Built before Sept 2016 | 1 |
| 1 | 420686750 | Gearbox Ass'y With Lockable Rear Differential, Built Sept 2016 and Up | 1 |
| 1 | 421000722 | REBUILT - DEFENDER GEAR BOX With Lockable Rear Differential | 1 |
| 1 | 420686459 | Gearbox Ass'y Without Lockable Rear Differential, Built Before Sept 2016 | 1 |
| 1 | 421000728 | REBUILT - GEAR BOX Without Lockable Rear Differential, Built Before Sept 2016 | 1 |
| 1 | 420686755 | Gearbox Ass'y Without Lockable Rear Differential, Built Sept 2016 and Up | 1 |
| 6 | 420632010 | Center Pin 8 X 12 | 6 |
| 1 | 420250452 | Oil Seal | 1 |
| 2 | 420230137 | Oil Seal | 2 |
| 1 | 420931802 | Oil Seal | 1 |
| 1 | 420632745 | Ball Bearing | 1 |
| 1 | 420832098 | Ball Bearing | 1 |
| 2 | 420232764 | Ball Bearing 6205 | 2 |
| 1 | 420651830 | Retaining Plate | 1 |
| 5 | 420441386 | Torx Flange Screw M6 X 20 | 5 |
| 2 | 420932574 | Ball Bearing | 2 |
| 1 | 420241535 | Hex. Screw M6 X 13 | 1 |
| XXXX | Not Available As Spare Part - Roller Bearing | ||
| XXXX | Not Available As Spare Part - Roller Bearing With Lockable Rear Differential | ||
| 2 | 420632871 | Ball Bearing Without Lockable Rear Differential | 2 |
| 11 | 420441921 | Collar Screw M6 X 45 | 11 |
| 10 | 420441931 | Collar Screw M8 x 45 | 10 |
| 2 | 420441941 | Collar Screw M8 x 65 | 2 |
| 1 | 420842600 | Hex Nut M34 X 1.5 | 1 |
| 2 | 420242954 | Hex. Nut M24 | 2 |
| 1 | 420212380 | Bearing Cover | 1 |
| 8 | 420441951 | Collar Screw M6 x 25 | 8 |
| 1 | 420248024 | Index Washer | 1 |
| 1 | 420239566 | Spring | 1 |
| 1 | 420227717 | Step Ring | 1 |
| 1 | 420248528 | Index Lever Ass'y | 1 |
| 1 | 420827300 | Washer | 1 |
| 2 | 420441835 | Torx Flange Screw M6 X 20 | 2 |
| 1 | 420657440 | Parking Lock Lever | 1 |
| 1 | 420249190 | Needle Pin | 1 |
| 1 | 420634936 | Gear | 1 |
| 1 | 420245860 | Spring Washer | 1 |
| 1 | 420242879 | Nut | 1 |
| 1 | 420450410 | Gasket | 1 |
| 1 | 420212390 | Gear Box Cover | 1 |
| 7 | 420441951 | Collar Screw M6 x 25 | 7 |
