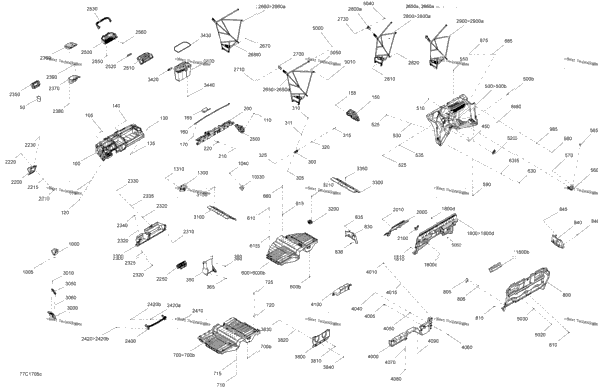

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 707900288 | Cup Holder | 2 |
| 1 | 715004029 | Dashboard Kit | 1 |
| 7 | 250000720 | Torx Screw K50 X 16 | 7 |
| 3 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 | 3 |
| 3 | 250000721 | Torx Truss Screw M6 X 16 | 3 |
| 293450274 | Insert | ||
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 707900249 | Dash Support | 1 |
| 1 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 | 1 |
| 1 | 707900411 | Dash Trim | 1 |
| 1 | 707900439 | Fuse Box Holder | 1 |
| 7 | 517302785 | Edge Clip | 7 |
| 1 | 707900296 | Upper Front Deflector | 1 |
| 8 | 250000720 | Torx Screw K50 X 16 | 8 |
| 8 | 705003841 | Support Plate | 8 |
| 1 | 707900367 | RH Support | 1 |
| 1 | 707900402 | Clamp | 1 |
| 2 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 2 | 234061410 | Flat Washer 6 mm | 2 |
| 1 | 207068044 | Hex. Screw M6 X 80 | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 1 | 707900289 | Front Bulkhead Cover | 1 |
| 3 | 293150089 | Tuflok Plastic Rivet | 3 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 293250242 | Rubber Cover | 1 |
| 1 | 707900430 | Front Bulkhead Includes 500 to 500b | 1 |
| 6 | 250000048 | Panel Nut M6 X 1.0 | 6 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 707900408 | DPS Cover | 1 |
| 3 | 250000712 | Torx Screw M6 X 20 | 3 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 291002744 | Bumber Cap | 2 |
| 1 | 707900390 | RH Rubber Cover | 1 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 1 | 707900431 | Floor Ass'y Includes 600 to 600b | 1 |
| 5 | 250000048 | Panel Nut M6 X 1.0 | 5 |
| 4 | 250000868 | Torx Truss M6 X 50 | 4 |
| 6 | 250200162 | Flat Washer M6.6 X 22 | 6 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 2 | 250200162 | Flat Washer M6.6 X 22 | 2 |
| 2 | 235567084 | Torx Screw Button Head M6 X 70 | 2 |
| 1 | 707900464 | Rear Floor Ass'y Includes 700 to 700b | 1 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
| 3 | 250000722 | Torx Screw M6 X 20 | 3 |
| 5 | 250200162 | Flat Washer M6.6 X 22 | 5 |
| 5 | 250000868 | Torx Truss M6 X 50 | 5 |
| 1 | 715003774 | Median Deflector Ass'y | 1 |
| 2 | 707900469 | Plate | 2 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 8 | 250000048 | Panel Nut M6 X 1.0 | 8 |
| 1 | 707900443 | LH Lower Cover | 1 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 707900444 | RH Lower Cover | 1 |
| 1 | 707900252 | Drawer | 1 |
| 2 | 293300194 | O-Ring | 2 |
| 1 | 707900318 | Steering Column Deflector Package STD, Base | 1 |
| 1 | 707900597 | STEERING COLUMN DEFLECTOR Except Package STD, Base | 1 |
| 1 | 707900389 | Exterior Cover | 1 |
| 1 | 707900432 | Rear Panel Includes 1800 to 1800d | 1 |
| 1 | 707900357 | UPPER COVER | 1 |
| 3 | 293830005 | Rubber Bumper | 3 |
| 6 | 293150089 | Tuflok Plastic Rivet | 6 |
| 1 | 707900326 | Engine Service Cover | 1 |
| 5 | 293150089 | Tuflok Plastic Rivet | 5 |
| 2 | 707900419 | Support belt cover | 2 |
| 1 | 707900251 | LH Lower Dash | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 1 | 707900320 | Switches Panel | 1 |
| 1 | 707900250 | RH Lower Dash | 1 |
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 5 | 250000722 | Torx Screw M6 X 20 | 5 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 707900285 | Cluster Support Package DPS | 1 |
| 1 | 707900358 | Cluster Support Package XT | 1 |
| 1 | 707900225 | Storage Cover Package XT | 1 |
| 1 | 707900284 | Storage Bin Package XT | 1 |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 Package XT | 2 |
| 1 | 705003264 | Grommet Package XT | 1 |
| 1 | 707900248 | Passenger Handhold | 1 |
| 2 | 250000648 | Torx Screw M6 X 60 | 2 |
| 2 | 269500725 | M6 Nut Housing Ass'y Includes 2420 to 2420b | 2 |
| 1 | 269500252 | M6 Nut Housing Ass'y | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 707900244 | Glove Box Base | 1 |
| 1 | 707900245 | Glove Box Cover | 1 |
| 1 | 269501945 | Clip | 1 |
| 1 | 707900567 | Handle | 1 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 1 | 293000120 | Cap | 1 |
| 1 | 707900291 | LH Front Safety Net Includes 2650 to 2650a | 1 |
| 2 | 707900049 | Upper Link | 2 |
| 1 | 707900292 | RH Front Safety Net Includes 2660 to 2660a | 1 |
| 2 | 250000721 | Torx Truss Screw M6 X 16 | 2 |
| 2 | 707900592 | Safety Net Link | 2 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 1 | 707900414 | Rear Safety Net LH Includes 2800 to 2800a | 1 |
| 1 | 707900365 | Safety Net Link | 1 |
| 1 | 707900415 | Rear Safety Net RH Includes 2900 to 2900a | 1 |
| 1 | 707900608 | Shifter Gate | 1 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 707900506 | Shifter Gate Deflector | 1 |
| 7 | 250100178 | Push Nut | 7 |
| 1 | 707900324 | Floor Cover | 1 |
| 4 | 707900325 | Hose Support | 4 |
| 1 | 707900413 | Floor Cover | 1 |
| 1 | 715003314 | Storage Box Package XT | 1 |
| 1 | 269501945 | Clip Package XT | 1 |
| 1 | 293250168 | Gasket Package XT | 1 |
| 4 | 293830005 | Rubber Bumper Package XT | 4 |
| 1 | 707900426 | Rear Panel | 1 |
| 1 | 707900228 | Rear Lower Bulkhead | 1 |
| 2 | 705005156 | Oval Washer | 2 |
| 7 | 293150089 | Tuflok Plastic Rivet | 7 |
| 5 | 503192494 | Washer | 5 |
| 1 | 235567084 | Torx Screw Button Head M6 X 70 | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 707900282 | Battery Cover | 1 |
| 6 | 250000721 | Torx Truss Screw M6 X 16 | 6 |
| 4 | 233161464 | Hex. Elastic Flange Nut M6 | 4 |
| 9 | 293150089 | Tuflok Plastic Rivet | 9 |
| 2 | 292001663 | Flat Washer 8 mm, Nylon | 2 |
