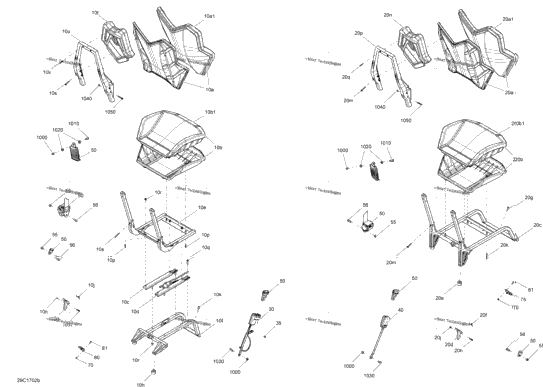

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708002246 | Backrest Ass'y Black Package XDS STD | 1 |
| 1 | 708002271 | BACKREST Package XDS | 1 |
| 1 | 708002248 | Backrest Cover Black Package XDS STD | 1 |
| 1 | 708002272 | COVER Package XDS | 1 |
| 1 | 708002247 | Cushion Ass'y Black Package XDS STD | 1 |
| 1 | 708002273 | Cushion Ass'y Gulfstream Blue Package XDS | 1 |
| 1 | 708002249 | Cushion Cover Black Package XDS STD | 1 |
| 1 | 708002274 | Seat Cover Gulfstream Blue Package XDS | 1 |
| 1 | 708000848 | LH Rail | 1 |
| 1 | 708001739 | RH Rail | 1 |
| 1 | 708001356 | Operator Seat Frame | 1 |
| 1 | 708000667 | Seat Member | 1 |
| 1 | 708001355 | Seat Latch | 1 |
| 2 | 708001671 | Rubber Bumper | 2 |
| 1 | 708000921 | Spring | 1 |
| 1 | 205501644 | Socket Screw M10 X 16 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 4 | 207562544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 4 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 4 | 250000672 | Hex. Flange Screw M6 | 4 |
| 1 | 708001074 | Head Rest | 1 |
| 1 | 708001245 | Seat Support | 1 |
| 4 | 250000897 | Hex. Flange Screw K50 X 40 | 4 |
| 1 | 708001357 | Passenger Seat Frame | 1 |
| 2 | 708001474 | Rear Anchor Maverick MAX | 2 |
| 1 | 708001198 | Seat Support Maverick MAX | 1 |
| 4 | 207562544 | Hex. Flange Screw M6 X 25 Maverick MAX | 4 |
| 12 | 250000672 | Hex. Flange Screw M6 Maverick MAX | 12 |
| 8 | 233161464 | Hex. Elastic Flange Nut M6 Maverick MAX | 8 |
| 4 | 234062670 | Stainless Steel Flat Washer Maverick MAX | 4 |
| 1 | 708001074 | Head Rest Maverick MAX | 1 |
| 1 | 708001245 | Seat Support Maverick MAX | 1 |
| 4 | 250000897 | Hex. Flange Screw K50 X 40 Maverick MAX | 4 |
| 1 | 708000856 | Driver Buckle Side Package XDS | 1 |
| 1 | 708002061 | Driver Buckle Side Package XDS STD | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 708000857 | PASSENGER BUCKLE SIDE Package XDS | 1 |
| 1 | 708002062 | Passenger Buckle Side Package XDS STD | 1 |
| 2 | 708001130 | SAFETY BELT Package XDS | 2 |
| 2 | 708001854 | Safety Belt Package XDS STD | 2 |
| 6 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 6 |
| 6 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 6 |
| 293450274 | Insert | ||
| 1 | 708002303 | Retaining Rod RH | 1 |
| 1 | 708002302 | Retaining Rod LH | 1 |
| 4 | 250000717 | Torx Head Screw M6 X 16 | 4 |
| 2 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 2 |
| 2 | 708000890 | Safety Belt Screw | 2 |
| 4 | 708000891 | Position Washer | 4 |
| 2 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 2 |
| 8 | 233161464 | Hex. Elastic Flange Nut M6 | 8 |
| 8 | 250000672 | Hex. Flange Screw M6 | 8 |
