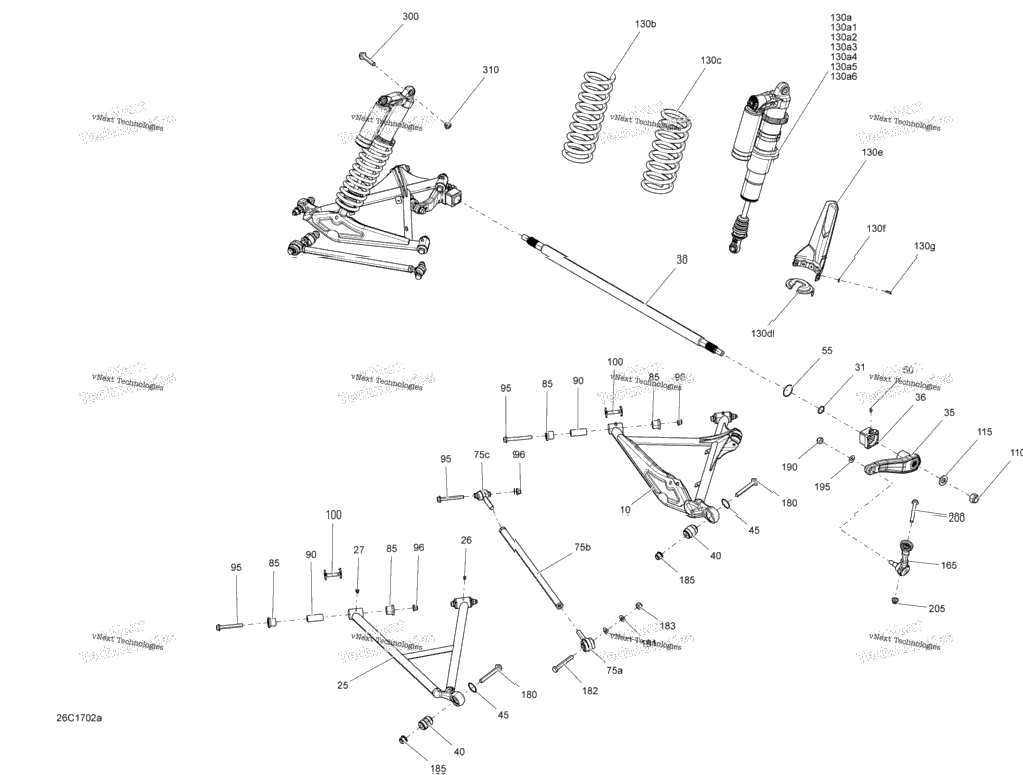

Каталог / Side x Side / Can-Am / 2017 / Maverick / Rear Suspension - All Models

Список запчастей

№	Артикул	Название	Кол-во
4	233221416	Elastic Flange Nut M12	4
	706001848	SUSPENSION ARM REAR L ECOAT Package XC, XC DPS
1	706002223	SUSPENSION ARM REAR L ECOAT Package XDS STD	1
1	706001849	Black RH Rear Upper Arm Package XC, XC DPS	1
1	706002224	SUSPENSION ARM REAR R ECOAT Package XDS STD	1
	706002498	WHITE LH REAR UPPER ARM Package XMR
	706002499	WHITE RH REAR UPPER ARM Package XMR
1	706002095	RED LH REAR UPPER ARM Package DPS	1
1	706002096	Red RH Rear Upper Arm Package DPS	1
1	706002341	Gulfstream Blue LH Rear Upper Arm Package XDS	1
1	706002152	Gulfstream Blue LH Rear Upper Arm Package XMR, DPS	1
	706002154	ARM_SUSPENSION REAR L B-352 PAINTED Package XXC
1	706002342	SUSPENSION ARM REAR R B-352 GULFS BLUE Package XDS	1
1	706002153	SUSPENSION ARM REAR R B-352 GULFS BLUE Package XMR, DPS	1
1	706002155	SUSPENSION ARM REAR R B-352 GULFS BLUE Package XXC	1
1	706001484	LH REAR PAINTED LOWER ARM Package XC, XC DPS, XXC	1
1	706001485	Black RH Rear Lower Arm Package XC, XC DPS, XXC	1
1	706001935	Black LH Rear Lower Arm Package XDS, XDS STD	1
1	706001936	Black RH Rear Lower Arm Package XDS, XDS STD	1
1	706001354	Black LH Rear Lower Arm Package XMR, DPS	1
1	706001355	Black RH Rear Lower Arm Package XMR, DPS	1
6	408200700	Grease Fitting	6
2	293550056	Grease Fitting 90°	2
1	706001356	Sway Bar	1
2	706000251	Retaining Ring	2
2	706001371	Sway Bar Lever	2
2	706001402	Sway Bar Housing	2
4	706001373	Radial Joint	4
4	293370093	Retaining Ring	4
2	408200700	Grease Fitting	2
2	293300100	O-Ring	2
1	706001437	Ball Joint	1
1	706001801	Adjustment Rod Package XC, XC DPS, XXC	1
1	706002081	Adjustment Rod Package XMR, DPS, XDS, XDS STD	1
1	706001798	Ball Joint	1
16	706201659	Cushion	16
8	706201590	Sleeve	8
10	207608046	Hex Flange Screw M10 X 80	10
10	233201416	Hex. Flange Elastic Nut M10	10
8	706201660	Wear Plate	8
2	232591414	Elastic Stop Nut M18	2
2	250200045	Washer	2
2	706002129	REAR SHOCK Package XDS	2
2	706002627	SHOCK Package XDS STD	2
2	706002056	Rear Shock Package XC, XXC, XC DPS	2
2	706002613	Rear Shock Package DPS	2
2	706002623	REAR SHOCK Package XMR	2
2	715900266	Spherical Bearing Package XC, XXC, XC DPS, DPS	2
2	715900329	Spherical Bearing Package XMR	2
2	715900337	Spherical Bearing Package XDS STD, XDS	2
2	715900330	Spherical Bearing Package XC, XXC, XC DPS, DPS, XMR	2
2	715900331	Protector Package XC, XXC, XC DPS, DPS, XMR	2
2	715900268	O-Ring Bushing Package XC, XXC, XC DPS, DPS, XMR	2
4	715900338	O-Ring Bushing Package XDS STD, XDS	4
4	715900339	CIRCLIP Package XDS STD, XDS	4
4	715900252	Retaining Ring Package XC, XXC, XC DPS, DPS, XMR	4
2	715900267	Internal Bushing Package XC, XXC, XC DPS, DPS, XMR	2
4	715900340	INTERNAL BUSHING Package XDS STD, XDS	4
2	706002546	SPRING Package XC DPS	2
2	706002505	WHITE REAR SPRING Package XMR	2
2	706002520	SPRING Package DPS	2
2	706002510	DEEP BLACK SPRING Package XDS STD	2
2	706002502	Rear Spring Gulfstream Blue Package DPS	2
2	706002439	Rear Spring Gulfstream Blue Package XDS STD, XDS	2
2	706002165	REAR SPRING GULFSTREAM BLUE Package XMR	2
2	706002544	SPRING Package XXC	2
	706001462	YELLOW REAR SPRING Package XC
2	706002511	DEEP BLACK SPRING Package XDS STD	2
2	706002440	SPRING Package XDS STD, XDS	2
2	706202216	SPRING RETAINER Package XDS STD, XDS	2
2	706202215	Protector Package XDS STD, XDS	2
12	250200025	Washer M5 Package XDS STD, XDS	12
6	210251650	Hex. Forming Screw M5 X 16 Package XDS STD, XDS	6
1	706001741	LH Double Ball Joint Package XC, XC DPS, XXC, DPS, XMR	1
1	706001742	RH Double Ball Joint Package XC, XC DPS, XXC, DPS, XMR	1
1	706002089	LH Double Ball Joint Package XDS STD, XDS	1
1	706002090	RH Double Ball Joint Package XDS STD, XDS	1
4	207628546	Hex. Flange Screw M12 X 85	4
4	250200086	Flat Washer	4
2	207028046	Hex. Screw M12 X 80	2
2	232521416	Elastic Stop Nut M12	2
4	250000047	Hex. Flange Elastic Nut M12	4
2	207607046	Hex. Flange Screw M10 X 70 Package XMR, XC, XC DPS, XXC, DPS	2
2	233201416	Hex. Flange Elastic Nut M10 Package XMR, XC, XC DPS, XXC, DPS	2
4	207626046	Hex. Flange Screw M12 X 60	4
