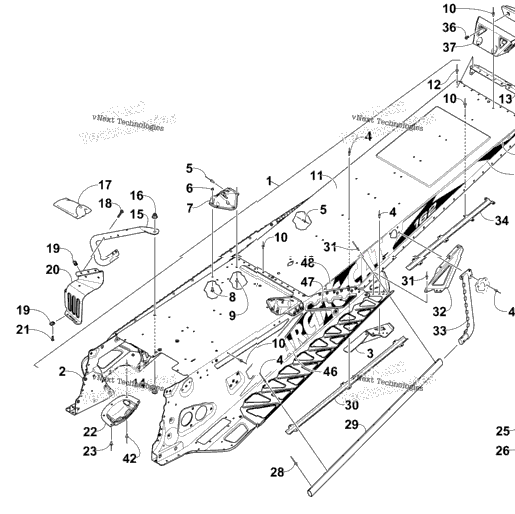

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2707-009 | Complete Chassis Assembly - Green | 1 |
| 2707-357 | Tunnel Assembly - Green (inc. 2-13) | ||
| 2707-345 | Tunnel, Front - Assembly - Green (inc. 3-4) | ||
| 1 | 2707-342 | Bracket, Mounting - Suspension - Right - Green | 1 |
| 1 | 2707-343 | Bracket, Mounting - Suspension - Left - Green | 1 |
| 1 | 8060-686 | Rivet - Zinc | 1 |
| 14 | 1623-206 | Rivet | 14 |
| 6 | 8422-502 | Nut, Lock | 6 |
| 1 | 2707-340 | Bracket, Mounting - Rear Spar - Right Green | 1 |
| 1 | 2707-341 | Bracket, Mounting - Rear Spar - Left Green | 1 |
| 6 | 8476-512 | Screw, Machine | 6 |
| 2 | 1623-257 | Rivet | 2 |
| 1 | 8060-682 | Rivet | 1 |
| 1 | 2707-355 | Tunnel, Rear - Green | 1 |
| 1 | 8060-484 | Rivet | 1 |
| 1 | 2707-315 | End Cap, Tunnel - Green | 1 |
| 2 | 8476-820 | Screw, Machine | 2 |
| 1 | 1707-454 | Support, Footrest - Right | 1 |
| 1 | 1707-455 | Support, Footrest - Left | 1 |
| 2 | 8427-802 | Nut, Lock | 2 |
| 0744-090 | Kit, Tool | ||
| 4 | 8468-535 | Screw, Machine | 4 |
| 9 | 1623-637 | Clip, U-Nut | 9 |
| 1 | 2707-004 | Footrest - Right - Green | 1 |
| 1 | 2707-005 | Footrest - Left - Green | 1 |
| 4 | 8470-516 | Screw, Machine | 4 |
| 1 | 1607-109 | Protector, Chain Case | 1 |
| 8 | 8061-708 | Rivet | 8 |
| 1 | 0607-351 | Protector, Brake Disc | 1 |
| 1 | 2707-042 | Shield, Brake Disc - Green | 1 |
| 2 | 8408-613 | Screw, Cap | 2 |
| 1 | 8470-520 | Screw, Machine | 1 |
| 1 | 1623-130 | Rivet | 1 |
| 2 | 2707-346 | Roll, Tunnel - Green | 2 |
| 1 | 0630-307 | Protector, Taillight Harness | 1 |
| 1 | 1623-241 | Rivet | 1 |
| 1 | 2707-336 | Gusset, Running Board - Right - Green | 1 |
| 1 | 2707-337 | Gusset, Running Board - Left - Green | 1 |
| 1 | 2707-338 | Gusset, Tunnel Roll - Right - Green | 1 |
| 1 | 2707-339 | Gusset, Tunnel Roll - Left - Green | 1 |
| 0630-280 | Protector, Harness - Taillight | ||
| 2 | 0621-990 | Decal, Reflector - Red | 2 |
| 2 | 8470-510 | Screw, Machine | 2 |
| 1 | 0730-230 | Bracket, Mounting - Taillight - Green | 1 |
| 1 | 0609-898 | Taillight, LED | 1 |
| 1 | 6606-394 | Snowflap | 1 |
| 1 | 5611-852 | Decal, Warning - Towing (French) | 1 |
| 1 | 5611-853 | Decal, Warning - Towing (English) | 1 |
| 7 | 8061-706 | Rivet | 7 |
| 1 | 2707-598 | Bumper, Rear - 162" - Green | 1 |
| 2 | 8476-620 | Screw, Machine | 2 |
| 2 | 8427-602 | Nut, Hex | 2 |
| 1 | 2621-414 | Decal, Tunnel - Front - Right - Green | 1 |
| 1 | 2621-415 | Decal, Tunnel - Front - Left - Green | 1 |
| 1 | 2621-412 | Decal, Tunnel - Center - Right - Green | 1 |
| 1 | 2621-413 | Decal, Tunnel - Center - Left - Green | 1 |
| 1 | 2621-410 | Decal, Tunnel - Rear - Right | 1 |
| 1 | 2621-411 | Decal, Tunnel - Rear - Left | 1 |
| 2621-460 | Decal, Tunnel - "162" - Right - Green | ||
| 2621-461 | Decal, Tunnel - "162" - Left - Green |
