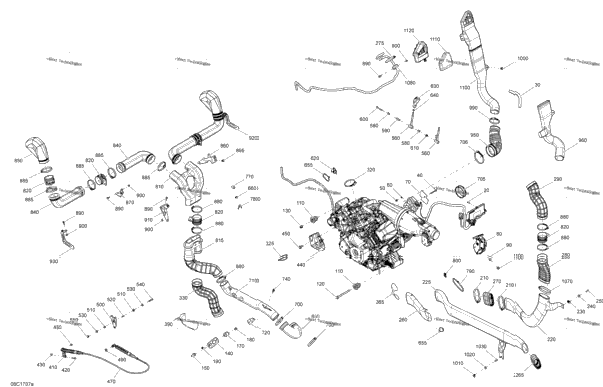

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 707001166 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 233081416 | Hex. Flange Nut M8 | 2 |
| 4 | 707001170 | Anti Vibration Buffer | 4 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 707000707 | Upper Engine Bracket | 1 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 707000949 | Rubber Isolator | 1 |
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 2 | 293650091 | Norma Clamp | 2 |
| 1 | 707001361 | AIR INLET | 1 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 1 | 250200082 | Flat Washer | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 707000924 | Reflective Sheet | 1 |
| 1 | 707001467 | Flexible Adaptor | 1 |
| 1 | 707001377 | AIR INLET | 1 |
| 1 | 707001378 | Air Inlet | 1 |
| 1 | 293650118 | Norma Gear Clamp | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 707001380 | CVT Outlet | 1 |
| 2 | 707000991 | Reflective Sheet | 2 |
| 1 | 707000911 | Lever | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 707000919 | Cable Support | 1 |
| 1 | 707001210 | Shifting Cable | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 707000828 | Lower Lever Arm | 1 |
| 2 | 707000847 | Flanged Bushing | 2 |
| 1 | 707000801 | Bushing | 1 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707001376 | Bushing | 1 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707000284 | Lever Handle | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 4 | 293750008 | Tie Wrap 368 mm | 4 |
| 1 | 414415200 | Spring Clamp | 1 |
| 707001866 | CVT OUTLET | ||
| 2 | 293650118 | Norma Gear Clamp | 2 |
| 707001911 | PLUG | ||
| 3 | 514052924 | Norma Clamp | 3 |
| 1 | 707001381 | Front CVT Outlet | 1 |
| 1 | 707001231 | Front Support | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 707001185 | Plug | 1 |
| 1 | 707800506 | Retainer Clip | 1 |
| 1 | 710002899 | Clip Tie-Rap | 1 |
| 1 | 707001532 | CVT Outlet | 1 |
| 1 | 707001855 | Front CVT Outlet | 1 |
| 6 | 707001383 | Adaptor | 6 |
| 4 | 707001385 | CVT Outlet | 4 |
| 2 | 707001386 | Rear CVT Outlet | 2 |
| 1 | 707001483 | Support | 1 |
| 1 | 707001388 | Right Support | 1 |
| 6 | 293650091 | Norma Clamp | 6 |
| 10 | 293750065 | Tie Rap 367mm | 10 |
| 11 | 207662054 | Hex. Flange Screw M6 X 20 | 11 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 11 | 233261494 | Hex. Elastic Flange Nut M6 | 11 |
| 1 | 707001389 | Central Support | 1 |
| 1 | 707001390 | Left Support | 1 |
| 1 | 707001391 | Right Support | 1 |
| 1 | 707001910 | Air Inlet | 1 |
| 1 | 293650091 | Norma Clamp | 1 |
| 1 | 293650218 | Hose Retainer | 1 |
| 1 | 707001640 | AIR INLET | 1 |
| 1 | 707001482 | CVT Filter | 1 |
| 1 | 707001481 | Deflector | 1 |
