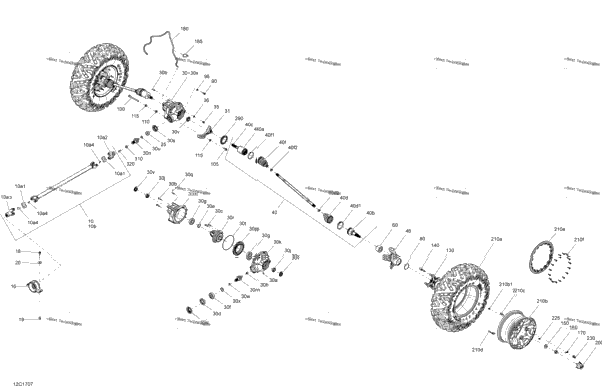

Каталог / Side x Side / Can-Am / 2017 / Maverick / Drive System, Front - All Models

Список запчастей

№	Артикул	Название	Кол-во
1	703500940	Drive Shaft Ass'y Includes 10 to 10b	1
2	715900435	U-Joint Cross Kit	2
1	715900116	Fixed Yoke Joint	1
1	715900231	Yoke Joint	1
0	715900483	Cover	0
1	703500815	Grease Fitting	1
1	705400036	Wear Ring	1
1	703500907	Front Differential XDS_XC	1
1	703500907	Front Differential Package XDS, XC	1
1	703500908	Front Differential XCDPS_XMR_XXC	1
1	703500908	Front Differential Package XC DPS, XMR, XXC	1
1	703500908	Front Differential XDSSTD_DPS	1
1	703500908	Front Differential Package XDS STD, DPS	1
1	705501885	Drain Plug	1
6	705401601	Screw	6
8	705401602	Screw	8
1	705401603	Nut	1
1	705401604	Shim	1
1	705401605	Ball Bearing	1
2	705401606	Ball Bearing	2
1	705401607	Needle Bearing	1
2	705401608	Ball Bearing	2
1	705401792	Front Pinion Cover	1
1	705401610	Front Cover	1
1	705401791	Pinion 10 Teeth	1
1	705401612	Gear 36 Teeth	1
1	705401613	Vent Valve	1
1	705401506	Differential XCDPS_XMR_XXC	1
1	705401506	Differential Package XC DPS, XMR, XXC	1
1	705401506	Differential XDSSTD_DPS	1
1	705401506	Differential Package XDS STD, DPS	1
1	705401614	Differential XDS_XC	1
1	705401614	Differential Package XDS, XC	1
1	705401615	Oil Seal	1
1	705401616	Seal	1
1	705401617	O'Ring	1
2	705401618	Gasket	2
1	705401769	Shim	1
1	705401770	Shim	1
1	705401600	SUPPORT	1
1	705500504	Fill Level Plug	1
1	705500506	Copper Washer	1
1	705401874	RH CV Joint DPS_XDSSTD_XDS	1
1	705401874	RH CV Joint Package DPS, XDS STD, XDS	1
1	705401876	RH CV Joint XC_XCDPS_XXC	1
1	705401876	RH CV Joint Package XC, XC DPS, XXC	1
1	705401878	RH CV Joint XMR	1
1	705401878	RH CV Joint Package XMR	1
1	705401873	LH CV Joint DPS_XDSSTD_XDS	1
1	705401873	LH CV Joint Package DPS, XDS STD, XDS	1
1	705401875	LH CV Joint XC_XCDPS_XXC	1
1	705401875	LH CV Joint Package XC, XC DPS, XXC	1
1	705401877	LH CV Joint XMR	1
1	705401877	LH CV Joint Package XMR	1
1	715900431	RH Plunging Joint DPS_XDSSTD_XDS	1
1	715900431	RH Plunging Joint Package DPS, XDS STD, XDS	1
1	715900431	RH Plunging Joint XC_XCDPS_XXC	1
1	715900431	RH Plunging Joint Package XC, XC DPS, XXC	1
1	715900395	RH Plunging CV Joint XMR	1
1	715900395	RH Plunging CV Joint Package XMR	1
1	715900430	LH Plunging Joint DPS_XDSSTD_XDS	1
1	715900430	LH Plunging Joint Package DPS, XDS STD, XDS	1
1	715900430	LH Plunging Joint XC_XCDPS_XXC	1
1	715900430	LH Plunging Joint Package XC, XC DPS, XXC	1
1	715900396	LH Plunging CV Joint XMR	1
1	715900396	LH Plunging CV Joint Package XMR	1
1	715900427	CV Joint DPS_XDSSTD_XDS	1
1	715900427	CV Joint Package DPS, XDS STD, XDS	1
1	715900427	CV Joint XC_XCDPS_XXC	1
1	715900427	CV Joint Package XC, XC DPS, XXC	1
1	715900428	CV Joint XMR	1
1	715900428	CV Joint Package XMR	1
1	705401349	Circlip Joint	1
1	705401345	Boot Kit, Wheel Side DPS_XDSSTD_XDS	1
1	705401345	Boot Kit, Wheel Side Package DPS, XDS STD, XDS	1
1	705401345	Boot Kit, Wheel Side XC_XCDPS_XXC	1
1	705401345	Boot Kit, Wheel Side Package XC, XC DPS, XXC	1
1	705401354	Boot Kit, Wheel Side XMR	1
1	705401354	Boot Kit, Wheel Side Package XMR	1
1	715900282	Oetiker Clamp DPS_XDSSTD_XDS	1
1	715900282	Oetiker Clamp Package DPS, XDS STD, XDS	1
1	715900282	Oetiker Clamp XC_XCDPS_XXC	1
1	715900282	Oetiker Clamp Package XC, XC DPS, XXC	1
1	715900260	Oetiker Clamp, Large XMR	1
1	715900260	Oetiker Clamp, Large Package XMR	1
1	715900283	Oetiker Clamp, Small DPS_XDSSTD_XDS	1
1	715900283	Oetiker Clamp, Small Package DPS, XDS STD, XDS	1
1	715900283	Oetiker Clamp, Small XC_XCDPS_XXC	1
1	715900283	Oetiker Clamp, Small Package XC, XC DPS, XXC	1
1	715900261	Oetiker Clamp, Small XMR	1
1	715900261	Oetiker Clamp, Small Package XMR	1
1	705401346	Boot Kit, Differential Side DPS_XDSSTD_XDS	1
1	705401346	Boot Kit, Differential Side Package DPS, XDS STD, XDS	1
1	705401346	Boot Kit, Differential Side XC_XCDPS_XXC	1
1	705401346	Boot Kit, Differential Side Package XC, XC DPS, XXC	1
1	705401355	Boot Kit, Différential Side XMR	1
1	705401355	Boot Kit, Différential Side Package XMR	1
1	715900284	Oetiker Clamp, Large DPS_XDSSTD_XDS	1
1	715900284	Oetiker Clamp, Large Package DPS, XDS STD, XDS	1
1	715900284	Oetiker Clamp, Large XC_XCDPS_XXC	1
1	715900284	Oetiker Clamp, Large Package XC, XC DPS, XXC	1
1	715900261	Oetiker Clamp, Small DPS_XDSSTD_XDS	1
1	715900261	Oetiker Clamp, Small Package DPS, XDS STD, XDS	1
1	715900261	Oetiker Clamp, Small XC_XCDPS_XXC	1
1	715900261	Oetiker Clamp, Small Package XC, XC DPS, XXC	1
1	715900262	Oetiker Clamp, Large XMR	1
1	715900262	Oetiker Clamp, Large Package XMR	1
1	705401548	LH Front Knuckle	1
1	705401549	RH Front Knuckle	1
2	293350118	Cone Bearing	2
2	293370019	Circlip	2
2	207582044	Hex. Flange Screw M8 X 20, Scotch Grip	2
2	234281474	Conical Spring Washer M8	2
2	230602546	Hex. Flange Screw M10 X 125	2
2	207602546	Hex. Flange Screw M10 X 25	2
2	250200014	Flat Washer M10	2
4	234201474	Conical Spring Washer 10 mm	4
2	705501900	Wheel Hub	2
8	250300060	Wheel Stud	8
2	250200049	Spring Washer	2
2	250100047	Hex. Castellated Nut M18	2
2	250400071	Cotter Pin	2
	414834000	Formed Hose
1	414115200	Tie-Rap 180 mm	1
2	705400928	Wheel Cap Except XMR_XDSSTD	2
2	705400928	Wheel Cap Except Package XMR, XDS STD	2
2	705401541	Wheel Cap XMR_XDSSTD	2
2	705401541	Wheel Cap Package XMR, XDS STD	2
2	705401385	Front Tire Maxxis 27X9X12 XC_XCDPS_DPS	2
2	705401385	Front Tire Maxxis 27X9X12 Package XC, XC DPS, DPS	2
2	705401386	Front Tire XXC Europe	2
2	705401386	Front Tire Package XXC Europe	2
2	705401385	Front Tire Maxxis 27X9X12 XXC Except Europe	2
2	705401385	Front Tire Maxxis 27X9X12 Package XXC Except Europe	2
2	705401592	Front Tire XDSSTD	2
2	705401592	Front Tire Package XDS STD	2
2	705401046	Front Tire XDS	2
2	705401046	Front Tire Package XDS	2
	705401501	TIRE_30X9R14 XMR
	705401501	TIRE_30X9R14 Package XMR
2	705401417	Deep Black, 12" X 6 Rim XC_XCDPS_DPS_XDS	2
2	705401417	Deep Black, 12" X 6 Rim Package XC, XC DPS, DPS, XDS	2
2	705401564	Black Front Rim XDSSTD	2
2	705401564	Black Front Rim Package XDS STD	2
2	705401848	Front Rim XMR	2
2	705401848	Front Rim Package XMR	2
2	705401678	Black, Rim XXC	2
2	705401678	Black, Rim Package XXC	2
32	293450317	Insert	32
2	705400193	Rim Valve With Cap	2
1	219704465	1/2 OZ Weight	1
2	705401695	Blue Painted Reinforcement Disk XXC	2
2	705401695	Blue Painted Reinforcement Disk Package XXC	2
32	250000787	Hex. Flange Screw M6 X 25 XXC	32
32	250000787	Hex. Flange Screw M6 X 25 Package XXC	32
2	293000110	Valve Cap	2
8	250100184	Black, Wheel Nut M10 X 1.25	8
2	705400780	Wear Sleeve Except XMR	2
2	705400780	Wear Sleeve Except Package XMR	2
1	250200014	Flat Washer M10	1
1	250000847	Hex. Flange Screw M10 X 20	1
