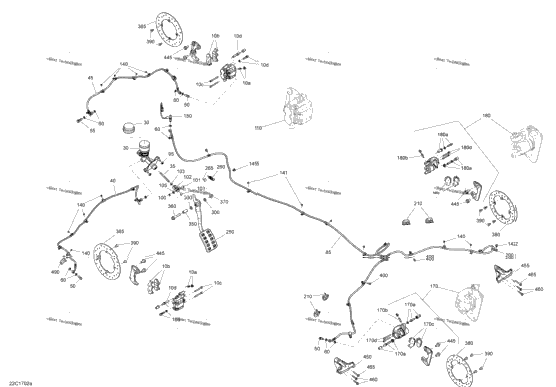

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600678 | RH Caliper Package XC, XC DPS, XXC, DPS | 1 |
| 1 | 705601129 | RH Caliper Ass'y Package XDS, XMR, XDS STD | 1 |
| 1 | 705600679 | LH Caliper Package XC, XC DPS, XXC, DPS | 1 |
| 1 | 705601128 | LH Caliper Ass'y Package XDS, XMR, XDS STD | 1 |
| 2 | 705600080 | Bleeding Screw | 2 |
| 1 | 715500336 | RH Brake Pad Kit Package XC, XC DPS, XXC, DPS | 1 |
| 1 | 705601150 | RH Brake Pad Kit Package XDS, XMR, XDS STD | 1 |
| 1 | 715500335 | LH Brake Pad Kit Package XC, XC DPS, XXC, DPS | 1 |
| 1 | 705601149 | LH Brake Pad Kit Package XDS, XMR, XDS STD | 1 |
| 2 | 715500337 | Sliding Pin Kit Package XC, XC DPS, XXC, DPS | 2 |
| 2 | 705601151 | Hanger Pin Kit Package XDS, XMR, XDS STD | 2 |
| 2 | 715500383 | Spring Boot Bolt Kit Package XC, XC DPS, XXC, DPS | 2 |
| 2 | 715500385 | Spring And Bolt Kit Package XDS, XMR, XDS STD | 2 |
| 1 | 705601505 | Master Cylinder Ass'y | 1 |
| 1 | 705600833 | Master Cylinder Rod | 1 |
| 1 | 705601079 | LH Front Flexible Hose Package DPS | 1 |
| 1 | 705601192 | LH Front Flexible Hose Ass'y Package XMR, XDS STD, XDS | 1 |
| 1 | 705601219 | LH FRONT FLEXIBLE HOSE ASS'Y Package XC, XCDPS, XXC | 1 |
| 1 | 705601080 | RH Front Flexible Hose Package DPS | 1 |
| 1 | 705601193 | RH Front Flexible Hose Ass'y Package XMR, XDS STD, XDS | 1 |
| 1 | 705601220 | RH FRONT FLEXIBLE HOSE ASS'Y Package XC, XCDPS, XXC | 1 |
| 4 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 4 |
| 1 | 705600958 | Banjo Bolt | 1 |
| 13 | 705600310 | Copper Washer | 13 |
| 1 | 705601145 | Rear Flexible Hose Package XC, XCDPS, XXC | 1 |
| 1 | 705601218 | Rear Flexible Hose Package DPS, XMR | 1 |
| 1 | 705601529 | REAR FLEXIBLE HOSE Package XDS STD, XDS | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 371800700 | Cotter Pin | 1 |
| 1 | 250400058 | Pin | 1 |
| 1 | 705601142 | Yoke | 1 |
| 2 | 232081414 | Hex. Nut M8 | 2 |
| 1 | 234081430 | Flat Washer M8 | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 5 | 210261040 | Hex. Flange Screw M6 X 10 | 5 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 705601250 | Brake Switch | 1 |
| 1 | 705601089 | LH Caliper Ass'y Includes 170 to 170d | 1 |
| 1 | 715500384 | Spring, Protector And Bolt Kit | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600398 | LH Brake Pad Kit | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705601090 | RH Caliper Ass'y Includes 180 to 180d | 1 |
| 1 | 705601147 | RH Brake Pad Kit | 1 |
| 2 | 518321570 | Open Clamp | 2 |
| 4 | 705601380 | HOSE CLAMP Package XDS, XDS DPS | 4 |
| 1 | 705600724 | Brake Pedal | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 708000759 | Rubber Stopper | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 705600815 | Inner Spacer | 1 |
| 1 | 207605544 | Hex. Flange Screw M10 X 55 | 1 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 2 | 705600999 | Disc Brake | 2 |
| 2 | 705601178 | Disc Brake | 2 |
| 16 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 16 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 | 2 |
| 8 | 250000601 | Hex. Flange Screw M10 X 20, Scotch Grip | 8 |
| 1 | 705601403 | LH DEFLECTOR | 1 |
| 1 | 705601404 | RH DEFLECTOR | 1 |
| 4 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 4 |
| 2 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip | 2 |
| 2 | 705601337 | Bracket | 2 |
