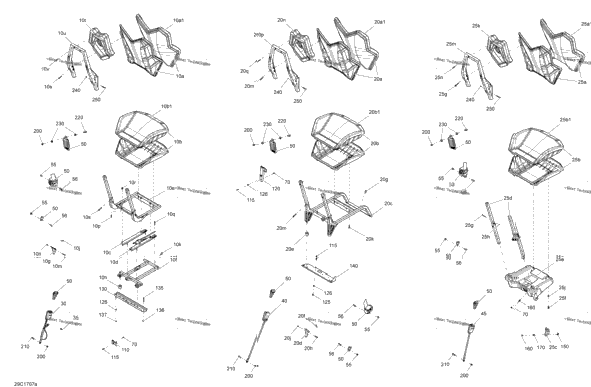

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708001316 | Backrest Assembly Package DPS | 1 |
| 1 | 708002271 | BACKREST Package XMR | 1 |
| 1 | 708000675 | Backrest Cover Package DPS | 1 |
| 1 | 708002272 | COVER Package XMR | 1 |
| 1 | 708001318 | Cushion Assembly Package DPS | 1 |
| 1 | 708002273 | Cushion Ass'y Gulfstream Blue Package XMR | 1 |
| 1 | 708001103 | Seat Cover Package DPS | 1 |
| 1 | 708002274 | Seat Cover Gulfstream Blue Package XMR | 1 |
| 1 | 708000848 | LH Rail | 1 |
| 1 | 708001739 | RH Rail | 1 |
| 1 | 708001356 | Operator Seat Frame | 1 |
| 1 | 708001174 | Seat Member | 1 |
| 1 | 708001355 | Seat Latch | 1 |
| 2 | 708001671 | Rubber Bumper | 2 |
| 1 | 708000921 | Spring | 1 |
| 1 | 205501644 | Socket Screw M10 X 16 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 4 | 207562544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 4 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 | 8 |
| 4 | 250000672 | Hex. Flange Screw M6 | 4 |
| 1 | 708001074 | Head Rest | 1 |
| 1 | 708001245 | Seat Support | 1 |
| 4 | 250000897 | Hex. Flange Screw K50 X 40 | 4 |
| 1 | 708001357 | Passenger Seat Frame | 1 |
| 2 | 708001474 | Rear Anchor | 2 |
| 2 | 708001476 | Side Tube | 2 |
| 1 | 708001198 | Seat Support | 1 |
| 12 | 250000672 | Hex. Flange Screw M6 | 12 |
| 8 | 233161464 | Hex. Elastic Flange Nut M6 | 8 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 708002061 | Driver Buckle Side | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 708002064 | Passenger Buckle Side | 1 |
| 2 | 708002063 | Rear Passenger Buckle Side | 2 |
| 4 | 708001854 | Safety Belt | 4 |
| 10 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 10 |
| 10 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 10 |
| 293450274 | Insert | ||
| 1 | 708001212 | Anchor | 1 |
| 8 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 8 |
| 1 | 708001213 | Anchor | 1 |
| 4 | 233061414 | Hex. Flange Nut M6 | 4 |
| 7 | 234062670 | Stainless Steel Flat Washer | 7 |
| 1 | 708001214 | Seat Support | 1 |
| 2 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 | 2 |
| 1 | 250100171 | Panel Nut M6 X 1.0 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 708001804 | Support | 1 |
| 4 | 250100171 | Panel Nut M6 X 1.0 | 4 |
| 4 | 234281474 | Conical Spring Washer M8 | 4 |
| 6 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 | 6 |
| 2 | 250000521 | Hex. Cap Screw 7/16'' X 1'' | 2 |
| 4 | 708000890 | Safety Belt Screw | 4 |
| 8 | 708000891 | Position Washer | 8 |
| 16 | 233161464 | Hex. Elastic Flange Nut M6 | 16 |
| 16 | 250000672 | Hex. Flange Screw M6 | 16 |
