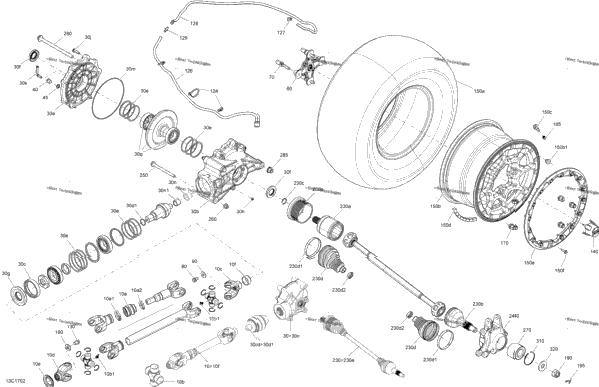

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 703500938 | Drive Shaft Ass'y Engine 1000R EFI | 1 |
| 1 | 703500939 | Drive Shaft Ass'y Engine 1000T EFI | 1 |
| 1 | 715900118 | Rubber Boot Includes 10a to 10a2 | 1 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 509000045 | Oetiker Gear Clamp 36.1MM | 1 |
| 1 | 703500846 | Universal Joint Ass'y Includes 10a2 to 10a2a | 1 |
| 1 | 715900295 | Grease Fitting | 1 |
| 1 | 715900271 | Joint | 1 |
| 1 | 715900436 | Joint | 1 |
| 1 | 705501123 | Protector | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705502275 | Final Drive Unit Includes 30 to 30n | 1 |
| 1 | 705502171 | REAR COVER | 1 |
| 1 | 705502172 | PINION COVER | 1 |
| 705501740 | NUT | ||
| 1 | 703500867 | Pinion Kit Includes 30d to 30d1 | 1 |
| 1 | 705501554 | O-Ring | 1 |
| 1 | 703500839 | Differential Shim Kit | 1 |
| 2 | 705501556 | Oil Seal | 2 |
| 1 | 705502276 | Oil Seal | 1 |
| 1 | 705501724 | Plug Drain | 1 |
| 7 | 705502063 | Screw | 7 |
| 1 | 705501584 | Breather Tube | 1 |
| 1 | 705501749 | Oil Seal | 1 |
| 1 | 703500869 | Bearing Kit Includes 30n to 30n1 | 1 |
| 1 | 703500840 | Needle Bearing | 1 |
| 1 | 703500868 | Gear Kit | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 2 | 705502223 | Wheel Hub ( 29 Splines ) | 2 |
| 8 | 250300060 | Wheel Stud | 8 |
| 1 | 250000615 | Screw-Hex.Flange M10 X 16 | 1 |
| 1 | 250200014 | Flat Washer M10 | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 710003168 | Dart Tie Rap 200MM | 1 |
| 1 | 219704388 | Was 293830177 Hose | 1 |
| 1 | 414227300 | Clip Package XMR | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Package XMR | 1 |
| 1 | 293710039 | Straight Fitting Package XMR | 1 |
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 2 | 705400928 | Wheel Cap Except Package XMR, XDS STD | 2 |
| 2 | 705401541 | Wheel Cap Package XMR, XDS STD | 2 |
| 705401501 | TIRE_30X9R14 Package XMR | ||
| 2 | 705501817 | Rear Tire Maxxis 27X11X12 Package DPS | 2 |
| 2 | 705502144 | Rear Tire Engine 1000T EFI | 2 |
| 2 | 705401848 | Front Rim Package XMR | 2 |
| 2 | 705501853 | Deep Black, 12 Inch Rim X 7,5 Package DPS | 2 |
| 2 | 705502103 | Black Rear Rim Package XDS STD | 2 |
| 2 | 705502146 | Black, Rim Package XDS XRS, XDS DPS | 2 |
| 16 | 293450317 | Insert Package XDS XRS, XDS DPS | 16 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 2 | 705401837 | Red, Reinforcement Disk Package XDS XRS | 2 |
| 2 | 705401702 | Blue Reinforcement Disk Package XDS DPS | 2 |
| 32 | 250000787 | Hex. Flange Screw M6 X 25 Package XDS XRS, XDS DPS | 32 |
| 2 | 293000110 | Valve Cap | 2 |
| 8 | 250100184 | Black, Wheel Nut M10 X 1.25 | 8 |
| 1 | 250200005 | Conical Spring Washer M12 | 1 |
| 2 | 250100161 | Castle Nut M20 | 2 |
| 2 | 250400071 | Cotter Pin | 2 |
| 2 | 705502412 | CV Joint Engine 1000T EFI | 2 |
| 2 | 705502413 | CV Joint Package DPS | 2 |
| 2 | 705502414 | CV Joint Package XMR | 2 |
| 1 | 715900433 | Plunging Joint Engine 1000T EFI | 1 |
| 1 | 715900432 | Plunging Joint Package DPS, XMR | 1 |
| 715900429 | JOINT_CV EXT | ||
| 1 | 705501781 | Circlip | 1 |
| 2 | 705501864 | Boot Kit Includes 230d to 230d2 | 2 |
| 1 | 715900241 | Oetiker Clamp, 82.1 mm | 1 |
| 1 | 715900242 | Oetiker Clamp, 27.3 mm | 1 |
| 1 | 705501841 | HEAT DISSIPATOR Package DPS, XMR | 1 |
| 1 | 705501730 | LH Rear Knuckle | 1 |
| 1 | 705501731 | RH Rear Knuckle | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 293350118 | Cone Bearing | 2 |
| 1 | 230629087 | Hex. Flange Screw M12 X 190 | 1 |
| 1 | 233221416 | Elastic Flange Nut M12 | 1 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200147 | Washer M20 | 2 |
