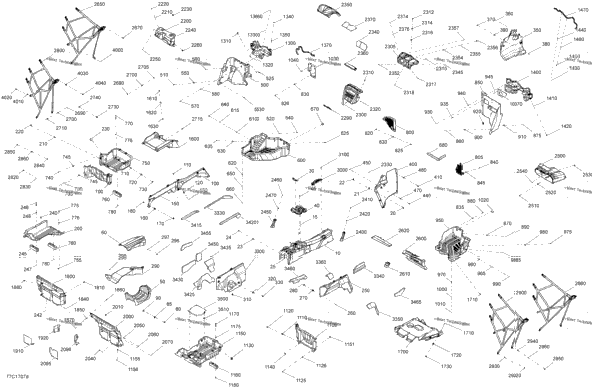

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715003370 | Front Console Kit | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 8 | 293150089 | Tuflok Plastic Rivet | 8 |
| 7 | 707900133 | Insert | 7 |
| 7 | 503189273 | Washer | 7 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 4 | 707900036 | Cup Retainer | 4 |
| 1 | 707900100 | Cup Holder | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 707900468 | Rear Console | 1 |
| 1 | 707900229 | Rear Console Cover Kit | 1 |
| 1 | 707900133 | Insert | 1 |
| 1 | 503189273 | Washer | 1 |
| 1 | 707900001 | LH Side Console | 1 |
| 7 | 293150089 | Tuflok Plastic Rivet | 7 |
| 4 | 707900133 | Insert | 4 |
| 4 | 503189273 | Washer | 4 |
| 1 | 707900391 | Rear LH consol | 1 |
| 2 | 707900133 | Insert | 2 |
| 2 | 503189273 | Washer | 2 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 1 | 707900387 | Under cover | 1 |
| 1 | 207662054 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 293250242 | Rubber Cover | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 506151252 | Washer | 1 |
| 1 | 707900099 | Support Plate | 1 |
| 2 | 207667056 | Hex. Flange Screw M6 X 70 | 2 |
| 293450274 | Insert | ||
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900388 | Rear Floor cap | 1 |
| 705205445 | INSERT SUPPORT | ||
| 1 | 293150103 | Pop Rivet 3/16" | 1 |
| 1 | 707900080 | RH Rear Console Panel | 1 |
| 1 | 707900193 | Front Side Dash Panel | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 707900203 | RH FIXE SIDE CONSOLE | 1 |
| 5 | 293150089 | Tuflok Plastic Rivet | 5 |
| 2 | 506151252 | Washer | 2 |
| 1 | 707900175 | LH Front Upper Floor | 1 |
| 4 | 250000712 | Torx Screw M6 X 20 | 4 |
| 3 | 250000758 | Torx Screw M6 X 25 | 3 |
| 7 | 233261494 | Hex. Elastic Flange Nut M6 | 7 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
| 6 | 250000720 | Torx Screw K50 X 16 | 6 |
| 6 | 234062410 | Flat Washer 6 mm | 6 |
| 1 | 707900022 | LH Lower Floor | 1 |
| 1 | 250000712 | Torx Screw M6 X 20 | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 3 | 250000048 | Panel Nut M6 X 1.0 | 3 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 1 | 219704382 | Was 293250381 Seal Tray | 1 |
| 1 | 707900082 | LH Rear Upper Floor Cover | 1 |
| 1 | 250000758 | Torx Screw M6 X 25 | 1 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 707900331 | Rear Floor | 1 |
| 2 | 707900099 | Support Plate | 2 |
| 4 | 207667056 | Hex. Flange Screw M6 X 70 | 4 |
| 5 | 234062670 | Stainless Steel Flat Washer | 5 |
| 1 | 707900178 | Grille | 1 |
| 1 | 707900180 | Grille | 1 |
| 2 | 250000843 | Torx Truss Screw M6 X 30 | 2 |
| 1 | 250000843 | Torx Truss Screw M6 X 30 | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 250200025 | Washer M5 | 1 |
| 1 | 707900004 | RH Front Floor | 1 |
| 5 | 250000712 | Torx Screw M6 X 20 | 5 |
| 9 | 233261494 | Hex. Elastic Flange Nut M6 | 9 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 3 | 250000724 | Torx Screw M5 X 20 | 3 |
| 12 | 234062410 | Flat Washer 6 mm | 12 |
| 3 | 233251494 | Elastic Flange Nut M5 | 3 |
| 1 | 707900023 | RH Lower Floor | 1 |
| 1 | 707900204 | Deflector | 1 |
| 11 | 293150089 | Tuflok Plastic Rivet | 11 |
| 1 | 707900217 | Hose Support | 1 |
| 1 | 707900083 | Seat Cover | 1 |
| 1 | 707900231 | RH Lower Rear Floor | 1 |
| 4 | 506151252 | Washer | 4 |
| 3 | 707900099 | Support Plate | 3 |
| 6 | 207667056 | Hex. Flange Screw M6 X 70 | 6 |
| 1 | 707900561 | Floor Support LH | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 707900563 | RIGHT FLOOR SUPPORT | 1 |
| 1 | 707900130 | Under Seat Cover | 1 |
| 1 | 707900006 | RH Under Seat Plate | 1 |
| 1 | 707900220 | DEFLECTOR_BODY PANEL REAR L | 1 |
| 2 | 250200040 | Flat Washer | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900219 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 1 | 705003841 | Support Plate | 1 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim | 1 |
| 1 | 715002187 | Central Dashboard Ass'y | 1 |
| 1 | 707900199 | Upper Central Console Ass'y | 1 |
| 2 | 250000762 | Torx Screw M5 X 25 | 2 |
| 1 | 210262050 | Hexagonal Head Screw | 1 |
| 3 | 732610072 | Push Nut | 3 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 1 | 707900104 | GPS Cover And Radio Control | 1 |
| 4 | 250000759 | Torx-Truss Pt K40 X 16 | 4 |
| 1 | 707900369 | BLUE DASH CAP | 1 |
| 1 | 210262550 | Hex. Flange Forming Screw M6 X 25 | 1 |
| 1 | 707900215 | CENTRAL FILTER | 1 |
| 1 | 707900216 | DASHBOARD COVER | 1 |
| 7 | 210262050 | Hexagonal Head Screw | 7 |
| 7 | 250000048 | Panel Nut M6 X 1.0 | 7 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 2 | 707900103 | Handle | 2 |
| 2 | 707900048 | Connector Tube | 2 |
| 1 | 707900046 | Storage Bin | 1 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 3 | 414859400 | CAP | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 707900221 | Luggage Cover Kit | 1 |
| 1 | 707900031 | Latch | 1 |
| 1 | 707900062 | Trim Glove Box | 1 |
| 1 | 707900237 | Front LH Safety Net Include Buckle 715900398 | 1 |
| 1 | 707900238 | Front RH Safety Net Include Buckle 715900398 | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 1 | 707900239 | Rear LH Safety Net | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 234082410 | Flat Washer 8 mm | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 707900240 | Rear RH Safety Net | 1 |
| 1 | 707900088 | Shift Lever Indicator | 1 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 707900044 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900045 | RH Lateral Console Foam | 1 |
| 1 | 707900055 | RH Lateral Console Foam | 1 |
| 1 | 707900056 | RH Lateral Console Foam | 1 |
| 1 | 707900333 | ACOUSTIC FOAM | 1 |
| 1 | 707900120 | Acoustic Foam | 1 |
| 1 | 707900121 | INSULATION_ACOUSTIC | 1 |
| 1 | 707900205 | INSULATION_ACOUSTIC | 1 |
| 1 | 707900206 | ACOUSTIC FOAM | 1 |
| 1 | 707900209 | INSULATION_ACOUSTIC | 1 |
| 1 | 707900210 | ACOUSTIC FOAM | 1 |
| 1 | 707900211 | ACOUSTIC FOAM | 1 |
| 1 | 707900212 | ACOUSTIC FOAM | 1 |
| 1 | 707900163 | Battery Cover | 1 |
| 4 | 705003264 | Grommet | 4 |
| 14 | 250000742 | Torx Screw M5 X 14 | 14 |
| 4 | 250200040 | Flat Washer | 4 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
