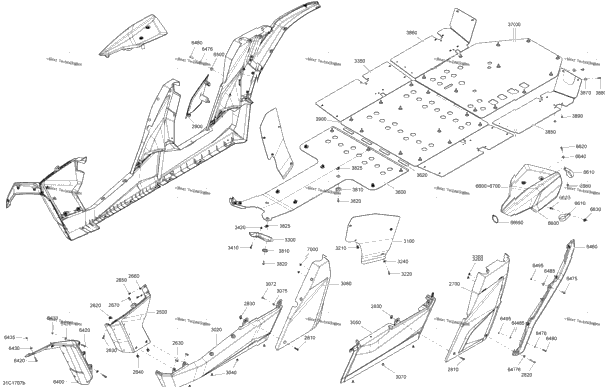

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705007853 | PANEL_BODY FL B-160 Package DPS | 1 |
| 1 | 705007854 | PANEL_BODY FR B-160 Package DPS | 1 |
| 1 | 705009717 | Hyper Silver LH Front Lateral Panel | 1 |
| 1 | 705009718 | Hyper Silver RH Front Lateral Panel | 1 |
| 1 | 705008488 | Timeless Black LH Front Lateral Panel Package XDS XRS | 1 |
| 1 | 705008489 | Timeless Black RH Front Lateral Panel Package XDS XRS | 1 |
| 1 | 705007358 | White, LH Front Lateral Pannel Package XDS STD | 1 |
| 1 | 705007359 | White, RH Front Lateral Pannel Package XDS STD | 1 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 4 | 234051410 | Flat Washer M5 | 4 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 705009851 | PANEL_BODY REAR L B-160 Package DPS | 1 |
| 1 | 705009853 | PANEL_BODY REAR R B-160 Package DPS | 1 |
| 1 | 705009721 | Hyper Silver LH Rear Lateral Panel | 1 |
| 1 | 705009854 | Hyper Silver Side Panel | 1 |
| 1 | 705008509 | Timeless Black RH Rear Lateral Panel Package XDS XRS | 1 |
| 1 | 705008492 | Tmeless Black LH Rear Lateral Panel Package XDS XRS | 1 |
| 1 | 705007362 | White LH Rear Lateral Panel Package XDS STD | 1 |
| 1 | 705008458 | White RH Rear Lateral Panel Package XDS STD | 1 |
| 4 | 250000843 | Torx Truss Screw M6 X 30 | 4 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 5 | 250000048 | Panel Nut M6 X 1.0 | 5 |
| 1 | 705007419 | WHITE RH PANEL COVER Package XDS STD | 1 |
| 1 | 705008510 | Timeless Black RH Panel Cover Package XDS XRS | 1 |
| 1 | 705009856 | CAP_PANEL BODY REAR R B-160 Package DPS | 1 |
| 1 | 705009857 | Hyper Silver Panel Cover | 1 |
| 1 | 705005423 | Black, LH Lower Panel | 1 |
| 1 | 705005424 | Black, RH Lower Panel | 1 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 705005425 | Black, LH Rear Lower Panel | 1 |
| 1 | 705005426 | Black, RH Rear Lower Panel | 1 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 705009859 | PANEL_BODY CTRL L B-160 Package DPS | 1 |
| 1 | 705009860 | PANEL_BODY CTRL R B-160 Package DPS | 1 |
| 1 | 705009861 | Hyper Silver LH Ctr Cage Panel Cover | 1 |
| 1 | 705009862 | Hyper Silver RH Ctr Cage Panel Cover | 1 |
| 1 | 705008511 | Timeless Black LH Ctr Cage Panel Cover Package XDS XRS | 1 |
| 1 | 705008512 | Timeless Black Met RH Center Cage Panel Package XDS XRS | 1 |
| 1 | 705007421 | White LH Center Cage Panel Package XDS STD | 1 |
| 1 | 705007422 | White RH Center Cage Panel Package XDS STD | 1 |
| 2 | 705007827 | Inner Fender | 2 |
| 8 | 250100031 | Push Nut | 8 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 4 | 210261650 | Hex. Flange Screw M6 X 16 | 4 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 705006038 | LH BUMPER SKID CAP Package XMR, DPS, XDS STD | 1 |
| 1 | 705006039 | RH BUMPER SKID CAP Package XMR, DPS, XDS STD | 1 |
| 2 | 705008421 | Side Protector Plate | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 Package XMR, DPS, XDS STD | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 Package XMR, DPS, XDS STD | 2 |
| 1 | 705005798 | Front Skid Plate | 1 |
| 6 | 291001932 | Pad | 6 |
| 1 | 705005480 | Rear Skid Plate Package XMR, DPS | 1 |
| 1 | 705008958 | Skid Plate Package XDS STD, XDS XRS, XDS DPS | 1 |
| 34 | 705007171 | Cup | 34 |
| 34 | 210262050 | Hexagonal Head Screw | 34 |
| 8 | 250000048 | Panel Nut M6 X 1.0 | 8 |
| 1 | 705009444 | LH Lateral Skid Plate Engine 1000TEFI | 1 |
| 2 | 705007038 | RH Lateral Skid Plate | 2 |
| 4 | 250200097 | Flat Washer | 4 |
| 4 | 210262050 | Hexagonal Head Screw | 4 |
| 30 | 293150104 | Pop Rivet 3/16" | 30 |
| 1 | 705009447 | Skid Plate | 1 |
| 1 | 705008988 | LH Front Deflector Package XMR, XDS XRS, XDS DPS | 1 |
| 1 | 705008989 | RH Front Deflector Package XMR, XDS XRS, XDS DPS | 1 |
| 10 | 250000842 | Stainless, Torx Screw M6 X 30 Package XMR, XDS XRS, XDS DPS | 10 |
| 8 | 234062670 | Stainless Steel Flat Washer Package XMR, XDS XRS, XDS DPS | 8 |
| 8 | 232561434 | Elastic Stop Nut M6 Package XMR, XDS XRS, XDS DPS | 8 |
| 1 | 705007637 | LH Rear Deflector Package XMR, XDS XRS, XDS DPS | 1 |
| 1 | 705007638 | RH Rear Deflector Package XMR, XDS XRS, XDS DPS | 1 |
| 8 | 250000712 | Torx Screw M6 X 20 Package XMR, XDS XRS, XDS DPS | 8 |
| 6 | 234062670 | Stainless Steel Flat Washer Package XMR, XDS XRS, XDS DPS | 6 |
| 3 | 250000758 | Torx Screw M6 X 25 Package XMR, XDS XRS, XDS DPS | 3 |
| 11 | 234062670 | Stainless Steel Flat Washer Package XMR, XDS XRS, XDS DPS | 11 |
| 11 | 232561434 | Elastic Stop Nut M6 Package XMR, XDS XRS, XDS DPS | 11 |
| 1 | 250200086 | Flat Washer Package XMR, XDS XRS, XDS DPS | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Package XDS XRS Model Internationnal | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Package XDS DPS Model Internationnal | 1 |
| 1 | 705008450 | Black, Cage Cover Kit Package XMR | 1 |
| 1 | 705008452 | Black, LH Top Center Cage Cover Package XDS DPS and XDS XRS, Model North America | 1 |
| 6 | 705005626 | "P" Bracket, 2" Dia. Package XDS DPS and XDS XRS, Model North America | 6 |
| 6 | 207662054 | Hex. Flange Screw M6 X 20 Package XDS DPS and XDS XRS, Model North America | 6 |
| 2 | 250000048 | Panel Nut M6 X 1.0 Package XDS DPS and XDS XRS, Model North America | 2 |
| 4 | 234062670 | Stainless Steel Flat Washer Package XDS DPS and XDS XRS, Model North America | 4 |
| 2 | 293750008 | Tie Wrap 368 mm Package XDS DPS and XDS XRS, Model North America | 2 |
| 4 | 233261494 | Hex. Elastic Flange Nut M6 Package XDS DPS and XDS XRS, Model North America | 4 |
| 1 | 705008453 | Black, RH Top Center Cage Cover Package XDS DPS and XDS XRS, Model North America | 1 |
