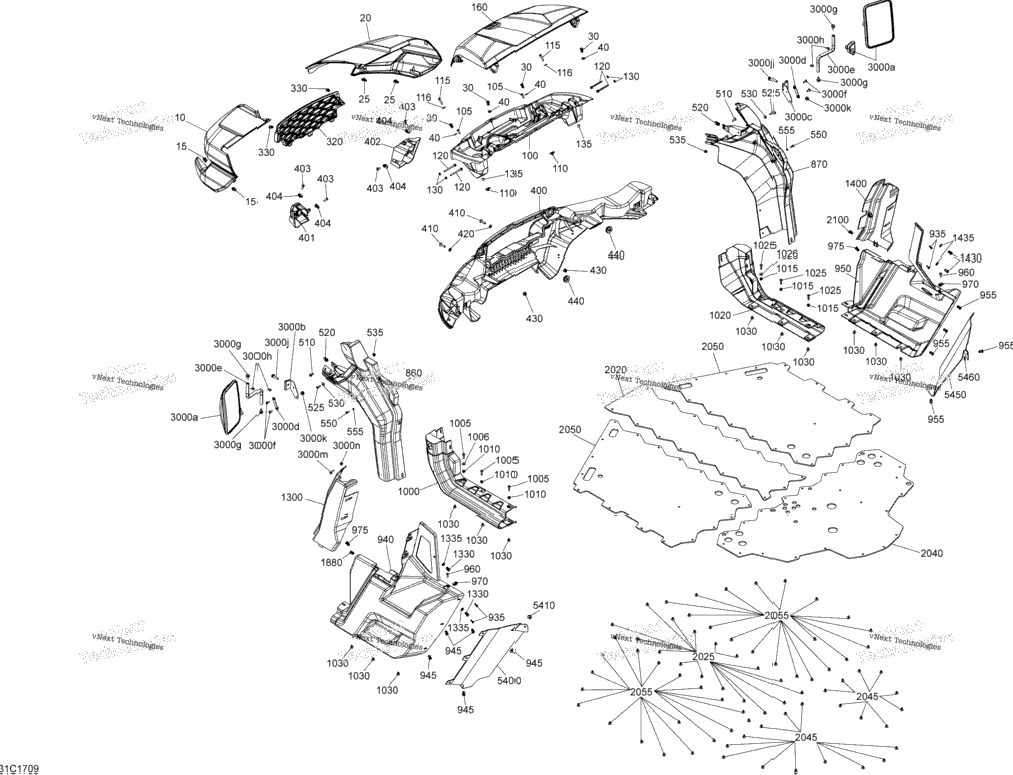

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705011409 | Magnesium LH Front Fender Magnesium Model | 1 |
| 1 | 705012024 | Green LH Front Fender Green Model | 1 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 705011410 | Magnesium RH Front Fender Magnesium Model | 1 |
| 1 | 705012025 | Green RH Front Fender Green Model | 1 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 4 | 503192494 | Washer | 4 |
| 1 | 705011391 | Service Center | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 210263050 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 4 | 207667554 | Hex. Flange Screw M6 X 75 | 4 |
| 4 | 732610072 | Push Nut | 4 |
| 2 | 293900125 | Bushing | 2 |
| 1 | 705011401 | Magnesium Front Service Cover Magnesium Model | 1 |
| 1 | 705012026 | Green Front Service Cover Green Model | 1 |
| 1 | 705009364 | Grid Front Fascia | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 705011576 | Front Facia | 1 |
| 1 | 705012285 | LH Flasher Cap | 1 |
| 1 | 705012286 | RH Flasher Cap | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 2 | 250000886 | Torx Screw M8 X 30 | 2 |
| 2 | 503192494 | Washer | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 705010718 | Grommet | 2 |
| 293450274 | Insert | ||
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 234051670 | Flat Washer M5 | 2 |
| 1 | 705008152 | LH Front Lateral Panel | 1 |
| 1 | 705008153 | RH Front Lateral Panel | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 1 | 705008154 | LH Rear Lateral Panel Order 705012704 panel + 414916600 Nylon Cap | 1 |
| 5 | 293150089 | Tuflok Plastic Rivet | 5 |
| 1 | 705008155 | RH Rear Lateral Panel | 1 |
| 1 | 705008699 | LH Central Lateral Panel | 1 |
| 3 | 250000807 | Torx Truss Screw M6 X 25 | 3 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 705008700 | RH Central Lateral Panel | 1 |
| 12 | 293150104 | Pop Rivet 3/16" | 12 |
| 1 | 715003564 | LH Rear Cage Cover Kit | 1 |
| 1 | 715003565 | RH Rear Cage Cover Kit | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 705009151 | Central Skid Plate | 1 |
| 17 | 293150104 | Pop Rivet 3/16" | 17 |
| 1 | 705011292 | Rear Skid Plate | 1 |
| 21 | 293150104 | Pop Rivet 3/16" | 21 |
| 2 | 705010422 | Lateral Skid Plate Pro Package | 2 |
| 38 | 293150104 | Pop Rivet 3/16" Pro Package | 38 |
| 2 | 705011497 | Mirror | 2 |
| 1 | 705012151 | LH Mirror Support | 1 |
| 1 | 705012152 | RH Mirror Support | 1 |
| 2 | 705010469 | Plate | 2 |
| 2 | 705012671 | Mirror Rod | 2 |
| 4 | 250200178 | Flat Washer | 4 |
| 4 | 250000348 | Torx Truss Screw M6 X 16 | 4 |
| 4 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip | 4 |
| 4 | 293370131 | Snap Ring | 4 |
| 2 | 207683544 | Hex. Flange Screw M8 X 35 | 2 |
| 1 | 250000758 | Torx Screw M6 X 25 | 1 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 1 | 705010426 | LH Rear Deflector | 1 |
| 1 | 292001663 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 705010427 | RH Rear Deflector | 1 |
