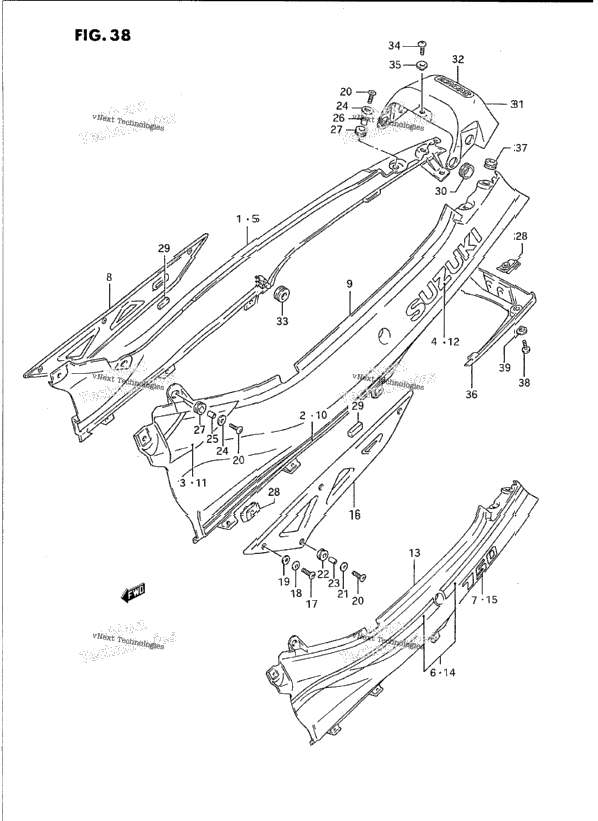

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 47110-20C10-24V | COVER, FRAME RH (BLUE) MODEL K,WITH CLEAR COATING | ||
| 47110-20C11-24V | COVER, FRAME RH (BLUE) MODEL K,NO CLEAR COATING | ||
| 47110-20C10-0FP | COVER, FRAME RH (SILVER) MODEL K,WITH CLEAR COATING | ||
| 47110-20C11-0FP | COVER, FRAME RH (SILVER) MODEL K,NO CLEAR COATING; Includes Item(s) 2 - 4 | ||
| 68135-20C00-3DB | TAPE, RH NO.1 MODEL K,FOR 24V | ||
| 68135-20C00-69L | TAPE, RH NO.1 MODEL K,FOR 0FP | ||
| 68136-20C00-3CW | TAPE, RH NO.2 MODEL K,FOR 24V | ||
| 68136-20C00-3CY | TAPE, RH NO.2 MODEL K,FOR 0FP | ||
| 68111-43400-742 | EMBLEM (SILVER) MODEL K,FOR 24V | ||
| 68111-43400-019 | EMBLEM (BLACK) MODEL K,FOR 0FP | ||
| 47110-20C40-3CH | COVER, FRAME RH MODEL L | ||
| 47110-20C40-3WC | COVER, FRAME LH MODEL L; Includes Item(s) 6 - 7 | ||
| 68130-20C00-3CG | TAPE SET, RH MODEL L,FOR 3CH | ||
| 68130-20C00-3VV | TAPE SET, RH MODEL L,FOR 3WC | ||
| 68131-20C30-742 | EMBLEM, RH (SILVER) MODEL L,FOR 3CH | ||
| 68131-20C30-33J | EMBLEM, RH (BLACK) MODEL L,FOR 3WC | ||
| 47131-20C00 | COVER, FRAME LOWER RH | ||
| 47210-20C10-24V | COVER, FRAME LH (BLUE) MODEL K,WITH CLEAR COATING | ||
| 47210-20C11-24V | COVER, FRAME LH (BLUE) MODEL K,NO CLEAR COATING | ||
| 47210-20C10-0FP | COVER, FRAME LH (SILVER) MODEL K,WITH CLEAR COATING | ||
| 47210-20C11-0FP | COVER, FRAME LH (SILVER) MODEL K,NO CLEAR COATING; Includes Item(s) 10 - 12 | ||
| 68145-20C00-3DB | TAPE, LH NO.1 MODEL K,FOR 24V | ||
| 68145-20C00-69L | TAPE, LH NO.1 MODEL K,FOR 0FP | ||
| 68146-20C00-3CW | TAPE, LH NO.2 MODEL K,FOR 24V | ||
| 68146-20C00-3CY | TAPE, LH NO.2 MODEL K,FOR 0FP | ||
| 47210-20C40-3CH | COVER, FRAME LH MODEL L | ||
| 47210-20C40-3WC | COVER, FRAME LH MODEL L; Includes Item(s) 14 - 15 | ||
| 68140-20C00-3CG | TAPE SET, LH MODEL L,FOR 3CH | ||
| 68140-20C00-3VV | TAPE SET, LH MODEL L,FOR 3WC | ||
| 68131-20C30-742 | EMBLEM, LH (SILVER) MODEL L,FOR 3CH | ||
| 68131-20C30-33J | EMBLEM, LH (BLACK) MODEL L,FOR 3WC | ||
| 47231-20C00 | COVER, FRAME LOWER LH | ||
| 09120-06005 | SCREW, LOWER COVER NO.1 | ||
| 6 | 09160-06003 | WASHER | 6 |
| 6 | 09161-05016 | CUSHION | 6 |
| 6 | 09139-06030 | SCREW, LOWER COVER NO.2 | 6 |
| 2 | 09160-06054 | WASHER | 2 |
| 2 | 09320-08013 | CUSHION | 2 |
| 2 | 09180-06092 | SPACER | 2 |
| 4 | 09160-06057 | WASHER | 4 |
| 2 | 09180-06011 | SPACER, FRONT | 2 |
| 2 | 09180-06038 | SPACER, REAR | 2 |
| 4 | 09320-09016 | CUSHION | 4 |
| 10 | 47153-19C01 | PLATE, FITTING | 10 |
| 47161-20C00 | CUSHION, LOWER | ||
| 4 | 09308-16006 | CUSHION, PILLION RIDER | 4 |
| 47310-20C00-24V | COVER, FRAME CENTER (BLUE) MODEL K,WITH CLEAR COATING | ||
| 47310-20C01-24V | COVER, FRAME CENTER (BLUE) MODEL K,NO CLEAR COATING | ||
| 47310-20C00-0FP | COVER, FRAME CENTER (SILVER) MODEL K,WITH CLEAR COATING | ||
| 47310-20C01-0FP | COVER, FRAME CENTER (SILVER) MODEL K,NO CLEAR COATING | ||
| 47310-20C01-20H | COVER, FRAME CENTER (SILVER) MODEL L | ||
| 47310-20C01-33J | COVER, FRAME CENTER (BLACK) MODEL L; Includes Item(s) 32 - 32 | ||
| 68271-34A00-742 | EMBLEM (SILVER) FOR 24V,33J | ||
| 1 | 68271-34A00-019 | EMBLEM (BLACK) FOR 0FP,20H | 1 |
| 2 | 09320-08018 | CUSHION | 2 |
| 1 | 02142-06103 | SCREW, CENTER COVER | 1 |
| 1 | 09169-06037 | WASHER | 1 |
| 47321-20C00 | COVER, FRAME REAR | ||
| 2 | 94433-26B00 | CUSHION, REAR BOX | 2 |
| 2 | 02142-06164 | SCREW, REAR COVER | 2 |
| 2 | 09169-06037 | WASHER | 2 |
| SPECIAL NOTE | COLOR : 3CH = 33J(BLACK), |
