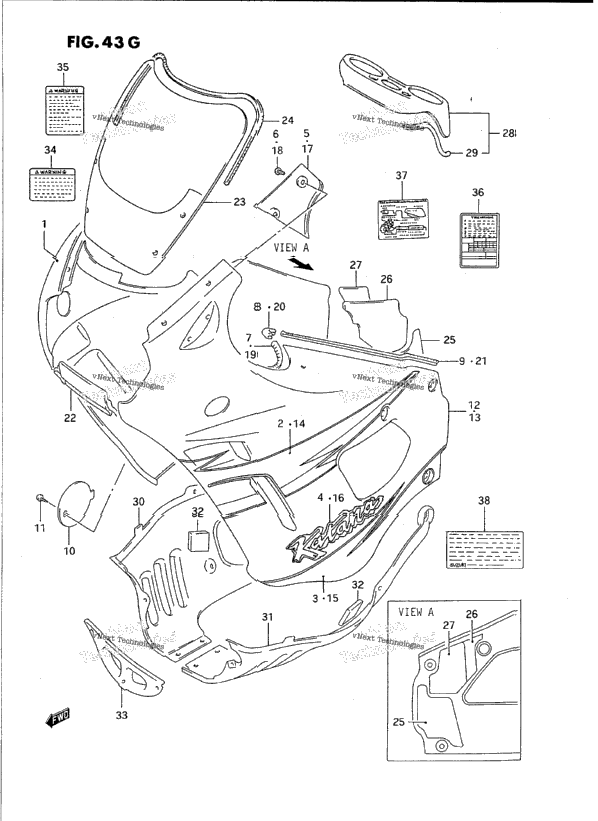

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 94401-21CH0-33J | COVER ASSY, COWLING RH (BLACK | ||
| 94401-21CH0-Y98 | COVER ASSY, COWLING RH (GREEN Includes Item(s) 2 - 11 | ||
| 68685-21C10-Z57 | TAPE, SIDE UPPER RH FOR 33J | ||
| 68685-21C10-Z59 | TAPE, SIDE UPPER RH FOR Y98 | ||
| 68686-21C20-Z58 | TAPE, SIDE LOWER RH FOR 33J | ||
| 68686-21C20-Z61 | TAPE, SIDE LOWER RH FOR Y98 | ||
| 68681-21C20-E7G | EMBLEM FOR 33J | ||
| 68681-21C20-E7H | EMBLEM FOR Y98 | ||
| 94433-19C01-33J | COVER, METER SIDE RH (BLACK) | ||
| 94433-19C01-Y98 | COVER, METER SIDE RH (GREEN) | ||
| 2 | 03541-04103 | SCREW | 2 |
| 94631-49310 | MOLDING, FRONT L:1000->300 | ||
| 94438-19C00 | JOINT | ||
| 1 | 94635-19C00 | MOLDING, REAR | 1 |
| 94435-19C01-33J | LID, OIL (BLACK) | ||
| 94435-19C01-Y98 | LID, OIL (GREEN) | ||
| 1 | 09139-06030 | SCREW | 1 |
| 94402-21CH0-33J | COVER ASSY, COWLING LH (BLACK | ||
| 94402-21CH0-Y98 | COVER ASSY, COWLING LH (GREEN | ||
| 94402-21CJ0-33J | COVER ASSY, COWLING LH (BLACK CALIFORNIA ONLY | ||
| 94402-21CJ0-Y98 | COVER ASSY, COWLING LH (GREEN CALIFORNIA ONLY; Includes Item(s) 14 - 15 | ||
| 68695-21C10-Z57 | TAPE, SIDE UPPER LH FOR 33J | ||
| 68695-21C10-Z59 | TAPE, SIDE UPPER LH FOR Y98 | ||
| 68696-21C20-Z58 | TAPE, SIDE LOWER LH FOR 33J | ||
| 68696-21C20-Z61 | TAPE, SIDE LOWER LH FOR Y98 | ||
| 68696-21C30-Z58 | TAPE, SIDE LOWER LH CALIFORNIA ONLY,FOR 33J | ||
| 68696-21C30-Z61 | TAPE, SIDE LOWER LH CALIFORNIA ONLY,FOR Y98 | ||
| 68681-21C20-E7G | EMBLEM FOR 33J; Includes Item(s) 16 - 21 | ||
| 94443-19C01-33J | COVER, METER SIDE LH (BLACK) | ||
| 94443-19C01-Y98 | COVER, METER SIDE LH (GREEN) | ||
| 94421-19C01-33J | PANEL, CENTER (BLACK) | ||
| 94421-19C01-Y98 | PANEL, CENTER (GREEN) | ||
| 94610-20C60 | SCREEN, WINDOW | ||
| 94631-18D01 | MOLDING L:800->700 | ||
| 94574-20C00 | SHEET, BALANCER NO.2 CALIFORNIA ONLY | ||
| 94584-20C10 | SHEET, BALANCER NO.2 LH CALIFORNIA ONLY | ||
| 94573-20C00 | BALANCER SHEET,RH CALIFORNIA ONLY | ||
| 94583-20C00 | BALANCER SHEET,LH CALIFORNIA ONLY | ||
| 94576-20C00 | CUSHION,RH | ||
| 94586-20C00 | CUSHION,LH | ||
| 94420-20C02 | COVER, METER Includes Item(s) 29 | ||
| 94635-20C00 | MOLDING | ||
| 94471-19C00-1TU | COVER, UNDER RH (GRAY) FOR 33J | ||
| 94471-19C00-33J | COVER, UNDER RH (BLACK) FOR Y98 | ||
| 94481-19C00-1TU | COVER, UNDER LH (GRAY) FOR 33J | ||
| 94481-19C00-33J | COVER, UNDER LH (BLACK) FOR Y98 | ||
| 2 | 94475-48B10 | CUSHION | 2 |
| 94475-19C01 | COVER, FRONT | ||
| 1 | 68319-40C00 | LABEL, WARNING SAFETY | 1 |
| 1 | 68612-48B00 | LABEL, WARNING SCREEN | 1 |
| 68332-20C10 | LABEL, TIRE AIR PRESSURE | ||
| 68387-17C00 | LABEL, VACUUM HOSE ROUTING CALIFORNIA ONLY | ||
| 1 | 68353-26E01 | LABEL, MANUAL NOTICE | 1 |
| SPECIAL NOTE | REFER TO FIG.44 (I-12) FOR |
