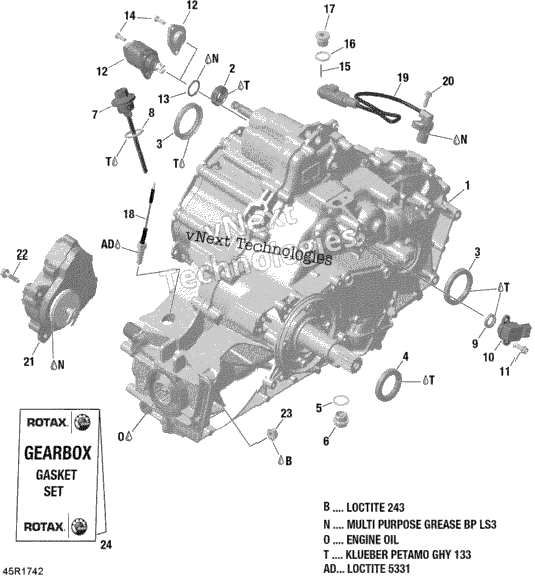

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420686458 | Gearbox Ass'y With Lockable Rear Differential, Built before Sept 2016 | 1 |
| 1 | 420686750 | Gearbox Ass'y With Lockable Rear Differential, Built Sept 2016 and Up | 1 |
| 1 | 421000722 | REBUILT - DEFENDER GEAR BOX With Lockable Rear Differential | 1 |
| 1 | 420686459 | Gearbox Ass'y Without Lockable Rear Differential, Built Before Sept 2016 | 1 |
| 1 | 421000728 | REBUILT - GEAR BOX Without Lockable Rear Differential, Built Before Sept 2016 | 1 |
| 1 | 420686755 | Gearbox Ass'y Without Lockable Rear Differential, Built Sept 2016 and Up | 1 |
| 1 | 420250452 | Oil Seal | 1 |
| 1 | 420230137 | Oil Seal | 1 |
| 1 | 420950089 | Oil Seal | 1 |
| 1 | 420552280 | Crush Washer | 1 |
| 1 | 420840277 | Drain Plug M18 X 1.5 | 1 |
| 1 | 420256806 | Oil Dipstick | 1 |
| 1 | 420631640 | O-Ring | 1 |
| 0 | 420931802 | Oil Seal | 0 |
| 1 | 420666850 | Angle Rotation Sensor | 1 |
| 1 | 420440162 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420265840 | Cover With Lockable Rear Differential | 1 |
| 1 | 420427560 | Cover Without Lockable Rear Differential | 1 |
| 2 | 420450450 | O-Ring not available separately from the gearbox | 2 |
| 2 | 420240150 | Allen Screw M5 X 14 not available separately from the gearbox | 2 |
| 1 | 420932840 | Needle Pin With Lockable Rear Differential | 1 |
| 1 | 420430622 | O-Ring | 1 |
| 1 | 420240234 | Plug Screw M16 X 1.5 | 1 |
| 1 | 420640192 | 3 Position Switch | 1 |
| 1 | 420265621 | Speed Sensor | 1 |
| 1 | 415129174 | Actuator Ass'y | 1 |
| 1 | 293300117 | O-Ring | 1 |
| 1 | 415129175 | Shifting Fork | 1 |
| 1 | 293370042 | Circlip | 1 |
| 3 | 420441951 | Collar Screw M6 x 25 | 3 |
| 4 | 420842619 | Hex. Nut M8 | 4 |
| XXXX | Not Available As Spare Part - Gasket Set, Gearbox |
