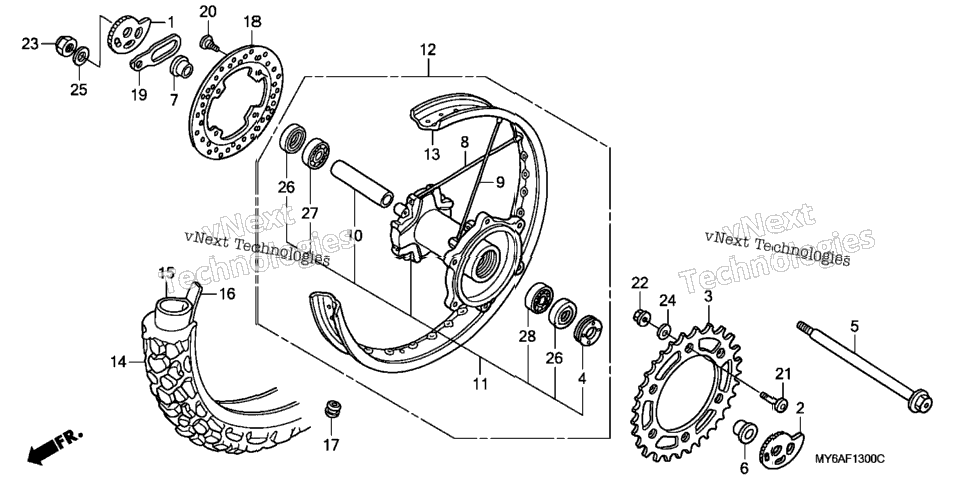

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 40544-MN1-670 | ADJUSTER, R. CHAIN | 1 |
| 1 | 40545-MY6-670 | ADJUSTER, L. CHAIN | 1 |
| 1 | 41201-MY6-700 | SPROCKET, FINAL DRIVEN (45T) | 1 |
| 1 | 41231-429-000 | RETAINER, BEARING | 1 |
| 1 | 42301-MY6-670 | AXLE, RR. WHEEL | 1 |
| 1 | 42312-MY6-670 | COLLAR, RR. WHEEL SIDE | 1 |
| 1 | 42313-KZ1-670 | COLLAR, RR. WHEEL SIDE | 1 |
| 16 | 42611-MY6-405 | SPOKE SET B, RR. (R. SIDE) | 16 |
| 16 | 42610-MY6-405 | SPOKE SET A, RR. (L. SIDE) | 16 |
| 1 | 42620-KAE-000 | COLLAR, RR. AXLE DISTANCE | 1 |
| 1 | 42635-MY6-880 | HUB SUB-ASSY., RR. WHEEL | 1 |
| 1 | 42650-MY6-316 | WHEEL SUB-ASSY., RR. | 1 |
| 1 | 42650-MY6-326 | WHEEL SUB-ASSY., RR. | 1 |
| 1 | 42701-MY6-672 | RIM, RR. WHEEL (DAIDO) | 1 |
| 1 | 42711-MY6-675 | TIRE, RR. (4.60-18) (63S) (DUNLOP) | 1 |
| 1 | 42711-MY6-676 | TIRE, RR. (4.60-18) (63S) (BS) | 1 |
| 1 | 42711-MY6-677 | TIRE, RR. | 1 |
| 1 | 08400-34001 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-KS7-641 | TUBE, TIRE (110/100-18) (DUNLOP) | 1 |
| 1 | 42712-KT1-671 | TUBE, TIRE (100/100-18) (INOUE) TUBE, TIRE (5.10-18) (BS) | 1 |
| 1 | 42712-KT1-672 | TUBE, TIRE (120/80-18) (IRC) | 1 |
| 1 | 42712-KT1-673 | TUBE, TIRE | 1 |
| 1 | 42712-KV6-009 | TUBE, TIRE (4.60-18) (YOKOHAMA) | 1 |
| 1 | 42712-300-000 | TUBE, TIRE (4.00-18) | 1 |
| 42712-300-003 | TUBE, TIRE (4.00-18) (BS) | ||
| 1 | 42712-300-004 | TUBE, TIRE (3.75/4.00-18) (DUNLOP) | 1 |
| 1 | 42712-310-004 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-312-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-340-006 | TUBE, TIRE (4.00-18) (NITTO) | 1 |
| 1 | 42712-374-003 | TUBE, TIRE (3.75-18) (BS) | 1 |
| 1 | 42712-400-003 | TUBE, TIRE (4.10-18) (BS) | 1 |
| 1 | 42712-401-681 | TUBE, TIRE (3.25/3.50-18) (4.10-18) (DUNLOP) | 1 |
| 1 | 42712-425-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42712-428-009 | TUBE, TIRE (4.60-18) (BS) | 1 |
| 1 | 42712-434-003 | TUBE, TIRE (4.60-18) (BS) | 1 |
| 1 | 42712-435-003 | TUBE, TIRE (4.00-18) (BS) | 1 |
| 1 | 42713-300-004 | FLAP, TIRE (1.85/2.15-18) (DUNLOP) | 1 |
| 1 | 42713-304-003 | FLAP, TIRE (1.40/1.60-18) (BS) | 1 |
| 1 | 42717-329-000 | CAP, RIM HOLE | 1 |
| 1 | 43251-KEA-000 | DISK, RR. BRAKE | 1 |
| 1 | 43251-MBB-D41 | DISK, RR. BRAKE | 1 |
| 1 | 43251-MEE-000 | DISK, RR. BRAKE | 1 |
| 1 | 43251-MV4-000 | DISK, RR. BRAKE | 1 |
| 1 | 52162-KF0-000 | STOPPER, RR. AXLE | 1 |
| 4 | 90105-MK5-010 | BOLT, DISK (8X22) | 4 |
| 6 | 90125-MN1-671 | BOLT, SPROCKET FIXING | 6 |
| 6 | 90304-KAE-871 | NUT, U (10MM) | 6 |
| 1 | 90305-GW2-711 | NUT, U (16MM) | 1 |
| 6 | 90438-463-000 | WASHER, SPECIAL (11X21X2.3) | 6 |
| 1 | 90559-469-000 | WASHER, PLAIN (16MM) | 1 |
| 2 | 91216-729-921 | OIL SEAL (25X40X7) | 2 |
| 2 | 91252-428-000 | OIL SEAL (25X40X7) | 2 |
| 1 | 96140-62030-10 | BEARING, RADIAL BALL (6203U) | 1 |
| 1 | 96140-63030-10 | BEARING, RADIAL BALL (6303U) BEARING, RADIAL BALL (6303) | 1 |
